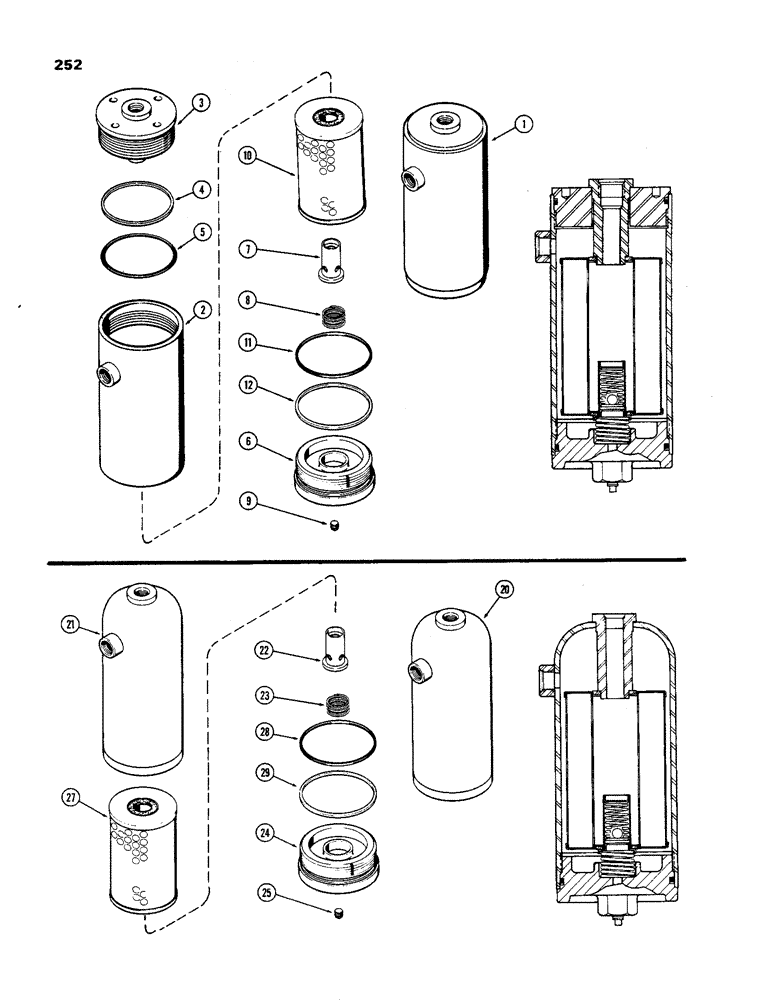

Запчасти Case IH 970 (252) - G100018 OIL FILTER (05) - STEERING

1

G100018

SPARE PART

FILTER ASSEMBLY - (25 micron), Includes: Ref. 2 - 12

1шт.

2

G100012

TUBE,4.17" ID x 9.890" L

ASSEMBLY - filter

1шт.

3

G100017

CAP

- end, top

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

6

A60765

CAP

- end, bottom

1шт.

7

D37207

VALVE

ASSEMBLY - relief

1шт.

8

D31212

SPRING

- retaining

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

20

G102355

FILTER ASSY

FILTER ASSEMBLY - (25 Micron), G102355 oil filter, Includes: Ref. 21 - 29

1шт.

21

G32018

HYD TUBE,7.89" L

TUBE ASSEMBLY - filter, G102355 oil

1шт.

22

D37207

VALVE

ASSEMBLY - relief, G102355 oil filter

1шт.

23

D31212

SPRING

- retaining, G102355 oil filter

1шт.

24

A60765

CAP

- end, G102355 oil filter

1шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd., G102355 oil filter

1шт.

A65854

HYDRAULIC OIL FILTER

ELEMENT KIT, G102355 oil filter, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order Kit A65854), G102355

1шт.

28

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8", G102355 oil filter

1шт.

29

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64" Teflon, G102355 Oil filter

1шт.
