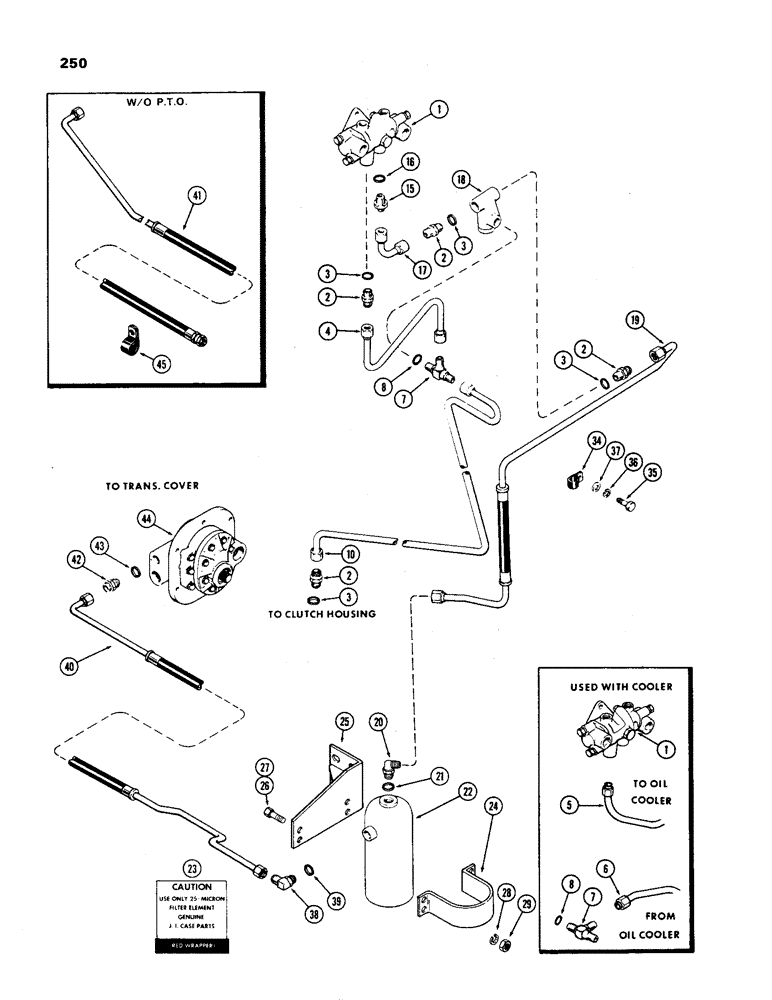

Запчасти Case IH 970 (250) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES W/ MECHANICAL SHIFT USED PRIOR TO TRAC SN 8693001 (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering, See Figure 276

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - valve to tube, Incl. Ref 3

4шт.

4

A59928

TUBE - return, valve to tee (w/o cooler)

1шт.

5

A60402

TUBE - cooler to valve, upper (w/ cooler)

1шт.

6

A60403

TUBE - cooler to tee, lower (w/ cooler)

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - steering relief valve, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32"

1шт.

10

A60976

TUBE - tee to clutch housing

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSEMBLY - valve to tube, Includes: Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

A59904

TUBE

- pressure, relief valve to steering valve

1шт.

18

A59905

VALVE

ASSEMBLY - steering, relief, See Figure 254

1шт.

19

A62368

TUBE ASSY.

TUBE - fiter to relief valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, oil filter exit port, Includes: Ref. 21

1шт.

22

REF

INSTRUCTION

FILTER ASSEMBLY - 25 micron, See Figure 252

1шт.

23

321-1763

DECAL

- oil filter, 25 micron

1шт.

24

A60857

CLAMP - filter to bracket (Order A65004)

1шт.

25

A61781

BRACKET

- filter mounting

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

34

NLS

NO LONGER SERVICED

- tube

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, tube to filter, Includes: Ref. 39

1шт.

40

A62371

TUBE ASSY.

TUBE - pump to filter (w/ PTO)

1шт.

41

A62123

TUBE - pump to filter (w/o PTO)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy - pump to tube, Incl. Ref 43 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

44

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic dual (Order from Figure 486)

1шт.

45

49836

CLAMP

- tube (w/o PTO)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.
