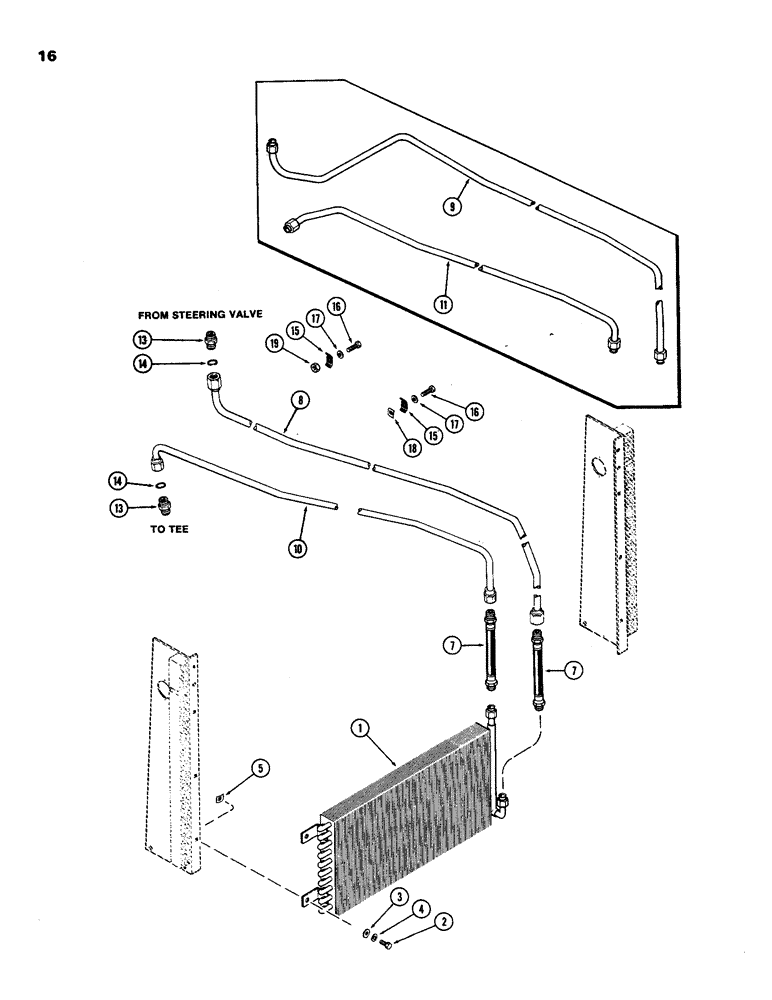

Запчасти Case IH 970 (016) - OIL COOLER, (401B) DIESEL AND (377B) SPARK IGNITION ENGINES (02) - ENGINE

1

A147527

COOLER

- oil (Replaces A60398 and A67088)

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

131-911

FLANGE NUT,Flg, 5/16"-18

NUT - 1/4" Tinnerman

4шт.

7

A145874

HOSE,0.50" ID x 8.50", SAE 100R1

0.50" ID x 8.50" - Tube to cooler (Replaces A60399)

2шт.

8

A64521

TUBE

- oil cooler, upper (1st used trac. ser. no. 8693001)

1шт.

9

A60402

TUBE - oil cooler, upper (used prior to trac. ser. no. 8693001)

1шт.

10

A64522

TUBE

- oil cooler, lower (1st used trac ser. no. 8693001)

1шт.

11

A60403

TUBE - oil cooler, lower (used prior to trac. ser. no. 8693001)

2шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube, 3/4" P.T., Incl. Ref 14

2шт.

15

A60404

CLIP

- tube mounting

2шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

17

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

18

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

1шт.

19

25-104

NUT,1/4"-20, G5

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.
