Запчасти Case IH 970 (234) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE AXLE OR DUAL FRONT WHEELS PRIOR TO TRACTOR SN 8693001 (05) - STEERING

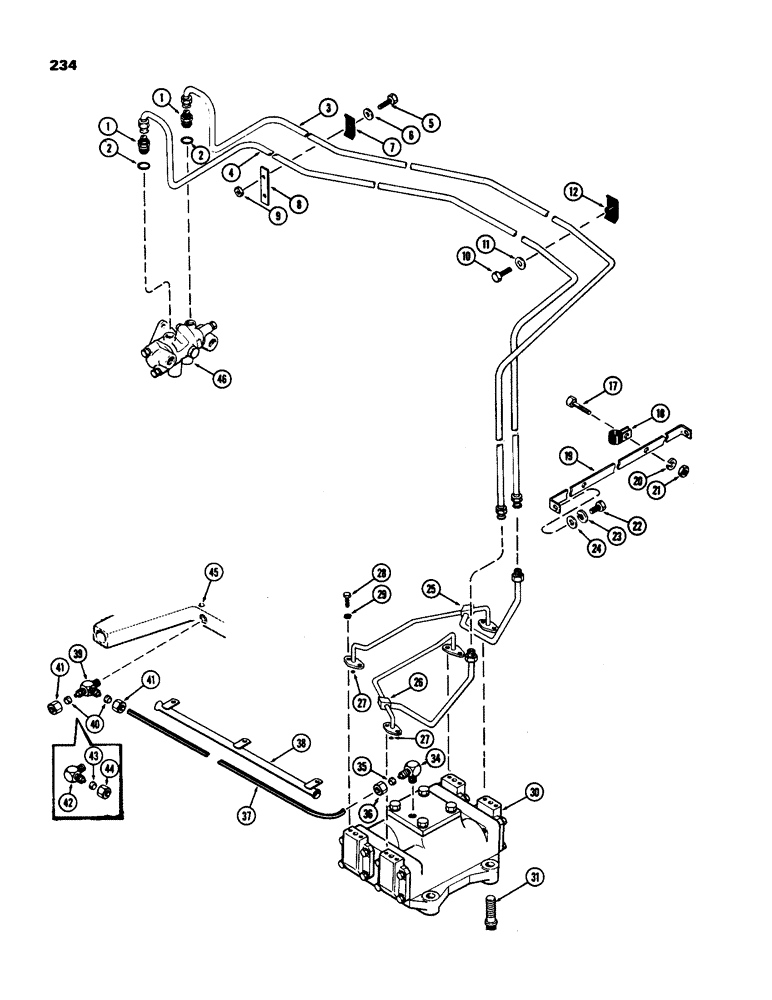

Схема запчастей Case IH 970 - (234) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE AXLE OR DUAL FRONT WHEELS PRIOR TO TRACTOR SN 8693001 (05) - STEERING
2
2
8
29
3
19
35
43
42
38
22
9
24
39
11
41
6
12
36
25
27
40
41
10
20
30
21
4
23
27
44
28
1
37
1
45
17
34
7
5
46
28
18
31

Артикул

Название

Примечание

Количество

1

A60705

CONNECTOR - valve to acutator tube

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

3

A61732

TUBE

- valve to acutator, upper

1шт.

4

A61733

TUBE - valve to acutator, lower

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

6

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

7

A60224

CLAMP

CLIP - tube

1шт.

8

A60223

PLATE - clip

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

12

A60225

CLAMP - tube

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

18

NLS

NO LONGER SERVICED

-, Serial Range: tube-support

2шт.

19

A61087

SUPPORT

-, Serial Range: tube-grille

1шт.

20

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- 1/8 x 5/16 x 1/32"

2шт.

25

A60229

TUBE

- steering crossover, LH

1шт.

26

A60228

TUBE - steering crossover, RH

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32"

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

REF

INSTRUCTION

ACTUATOR ASSEMBLY - steering, See Figure 274

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

- 3/4 x 2-1/2" NC Ferry cap

4шт.

34

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSEMBLY - actuator pressure relief, Includes: Ref. 35 & 36

1шт.

35

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

36

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

37

A60771

TUBE

- actuator to transmission cover (Nylon)

1шт.

38

A59930

TUBE

- protective guide

1шт.

39

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSEMBLY - reducing, sump return (with power brakes), Includes: Ref. 40 & 41

1шт.

40

222-5186

SLEEVE,3/8" Tube

- nylon

2шт.

41

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

2шт.

42

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSEMBLY - sump return (with hydraulic brakes), Includes: Ref. 43 & 44

1шт.

43

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

44

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

45

REF

INSTRUCTION

COVER - transmission top front, See Figures 340 and 346

1шт.

46

REF

INSTRUCTION

VALVE ASSEMBLY - steering, See Figure 276

1шт.

Выбрано товаров: 40
