Запчасти Case IH 970 (232) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE AXLE OR DUAL FRONT WHEELS PRIOR TO TRACTOR SN 8693001 (05) - STEERING

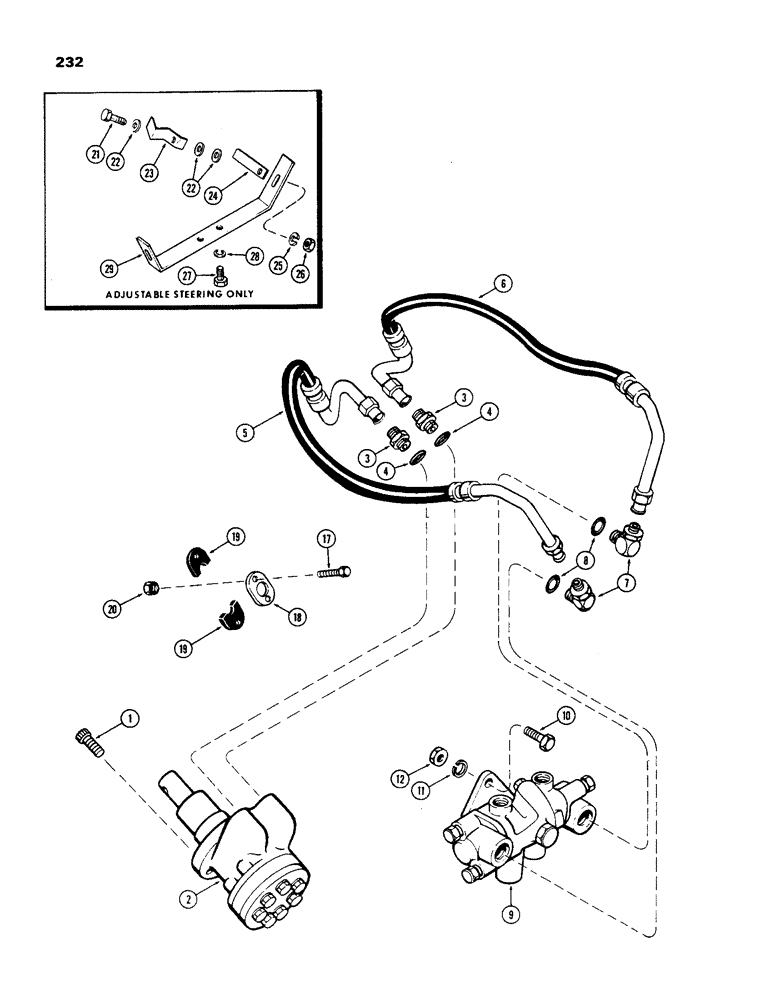

Схема запчастей Case IH 970 - (232) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE AXLE OR DUAL FRONT WHEELS PRIOR TO TRACTOR SN 8693001 (05) - STEERING
26
8
6
10
2
23
3
12
27
18
11
7
4
19
5
3
20
22
21
1
28
4
19
29
9
17
22
24
25

Артикул

Название

Примечание

Количество

1

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - 5/16 x 1" NC Ferry cap

4шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - hand, steering, See Figure 262

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - pump to hose, Incl. Ref 4

2шт.

5

A60200

HYD TUBE

HOSE - pump to valve, RH

1шт.

6

A60201

HYD TUBE

HOSE - pump to valve, LH

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - hose to valve, Includes: Ref. 8

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, See Figure 276

1шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

18

A60206

PLATE - hose clamp

2шт.

19

A60205

CLAMP - hose (Neoprene)

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NC hex

2шт.

22

195-22

WASHER

- 3/8 x 3/4 x 1/16"

6шт.

23

A60203

CLAMP - tilt steering hoses

2шт.

24

A60204

PLATE - hose clamp

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

2шт.

27

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

A59245

BAR - hose clamp mounting

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 25
