Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

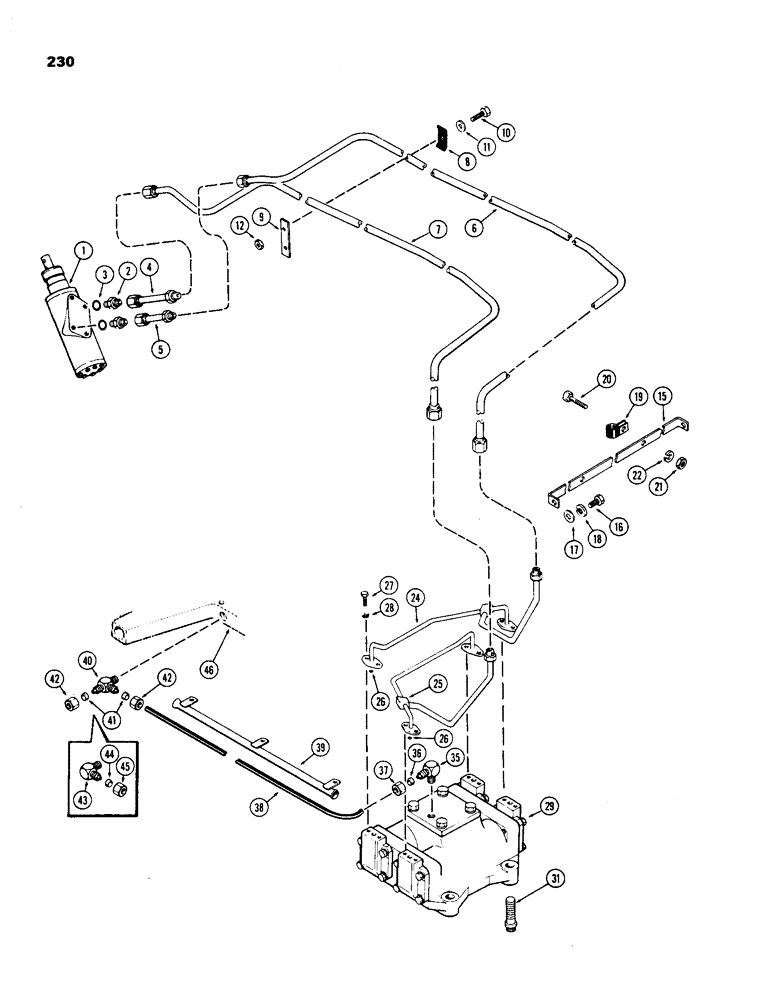

PUMP ASSEMBLY - steering, See Figures 256 and 258
1шт.
2
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
CONNECTOR ASSEMBLY - tube to pump (9/16"-18 x 3/4"-16), Includes: Ref. 3
4шт.
3
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
4
A135522
TUBE - LH turn (6-1/2" long)
1шт.
5
A64501
TUBE
- RH turn (5" long)
1шт.
6
A64516
TUBE
- RH turn, Serial Range: pump-crossover
1шт.
7
A64905
TUBE - LH turn, Serial Range: pump-crossover
1шт.
8
A60223
PLATE - mounting, tube clip
1шт.
9
A60404
CLIP
- tube
2шт.
10
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
2шт.
11
195-18
WASHER,1/4"
- 9/32 x 5/8 x 1/16"
2шт.
12
25-104
NUT,1/4"-20, G5
2шт.
15
A61087
SUPPORT
- clamp, Serial Range: tube-grille
1шт.
16
113-151
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd
- 5/16 x 3/4" NC hex
2шт.
17
195-128
WASHER,5/16"
- 3/8 x 1-1/8 x 5/64"
2шт.
18
92-5
LOCK WASHER,5/16"
2шт.
19
49838
CLAMP
- tube
2шт.
20
113-29
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
- 1/4 x 3/4 NC hex
2шт.
21
15-104
NUT - 1/4" NC hex
2шт.
22
195-127
WASHER - 5/16 x 3/4 x 1/16"
2шт.
24
A64514
TUBE
ASSEMBLY - crossover, RH turn
1шт.
25
A64515
TUBE
ASSEMBLY - crossover, LH turn
1шт.
26
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
- tube flange (1/2 x 11/16 x 3/32")
4шт.
27
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
8шт.
28
92-5
LOCK WASHER,5/16"
8шт.
29
REF
INSTRUCTION
ACTUATOR ASSEMBLY - (with dual front wheel), See Figure 266
1шт.
31
A62066
SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel
- actuator to support (3/4 x 2-1/2" NC Ferry)
4шт.
35
222-5111
ELBOW,9/16"-24 x 1/8" NPTF
ASSEMBLY - 90 degree, 3/8" OD x 1/4" PT, Includes: Ref. 36 & 37
1шт.
36
222-5186
SLEEVE,3/8" Tube
- nylon, 3/8" Tube
1шт.
37
222-5181
NUT,9/16"-24
NUT - 3/8" tube
1шт.
38
A60723
BASE PLATE
TUBE - nylon, Serial Range: actuator-transmission
1шт.
39
A59925
TUBE
- conduit
1шт.
40
222-5120
TEE,7/16"-24 x 1/4" NPT Run
ASSEMBLY - reducing (3/8 OD x 1/4" PT) (with power brakes), Includes: Ref. 41 & 42
1шт.
41
222-5186
SLEEVE,3/8" Tube
- nylon, 3/8" Tube
2шт.
42
222-5181
NUT,9/16"-24
NUT - 3/8" tube
2шт.
43
222-5111
ELBOW,9/16"-24 x 1/8" NPTF
ASSEMBLY - 3/8" OD x 1/4" PT (with hydraulic brakes), Includes: Ref. 44 & 45
1шт.
44
222-5186
SLEEVE,3/8" Tube
- nylon, 3/8" Tube
1шт.
45
222-5181
NUT,9/16"-24
NUT - 3/8" tube
1шт.
46
REF
INSTRUCTION
COVER - transmission, See Figures 340 and 346
1шт.
