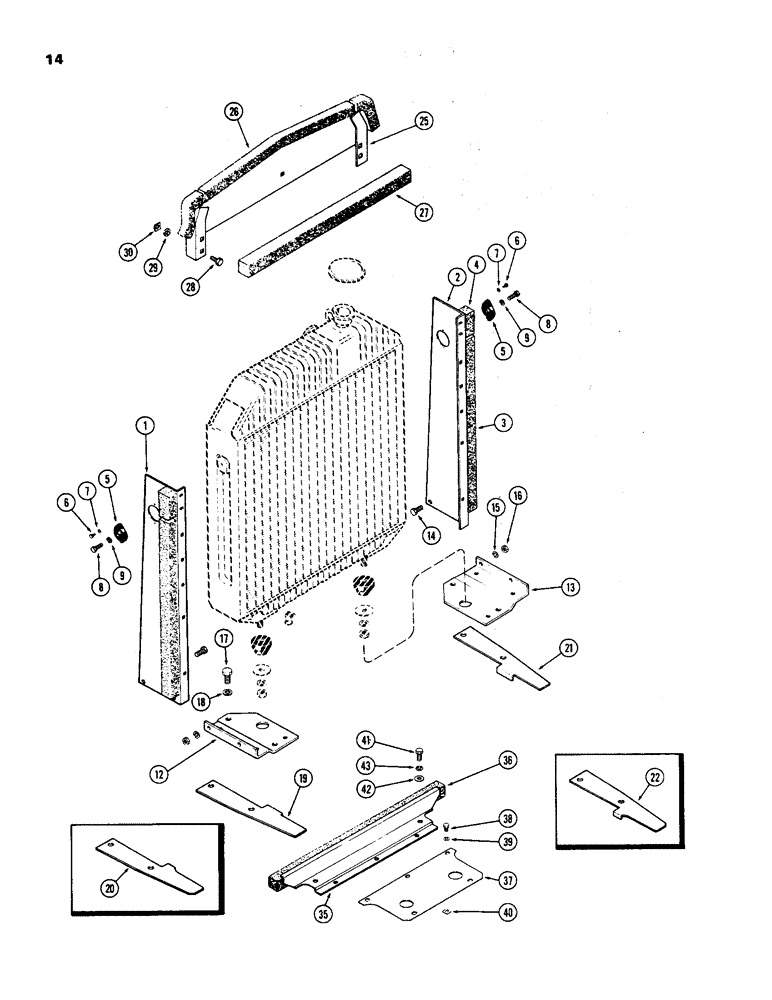

Запчасти Case IH 970 (014) - RADIATOR BAFFLES, (401B) DIESEL AND (377B) SPARK IGNITION ENGINES (02) - ENGINE

1

A61718

SUPPORT ASSEMBLY - radiator side, RH, Includes: Ref. 3 & 4

1шт.

2

A61719

SUPPORT

ASSEMBLY - radiator side, LH, Includes: Ref. 3 & 4

1шт.

3

A59873

SEAL

- radiator side, lower

1шт.

To be attached with adhesive 345-22.

1шт.

4

A59890

SEAL

- radiator side, upper

1шт.

To be attached with adhesive 345-22.

1шт.

5

A59862

ANCHOR

MOUNT - radiator support

2шт.

6

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6-32 x 3/8" rd. hd

4шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

A59178

PLATE - radiator support, RH

1шт.

13

A59179

PLATE - radiator support, LH

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

17

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

A61298

BAFFLE

- lower, RH (1st used trac. ser. no. 8693001)

1шт.

20

A61662

BAFFLE

- lower, RH (used prior to trac. ser. no. 8693001)

1шт.

21

A61299

BAFFLE

- lower, LH (1st used trac. ser. no. 8693001)

1шт.

22

A61663

BAFFLE

- lower, L.H (used prior to trac. ser. no. 8693001)

1шт.

25

A61726

BAFFLE ASSEMBLY - radiator front, Includes: Ref. 26 & 27

1шт.

26

A61727

SEAL

- radiator upper

1шт.

To be attached with adhesive 345-22.

1шт.

27

A59877

SEAL

- radiator upper core

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

131-611

NUT,Ret, 1/4"-20

- 1/4" NC Tinnerman

4шт.

35

A59879

BAFFLE ASSEMBLY - radiator lower, rear half

1шт.

36

A59880

SEAL

- radiator bottom

1шт.

To be attached with adhesive 345-22.

1шт.

37

A59881

BAFFLE - radiator lower, front half

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

40

131-610

SPRING NUT,U, Ret, 1/4"-20

Tinnerman U, Ret, 1/4"-20

3шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

43

92-6

LOCK WASHER,3/8"

4шт.
