Запчасти Case IH 970 (220) - ADJUSTABLE STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

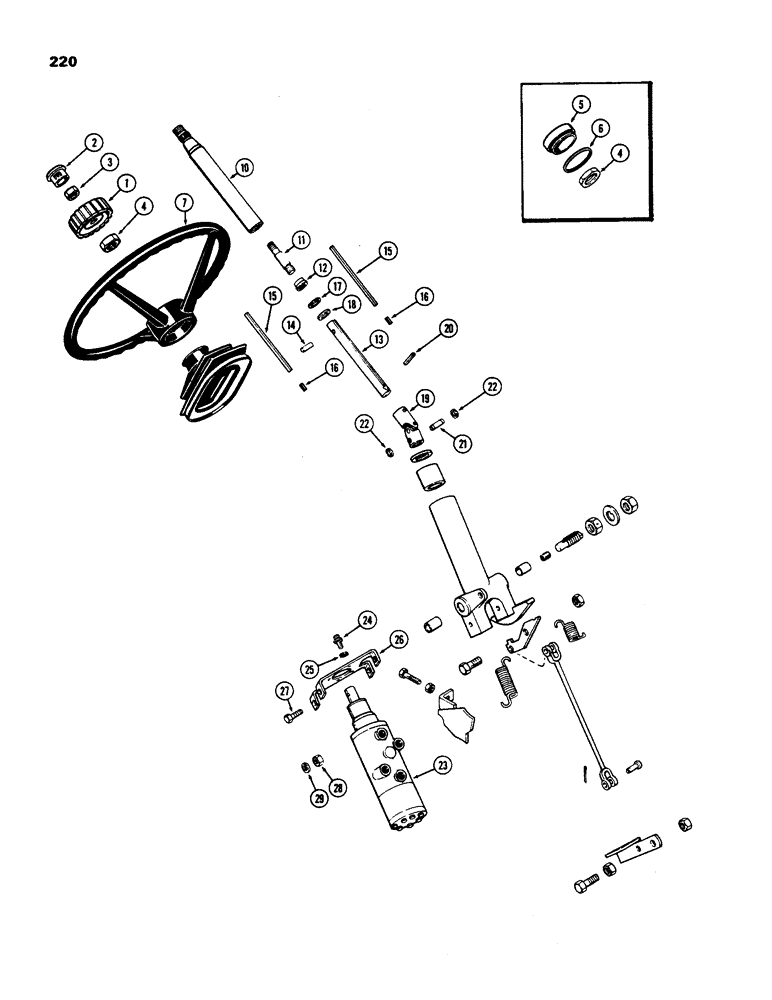

Схема запчастей Case IH 970 - (220) - ADJUSTABLE STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
3
15
13
28
11
5
4
29
27
12
22
24
6
17
20
19
16
21
14
23
16
16
26
7
18
25
4
1
2
22
10

Артикул

Название

Примечание

Количество

1

A141827

CAP

KNOB - lock, steering wheel (1st used trac. ser. no. 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, Heyco (Used w/ A141827 knob)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex., jam (Used w/ A141827 knob)

1шт.

4

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel (Used prior to trac. ser. no. 8808494)

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2-1/8 x 2-3/8 x 1/8" (Used w/ A62210 medallion)

1шт.

7

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

8

A61910

BOOT

- rubber, steering column

1шт.

10

A63681

SHAFT

- steering, outer

1шт.

11

A63683

SHAFT

- steering, inner lock

1шт.

12

A63684

LOCK NUT

- lock, shaft

1шт.

13

A63697

SHAFT

- steering, inner telescoping

1шт.

14

A63685

PIN

- lock, telescoping shaft

1шт.

15

A63686

KEY

- inner shaft

2шт.

16

A63687

LOCK

- friction, telescoping shaft

2шт.

17

A63688

FRICTION WASHER

- friction, shaft retaining

1шт.

18

A58116

RING

- snap, washer

1шт.

19

A63689

JOINT

- universal, steering shaft

1шт.

20

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

21

A64000

PIN,9.42mm OD x 38.1mm L

- universal to pump shaft

1шт.

22

A27795

RING

E-RING - pin retaining

2шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See Figures 256 and 258

1шт.

24

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - cap, 5/16 x 3/4" NC ferry

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

A65562

BRACKET

- pump mounting (Replaces A64121)

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

Выбрано товаров: 28
