Запчасти Case IH 970 (216) - RIGID STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

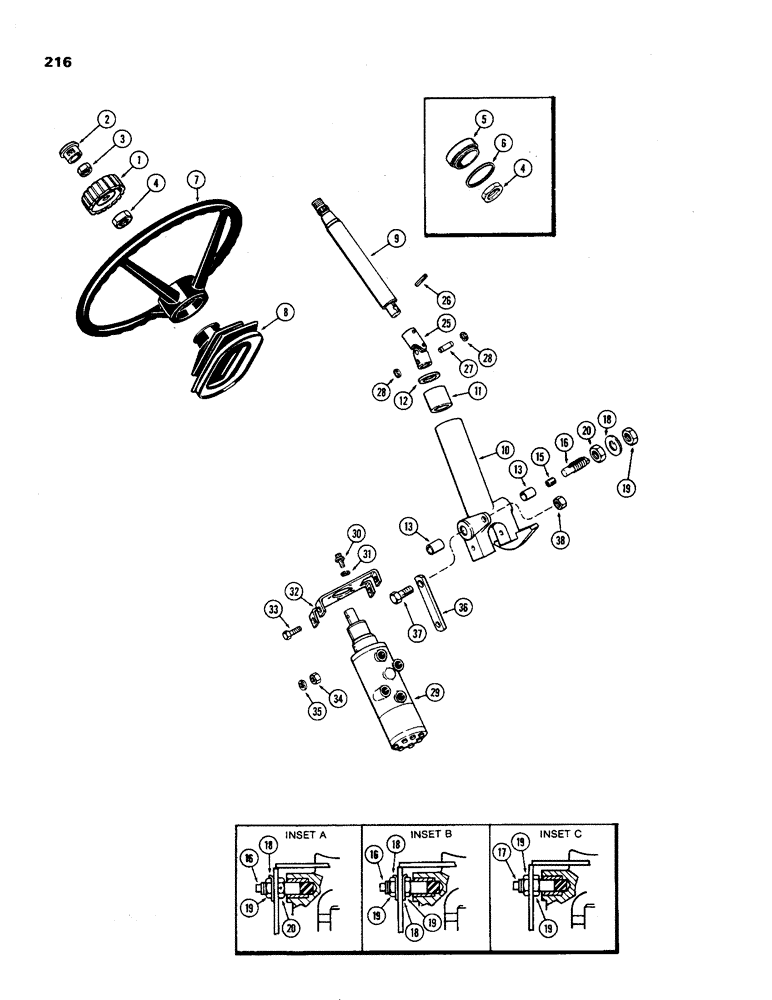

Схема запчастей Case IH 970 - (216) - RIGID STEERING COLUMN, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
19
12
7
19
3
19
28
16
20
4
17
37
28
11
9
18
25
20
5
15
1
13
4
27
6
30
32
19
26
18
18
36
16
35
10
29
18
34
19
31
16
2
33
19
8
13
38

Артикул

Название

Примечание

Количество

1

A141827

CAP

KNOB - lock, steering wheel (1st used trac. ser. no. 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, heyco (Used w/ A141827 knob)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex., jam (Used w/ A141827 knob)

1шт.

4

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel (Used prior to trac. ser. no. 8808494)

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2-1/8 x 2-3/8 x 1/8" (Used w/ A62210 medallion)

1шт.

7

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

8

A61910

BOOT

- steering column

1шт.

9

A64548

SHAFT - steering wheel

1шт.

A64122

STEERING ASSY

COLUMN ASSEMBLY - steering, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - (Order A64122)

1шт.

11

A59808

BEARING

- steering shaft

1шт.

12

A61736

WIPER SEAL

- wiper, steering shaft

1шт.

13

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

15

A59842

BUMPER

SNUBBER - pivot, steering column

1шт.

16

A137354

STUD

- pivot, w/tongued groove (1st used trac. ser. no. 8788362) (See Insets A and B)

2шт.

17

A59163

STUD

- pivot (Order A137354 and A137355) (Used prior to trac. ser. no. 8788362) (See Inset C)

2шт.

18

A137355

WASHER

- tongued, pivot stud (4 used trac. ser. nos. 8788362 to 8800896) (See Insets A and B)

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" NC hex (4 used prior to trac. ser. no. 8800896) (See Insets)

1шт.

20

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" hex. lock, Gripco (1st used trac. ser. no. 8800896) (See Inset A)

2шт.

25

A63689

JOINT

- universal, Serial Range: shaft-pump

1шт.

26

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

27

A64000

PIN,9.42mm OD x 38.1mm L

- joint to pump shaft

1шт.

28

A27795

RING

E-RING - pin retaining

2шт.

29

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See Figures 256 and 258

1шт.

30

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - cap, 5/16 x 3/4" NC ferry

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

A65562

BRACKET

- pump mounting (Replaces A624121)

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

34

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

A64550

LINK - lock, steering column

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

Выбрано товаров: 34
