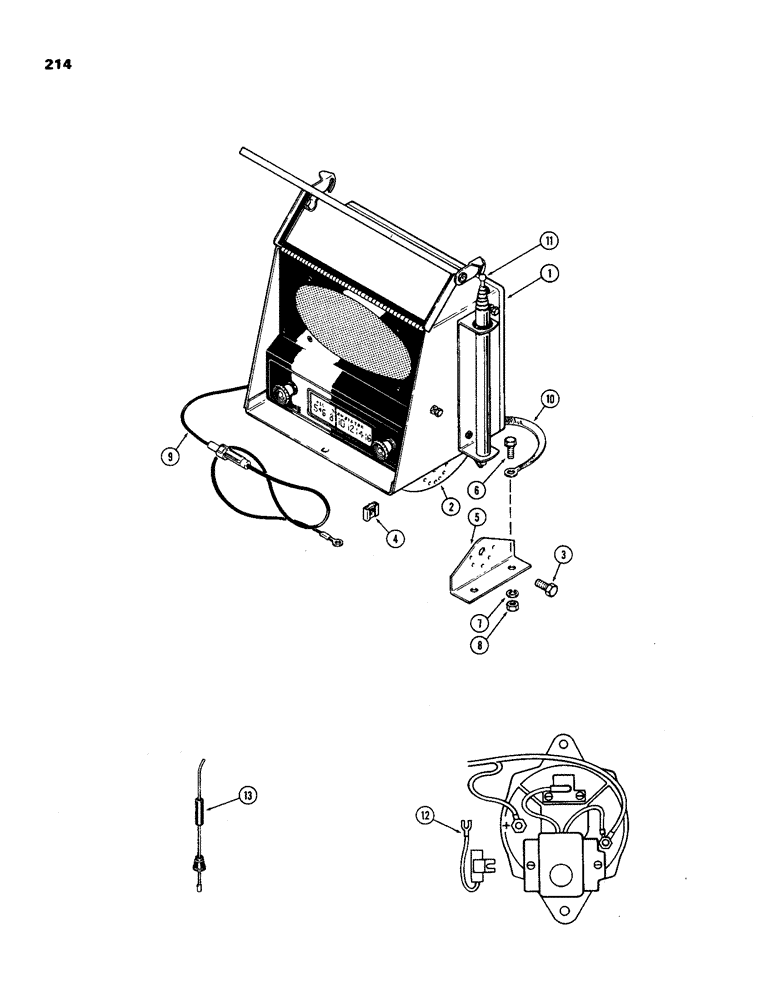

Запчасти Case IH 970 (214) - RADIO, FENDER MOUNTED (04) - ELECTRICAL SYSTEMS

A135620

RADIO

KIT - fender mounted (AM-FM), Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

3

113-161

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

2шт.

4

131-613

NUT - 5/16" NC cage

2шт.

5

NSS

NOT SOLD SEPARAT

BRACKET -, Serial Range: mounting-fender

2шт.

6

113-162

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- 5/16 x 1" NC hex

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

4шт.

9

NSS

NOT SOLD SEPARAT

WIRE ASSEMBLY - lead, Includes: fuse

1шт.

223-36

FUSE,2 Amp, Type 3AG

- 5 amp., 1-1/4" long

1шт.

10

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

11

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

12

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

13

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (Spark ignition)

1шт.
