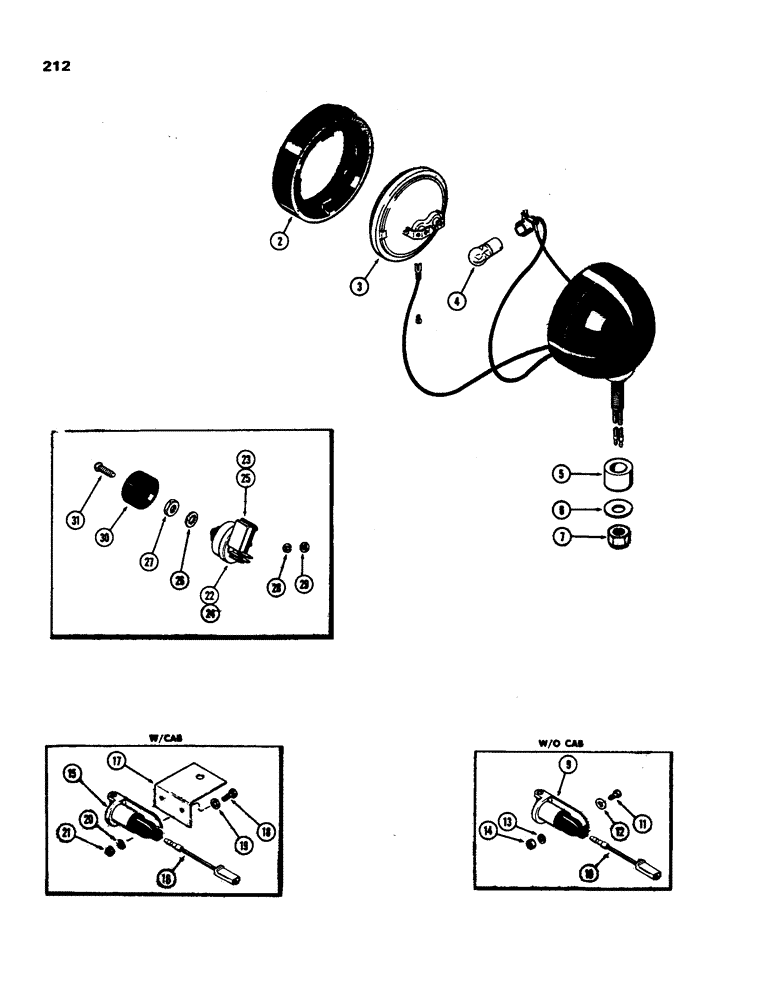

Запчасти Case IH 970 (212) - TAIL AND WARNING LAMP (04) - ELECTRICAL SYSTEMS

A59703

LAMP

ASSEMBLY - rear flood and tail, Includes: Ref. 2 - 5

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mounting

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, rear auxiliary outlet, w/o cab, Includes: Ref. 9 - 14

1шт.

9

A65059

SOCKET/RECEPTACLE

SOCKET - (Replaces A8170), rear auxiliary outlet, w/o cab

1шт.

10

A65060

ELECTRICAL WIRE

WIRE - rear auxiliary outlet w/o cab

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- socket #10 x 3/4" NC hex machine, rear auxiliary outlet, w/o cab

2шт.

12

195-513

WASHER,#10

- 7/32 x 1/2 x 18 ga, rear auxiliary outlet, w/o cab

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet, w/o cab #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex, rear auxiliary outlet, w/o cab

2шт.

A61680

SCREW

ATTACHMENT - socket, w/ cab, Includes: Ref. 15 - 21

1шт.

15

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet (Replaces A 8170), w/ cab

1шт.

16

A65060

ELECTRICAL WIRE

WIRE - auxiliary outlet, w/ cab

1шт.

17

A61679

BRACKET - socket mounting, w/ cab

1шт.

18

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- C#10 x 3/4" NC hex, machine, w/ cab

2шт.

19

195-513

WASHER,#10

- 7/32 x 1/2 x 18 ga, w/ cab

2шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , w/Cab #10

2шт.

21

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex, w/ cab

2шт.

22

A64499

SWITCH

ASSEMBLY - light (1st used tractor serial no. 8693001), Includes: Ref. 23

1шт.

23

A45686

CIRCUIT-BREAKER

BREAKER - circuit (40 amp), light switch

1шт.

24

A59694

SWITCH

ASSEMBLY - light (Used prior to tractor serial no. 8693001) (Order A64499), Includes: Ref. 25 & 26

1шт.

25

A43658

BREAKER

- circuit (30 amp), light switch

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" internal, light switch

1шт.

27

A20467

NUT

- light switch lock

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

29

129-37

NUT,#10-32

Light switch #10-32

2шт.

30

A59695

KNOB

- light switch

1шт.

31

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- light switch knob, #8 x 5/8" NC pan head machine

1шт.
