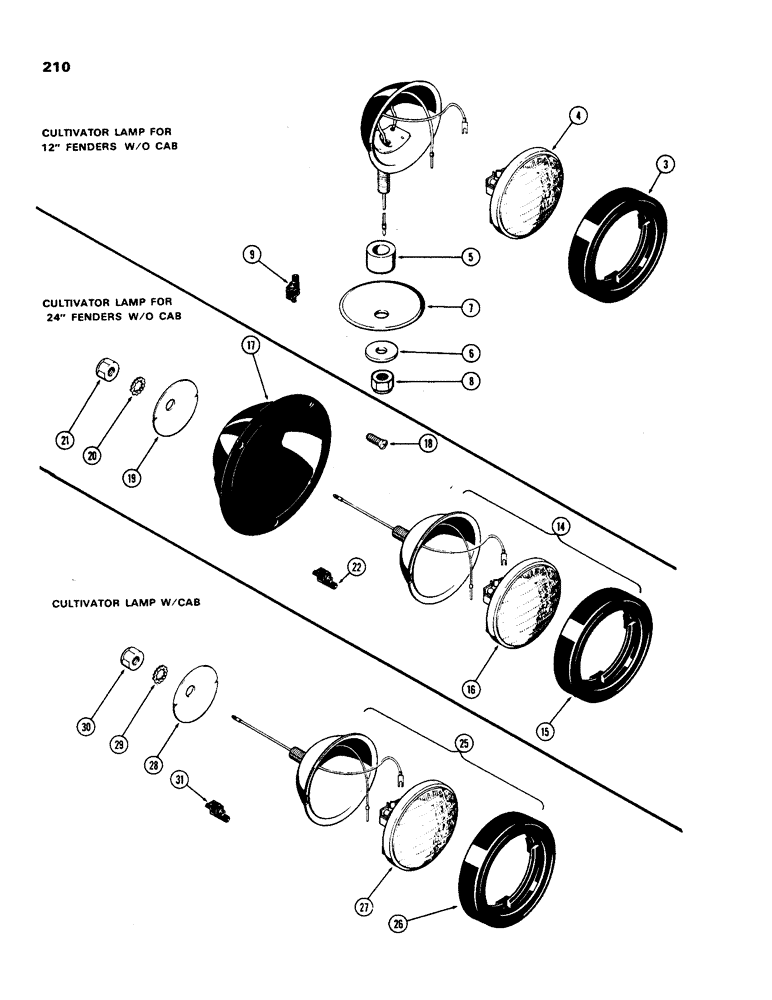

Запчасти Case IH 970 (210) - CULTIVATING LAMPS, FOR 12 INCH FENDER, WITHOUT CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A60510
LAMP
ATTACHMENT - lamp, Includes: Ref. 3 - 9
1шт.
A59724
HEADLAMP
LAMP ASSEMBLY - front cultivator, Includes: Ref. 3 - 5
2шт.
3
A25213
RETAINER
- sealed beam
1шт.
4
A42294
SEALED BEAM UNIT
BULB - sealed beam
1шт.
5
D37048
BUSHING
- lamp pivot
1шт.
6
D37049
WASHER
- front cultivator mounting
2шт.
7
A59725
SPACER
BRACE - front cultivator
2шт.
8
129-125
NUT,1/2"-20, G5
2шт.
9
A62556
CONNECTOR, ELEC
CONNECTOR - splice (with 2 beam lamp)
2шт.
A60511
LAMP
ATTACHMENT - lamp, for 24" fender, w/o cab, Includes: Ref. 14 - 22
1шт.
14
A59723
LAMP
ASSEMBLY - front cultivator, for 24" fender, w/o cab, Includes: Ref. 15 & 16
2шт.
15
A25213
RETAINER
- sealed beam, for 24" fender, w/o cab
1шт.
16
A42294
SEALED BEAM UNIT
BULB - sealed beam, for 24" fender, w/o cab
1шт.
17
A59698
BEZEL
- cultivator lamp mounting, RH, for 24" fender, w/o cab
1шт.
17
A59699
BEZEL
- cultivator lamp mounting, LH, for 24" fender, w/o cab
1шт.
18
187-1062
SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"
SCREW - #10-24 x 1/2" self-tapping, for 24" fender, w/o cab
6шт.
19
A59702
RETAINER
- front cultivator lamp, for 24" fender, w/o cab
2шт.
20
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , for 24" fender, w/o Cab Ext-Int Tooth, 1/2"
2шт.
21
129-105
NUT,Hex, 1/2" - 13, Gr 5
For 24" fender, w/o Cab 1/2"-13, G5
2шт.
22
A62556
CONNECTOR, ELEC
CONNECTOR - splice (with 2 beam lamp), for 24" fender, w/o cab
2шт.
A61753
ATTACHMENT
- lamp, w/ cab, Includes: Ref. 25 - 31
1шт.
25
A59723
LAMP
ASSEMBLY - front cultivator, w/ cab, Includes: Ref. 26 & 27
2шт.
26
A25213
RETAINER
- sealed beam, w/ cab
1шт.
27
A42294
SEALED BEAM UNIT
BULB - sealed beam, w/ cab
1шт.
28
A59702
RETAINER
- front cultivator lamp, w/ cab
2шт.
29
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , w/ Cab Ext-Int Tooth, 1/2"
2шт.
30
129-105
NUT,Hex, 1/2" - 13, Gr 5
w/Cab 1/2"-13, G5
2шт.
31
A62556
CONNECTOR, ELEC
CONNECTOR - splice (with 2 beam lamp), w/ cab
2шт.
Выбрано товаров: 28
