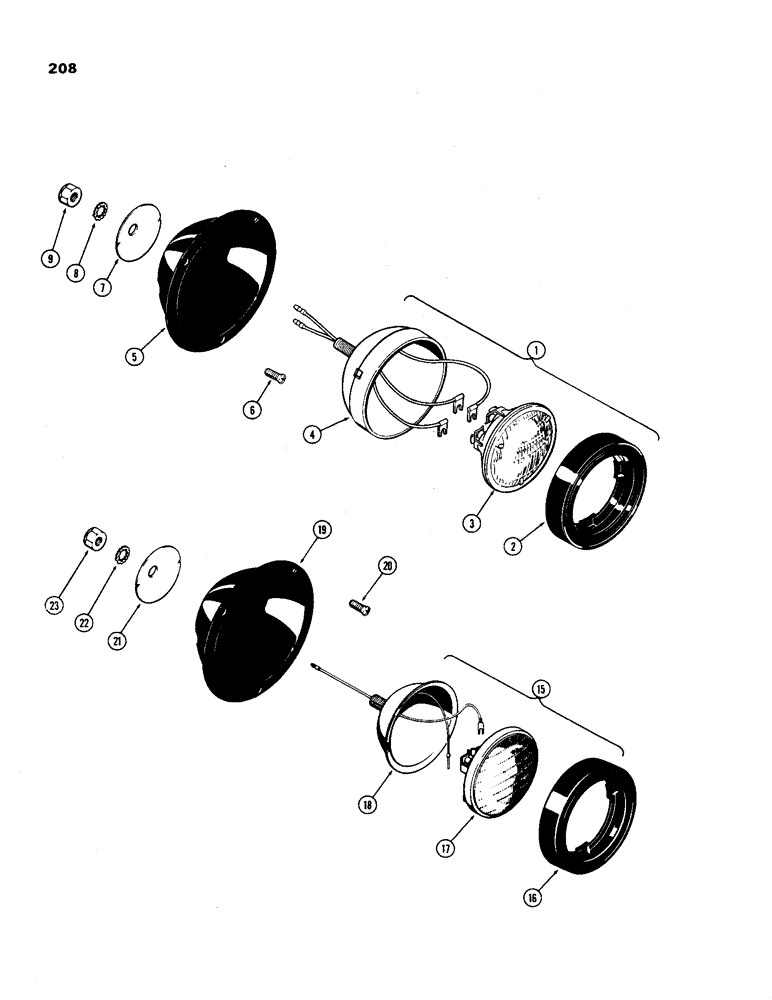

Запчасти Case IH 970 (208) - HEAD LAMPS, DUAL BEAM, FIRST USED TRACTOR SERIAL NUMBER 8693001 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A64498
LAMP
ASSEMBLY - head (2 beam), Includes: Ref. 2 - 4
2шт.
2
A25213
RETAINER
- sealed beam
1шт.
3
A43712
LAMP
- sealed unit (#4457)
1шт.
4
NSS
NOT SOLD SEPARAT
BODY AND WIRE ASSEMBLY - (Order A64498)
1шт.
5
A59698
BEZEL
- lamp mounting, RH (without cab)
1шт.
5
A59699
BEZEL
- lamp mounting, LH (without cab)
1шт.
6
187-1062
SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"
SCREW - #10-24 x 1/2" self-tapping
6шт.
7
A59702
RETAINER
- front head lamp
2шт.
8
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
9
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
15
A59701
LAMP
- head (single beam), used prior to tractor s/n 8693001, Includes: Ref. 16 - 18
2шт.
16
A25213
RETAINER
- sealed beam, single used prior to tractor s/n 8693001
1шт.
A24572
LAMP
KIT - head lamp, single beam used prior to tractor s/n 8693001, Includes: Ref. 17 and gasket
1шт.
A11276
GASKET
- (not used this unit), single beam used prior to tractor s/n 8693001
1шт.
17
NSS
NOT SOLD SEPARAT
LAMP - sealed beam (Order A24572), single used prior to tractor s/n 8693001
1шт.
18
NSS
NOT SOLD SEPARAT
BODY AND WIRE ASSEMBLY - (Order A59701), single beam used prior to tractor s/n 8693001
1шт.
19
A59698
BEZEL
- lamp mounting, RH (without cab), single beam used prior to tractor s/n 8693001
1шт.
19
A59699
BEZEL
- lamp mounting, LH (without cab), single beam used prior to tractor s/n 8693001
1шт.
20
187-1062
SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"
SCREW - #10-24 x 1/2" self-tapping, single beam used prior to tractor s/n 8693001
6шт.
21
A59702
RETAINER
- front head lamp, single beam used prior to tractor s/n 8693001
2шт.
22
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , Single beam used prior to tractor S/N 8693001 Ext-Int Tooth, 1/2"
2шт.
23
129-105
NUT,Hex, 1/2" - 13, Gr 5
Single beam used prior to tractor S/N 8693001 1/2"-13, G5
2шт.
Выбрано товаров: 22
