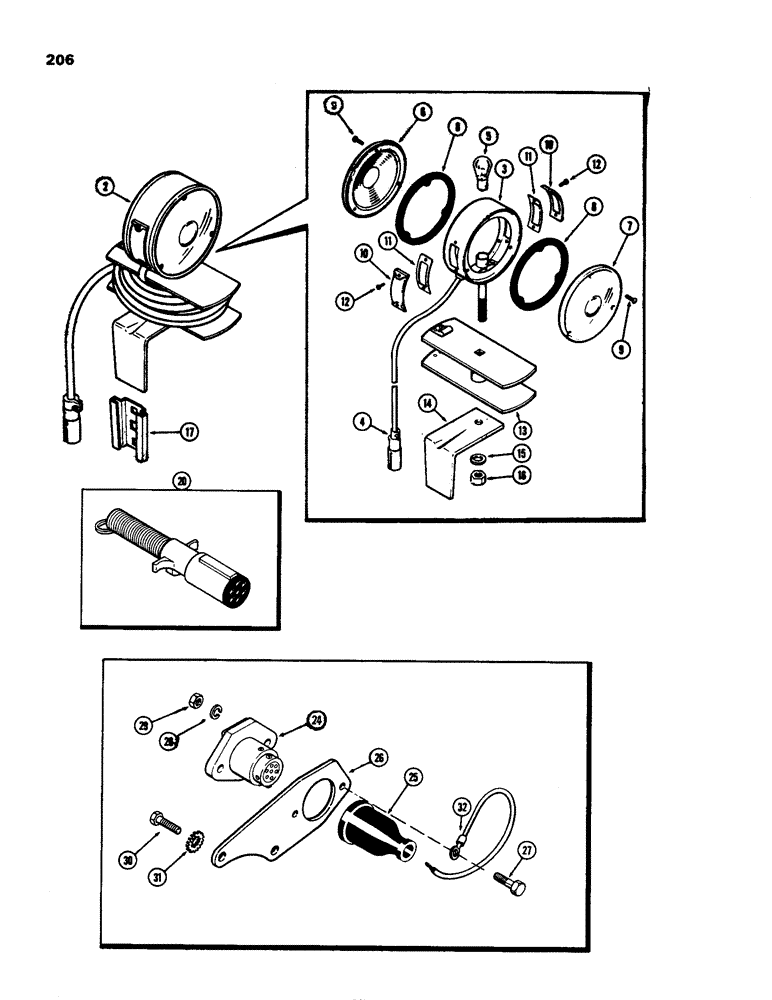

Запчасти Case IH 970 (206) - IMPLEMENT WARNING LAMP (04) - ELECTRICAL SYSTEMS

A11066M

LAMP ATTACHMENT - warning, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - (Order A11066)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - with cord (Order A11066)

1шт.

4

B50259

PLUG

- (to auxiliary socket)

1шт.

5

33686

BULB

- lamp (21CP)

1шт.

6

B50337

LENS

- lamp (amber)

1шт.

7

B53962

LENS

- lamp (Red)

1шт.

8

B50317

GASKET - lens

2шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6 x 1/2" NC, round head

6шт.

10

B50328

LENS - lamp, side (Clear)

2шт.

11

B50329

GASKET - side lens

2шт.

12

182-43

SCREW - side lens, #6 x 5/16" NC, round head

4шт.

13

B50330

SPOOL - lamp cord reel

1шт.

14

B50331

BRACKET - lamp mounting

1шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

17

A8179

SOCKET

- lamp positioning

1шт.

20

A67189

CONNECTOR, ELEC

ATTACHMENT - 7 point auxiliary plug (male), outlet, Includes: Ref. 24 - 32

1шт.

A66932

OUTLET

ATTACHMENT - 7 point auxiliary socket (female), outlet, Includes: Ref. 24 - 32

1шт.

24

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point auxiliary outlet

1шт.

25

A38740

GUARD

BOOT - connector, 7 point auxiliary outlet

1шт.

26

A66891

BRACKET - connector mounting, 7 point auxiliary outlet

1шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

7 point auxiliary outlet Hex, 5/16"-18 x 1 1/4", G5

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 7 point auxiliary outlet 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

7 point auxiliary outlet 5/16"-18, G5

2шт.

30

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

7 point auxiliary outlet Hex, 3/8"-16 x 1 1/2", G5

2шт.

31

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" internal/external, 7 point auxiliary outlet

2шт.

32

A66893

ELECTRICAL WIRE

WIRE - auxiliary outlet ground, 7 point

1шт.
