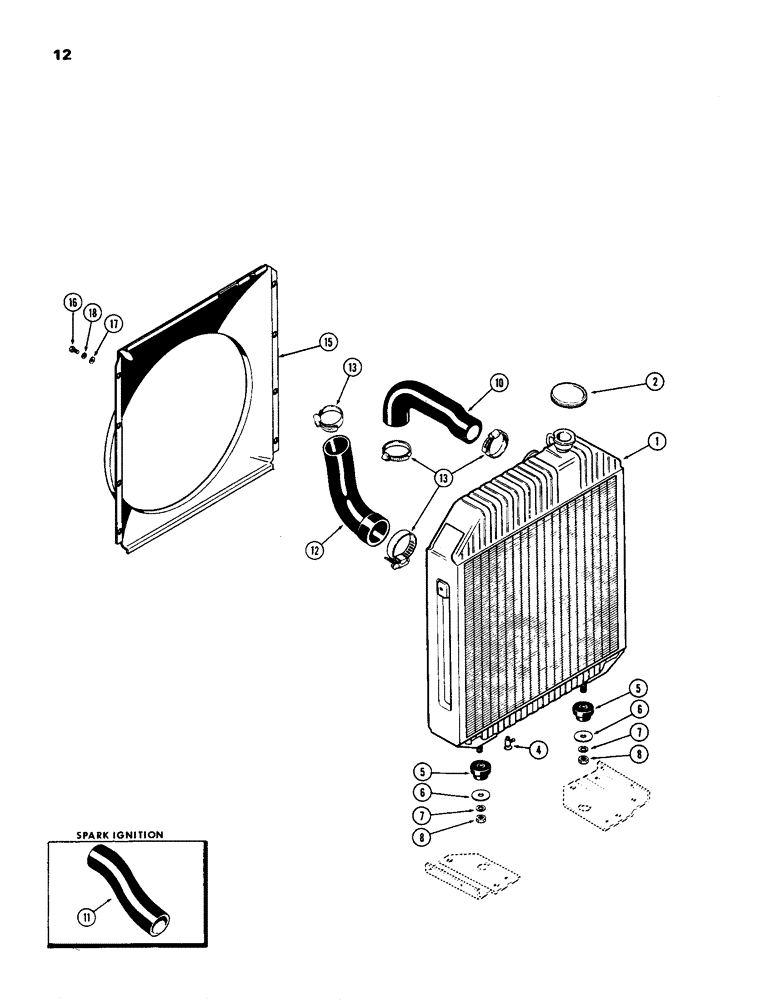

Запчасти Case IH 970 (012) - RADIATOR, (401B) DIESEL AND (377B) SPARK IGNITION ENGINES (02) - ENGINE

1

A60318

RADIATOR

- diesel

1шт.

2

A141846

CAP

- radiator (10 PSI non-vented) (1st used trac. ser. no. 8808749)

1шт.

2

A61784

CAP

- radiator (14 PSI) (Used prior to trac. ser. no. 8808749)

1шт.

4

A23655

VALVE

- radiator drain

1шт.

5

A59863

MOUNTING PARTS

MOUNT - center bonded

2шт.

6

NLS

NO LONGER SERVICED

- center bonded mount snubber

2шт.

7

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A59887

LARGE HOSE,2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Inlet (Diesel) 2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

1шт.

11

A59886

HOSE,2.50" ID x 8.30", SAE 20R4 CLASS SC

RADIATOR HOSE, , Inlet (Spark Ignition) 2.50" ID x 8.30", SAE 20R4 CLASS SC

1шт.

12

A62649

HOSE,2.25" ID, 2.62" ID x 7.38", SAE 20R4 CLASS SC

RADIATOR HOSE, , Outlet (Diesel and Spark Ignition) 2.25" ID, 2.62" ID x 7.38", SAE 20R4 CLASS SC

1шт.

ref #12, can use part #a59865 hose (2 1/4" dia on both ends). sg

1шт.

13

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, 2-5/16 to 3-1/4"

4шт.

15

A59891

GUARD

SHROUD - fan

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

. Hex, 1/4"-20 x 1/2", G5, Full Thd

8шт.

17

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

8шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.
