Запчасти Case IH 970 (196) - A137183 ALTERNATOR, PRESTOLITE, 401B DIESEL AND 377B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

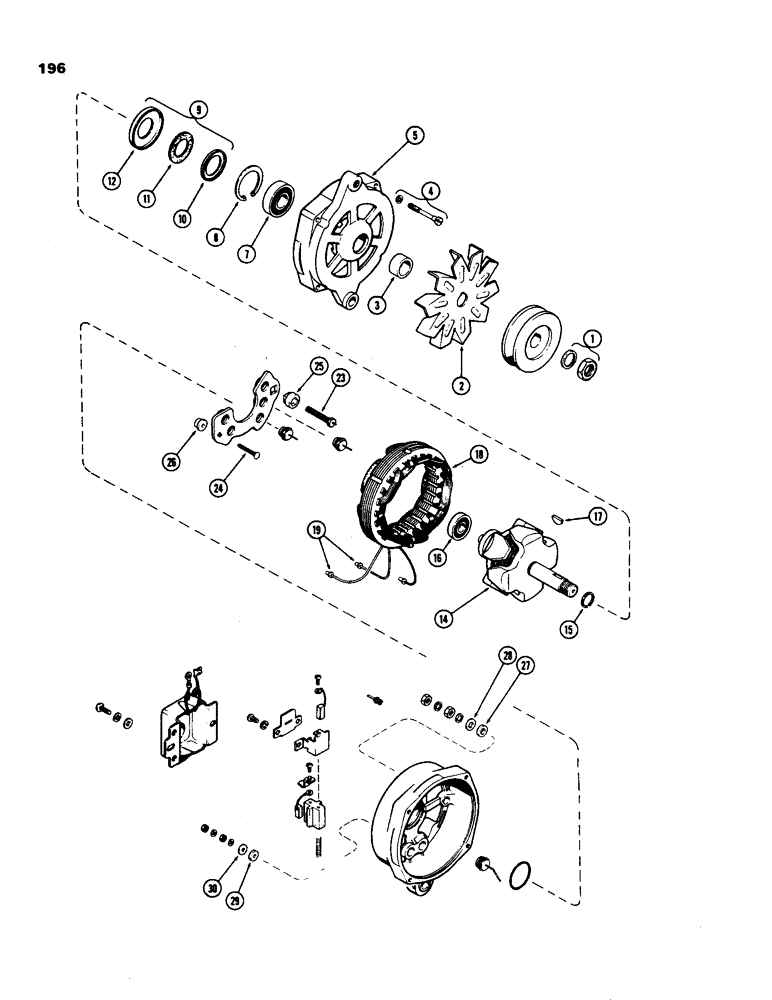

Схема запчастей Case IH 970 - (196) - A137183 ALTERNATOR, PRESTOLITE, 401B DIESEL AND 377B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
23
16
11
30
12
17
26
2
3
1
29
9
16
24
6
28
14
19
25
27
7
4
15
5
10

Артикул

Название

Примечание

Количество

A137183

ALTERNATOR

ALTERNATOR ASSEMBLY - (with 2 mounting feet) (Eltra #ALH-7307-S) (Order 1-A45304 alternator, 1-A42267 pulley and 1-A44543 regulator) (Production Only) (Replaces A61062), Includes: Ref. 1 - 12 and 31 - 49 on Figure 198

1шт.

A45304

ALTERNATOR

ALTERNATOR ASSEMBLY - (with 2 mounting feet) (Eltra #ALH-5307-S) (Less pulley and regulator) (Repairs Only) (Replaces A42444) (Order A45304), See Figure 192, Includes: Ref. 1 - 12 and 31 - 49 on Figure 198

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A40581

KIT

KIT - nut and washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41094

BOLT

KIT - bolt, thru (Set of 4 w/ washers)

1шт.

5

A44361

COVER

HEAD ASSEMBLY - drive end (Replaces A42441), Includes: Ref. 7 - 12

1шт.

7

A45230

BEARING ASSY

BEARING - ball (Replaces A42263)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

KIT - retainer, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A42269

SPARE PART

ROTOR ASSEMBLY - alternator, Includes: Ref. 15 & 16

1шт.

15

A25626

RING

RING - snap, rotor

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft (sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

STATOR ASSEMBLY - alternator

1шт.

19

A41065

KIT

KIT - eyelet, wire end (Set of 6), Includes: Ref. 23 - 30

1шт.

A41080

KIT

KIT - stud, terminal, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

Выбрано товаров: 34
