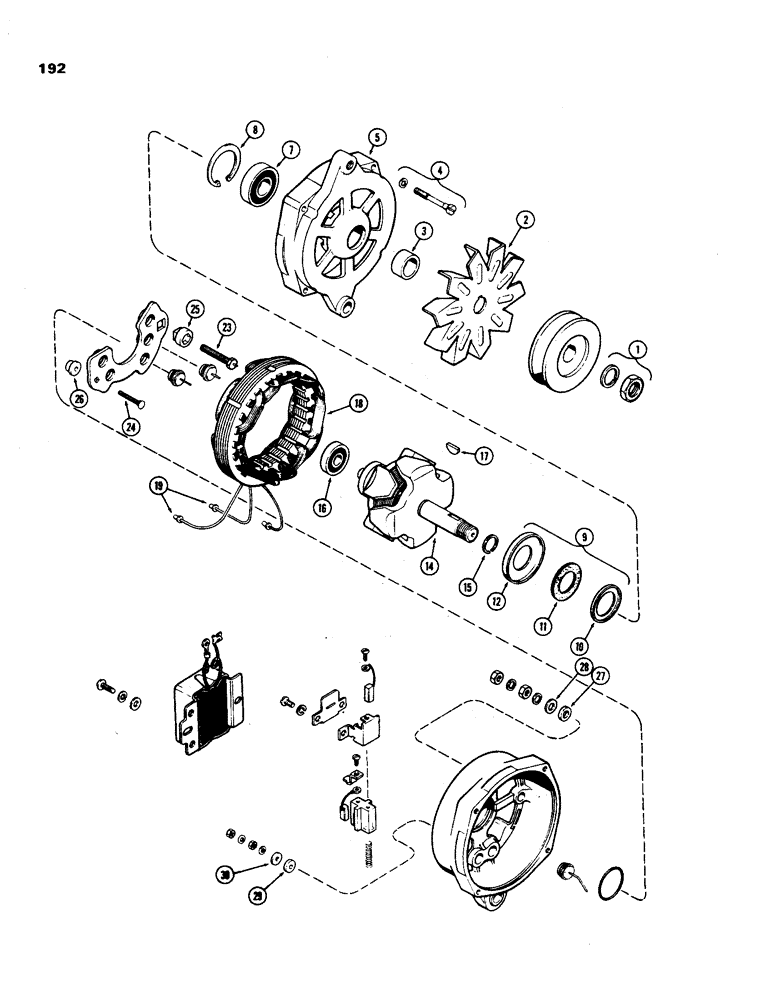

Запчасти Case IH 970 (192) - A45304 ALTERNATOR, PRESTOLITE, 401B DIESEL AND 377B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A137183
ALTERNATOR
ALTERNATOR ASSEMBLY - (With 2 mounting feet) (Eltra #ALH-5307S) (Order 1-A45304 alternator, 1-A42267 pulley and 1-A44543 regulator) (Production only), Includes: Ref. 1 - 12 and 31 - 49 on Figure 194
1шт.
See Figure 150 for alternator conversion kits.
1шт.
A45304
ALTERNATOR
ALTERNATOR ASSEMBLY - (Eltra #ALH-5321S) (Less pulley and regulator) (Repairs only) (Replaces A42444) and A45237), Includes: Ref. 1 - 12 and 31 - 49 on Figure 194
1шт.
A47625
ALTERNATOR
ALTERNATOR - 12 Volt 72 ampere
1шт.
103804A1GV
ALTERNATOR
Value
1шт.
103804A1R
REMAN-ALTERNATOR
Reman for New PN A47625
1шт.
103804A1C
CORE-ALTERNATOR
Return Number
1шт.
ZAP804A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)
1шт.
103804A1C
CORE-ALTERNATOR
Return Number
1шт.
1
A40581
KIT
KIT - nut and washer, rotor shaft
1шт.
2
A41066
FAN
PAN - ventilating
1шт.
3
A41078
BUSHING
SPACER - rotor shaft
1шт.
4
A41094
BOLT
KIT - bolt thru (Set of 4 with washers)
1шт.
5
A44361
COVER
HEAD ASSEMBLY - drive end (Replaces A42441), Includes: Ref. 7 - 12
1шт.
7
A45230
BEARING ASSY
BEARING - ball (Replaces A42263)
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, bearing retainer
1шт.
9
A42268
KIT
KIT - retainer, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - seal
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - felt
1шт.
12
NSS
NOT SOLD SEPARAT
RETAINER - felt seal
1шт.
14
A45323
ROTOR
ROTOR ASSEMBLY - alternator, Includes: Ref. 15 & 16
1шт.
15
A25626
RING
RING - snap, rotor
1шт.
16
A42270
BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"
BEARING - ball, rotor shaft (sealed)
1шт.
17
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT
1шт.
18
A42271
STATOR
STATOR ASSEMBLY - alternator
1шт.
19
A41065
KIT
KIT - eyelet, wire end (Set of 6), Includes: Ref. 23 - 30
1шт.
A41080
KIT
KIT - stud, terminal, Includes: Ref. 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
STUD - battery terminal
1шт.
24
NSS
NOT SOLD SEPARAT
STUD - auxiliary terminal
1шт.
25
NSS
NOT SOLD SEPARAT
BUSHING - insulation, battery terminal
1шт.
26
NSS
NOT SOLD SEPARAT
BUSHING - insulation, auxiliary terminal
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - insulating, battery terminal
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER - plain, battery terminal
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - insulating, auxiliary terminal
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - plain, auxiliary terminal
1шт.
Выбрано товаров: 35
