Запчасти Case IH 970 (188) - A147159 ALTERNATOR, 61 AMP DELCO-REMY, USED TRACTOR S/N 8816812 TO 8817164 & 8817283 AND AFTER (04) - ELECTRICAL SYSTEMS

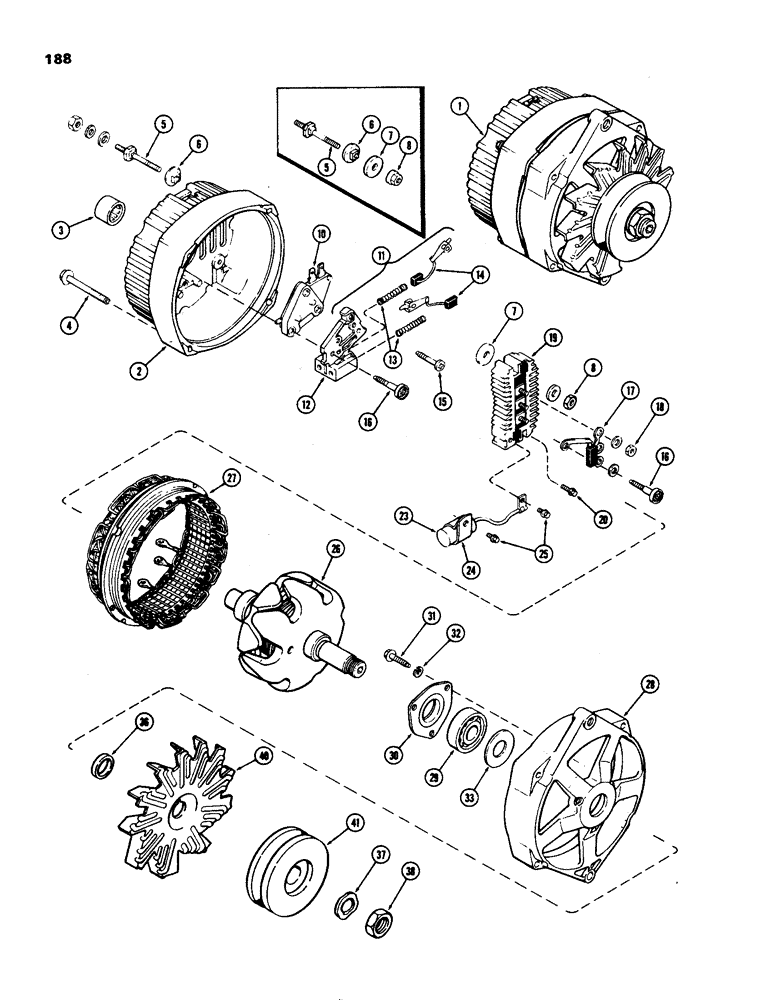

Схема запчастей Case IH 970 - (188) - A147159 ALTERNATOR, 61 AMP DELCO-REMY, USED TRACTOR S/N 8816812 TO 8817164 & 8817283 AND AFTER (04) - ELECTRICAL SYSTEMS
17
33
7
8
16
28
27
5
15
1
36
8
29
5
10
18
3
32
23
24
13
38
2
12
25
6
19
26
4
37
11
20
31
14
16
41
40
7
30
6

Артикул

Название

Примечание

Количество

1

A147159

ALTERNATOR ASSEMBLY - 61 ampere (Delco #1102928) (Order A47057 alternator, A43384 fan and A45231 pulley) (Production Only), Includes: Ref. 2 - 38

1шт.

See Figure 150 for alternator conversion kits.

1шт.

A47057

ALTERNATOR

ALTERNATOR ASSEMBLY - 61 amp (Delco #1102921) (Less pulley and fan) (Repairs Only), Includes: Ref. 2 - 38

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN A47057

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere, N.A. Only

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47041

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex washer head

4шт.

A45225

MULTIPOLE CONNECTOR

KIT - terminal, battery, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATOR - stud

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - terminal

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A47042

HOLDER

BRUSH HOLDER ASSEMBLY, Includes: Ref. 12 - 14 and brushes

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

SPRING - brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - commutator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded (#8-32 x 1-1/16" Phillips)

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER - bridge (Replaces A45220)

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - #8-32 x 1"

1шт.

23

A45017

CAPACITOR

CAPACITOR ASSEMBLY, Includes: bracket

1шт.

24

A45227

CLAMP

BRACKET - capacitor

1шт.

25

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - #8-32 x 3/8"

2шт.

26

A47047

ROTOR

ROTOR ASSEMBLY, Includes: slip rings

1шт.

27

A47049

STATOR

STATOR ASSEMBLY - field

1шт.

28

A45229

FRAME

FRAME - drive end

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" round head

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

3шт.

33

A45232

WASHER

WASHER - bearing, grease slinger

1шт.

36

A72047

COLLAR

COLLAR - rotor shaft outer, 43/64 x 7/8 x 13/64"

1шт.

37

R16171

SPRING WASHER

WASHER - lock

1шт.

38

A25546

NUT

NUT - pulley and fan mounting

1шт.

40

A43384

FAN

FAN - alternator ventilating

1шт.

41

A45231

PULLEY

PULLEY - drive

1шт.

A45231, SINGLE GROOVE PULLEY - 3.221 +/- .025 DIAMETER HUB OD 1.12 HUB ID AFTER PLATING .669 - .6720". bj 12-23-97

1шт.

Выбрано товаров: 51
