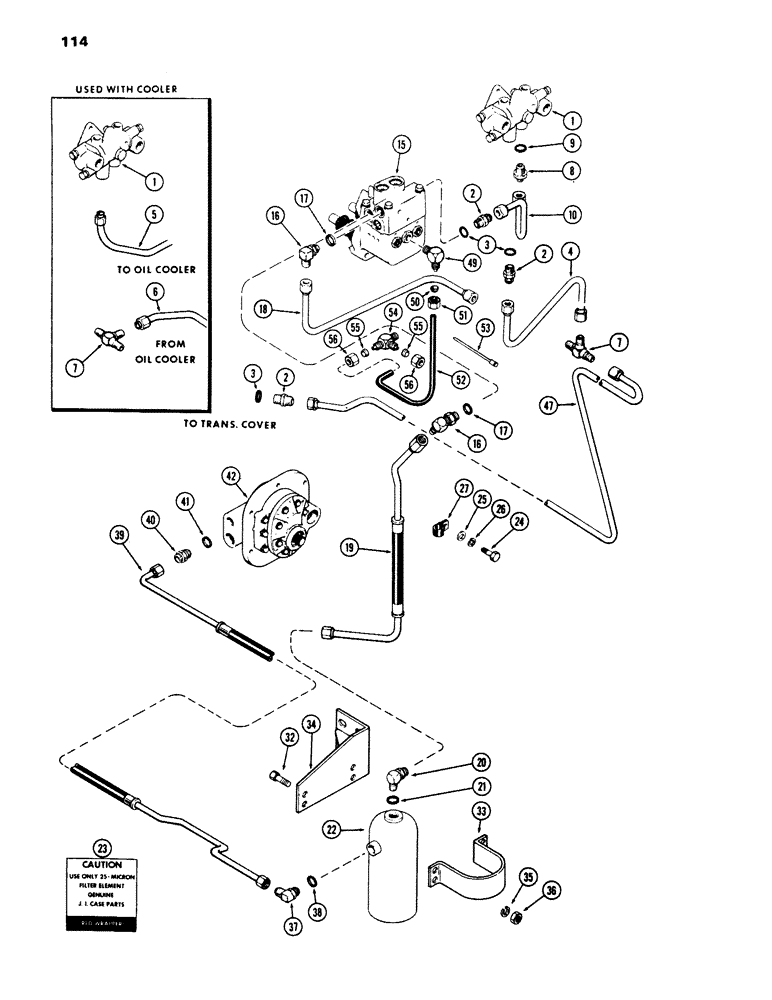

Запчасти Case IH 970 (114) - STEERING & BRAKE VALVE SYSTEM, POWER BRAKES W/POWER SHIFT, 1ST USED TRAC. SER NO. 8675001 (05) - STEERING

1

A60207

VALVE

ASSY. - steering (See Figure 123)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 3

3шт.

4

A59928

TUBE - return, str. valve to tee (used w/out cooler)

1шт.

5

A60402

TUBE - upper, cooler to steering valve (used w/out cooler)

1шт.

6

A60403

TUBE - lower, cooler to tee (used with cooler)

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

- junction, 37 deg. flared tube (1/2" tube O.D.)

1шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSY. - str. valve pressure inlet, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

A59918

TUBE

- pressure, power brake valve to str. valve

1шт.

15

REF

INSTRUCTION

VALVE ASSY - power brake (See Figures 195-197B)

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, Power inlet and sump ports, Includes: Ref. 17 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

18

A59919

TUBE - hydraulic return, power brake, Serial Range: valve-tee

1шт.

19

A62370

HOSE

TUBE - pressure, filter to power brake valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, Includes: Ref. 21 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

22

G32017

FILTER

ASSY. - oil, steering-power brake system (25 Micron) (See Figure 119) (Replaces A60721)

1шт.

23

321-1763

DECAL

- "Warning", oil filter (red wrapper)

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

49833

CLAMP

- oil filter, Serial Range: tubes-firewall

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

34

A61781

BRACKET

- hyd. oil filter (used platform supt. bolts)

1шт.

35

95-6

WASHER,3/8"

- lock, 3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, Includes: Ref. 38 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

39

A62371

TUBE ASSY.

TUBE - hyd. pump to hyd. oil filter (Replaces A61079, A60861 and A61860)

1шт.

40

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy - pump to tube, Incl. Ref 41 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

42

REF

INSTRUCTION

PUMP ASSY. - hydraulic dual (See Figure 243)

1шт.

47

A60772

TUBE

- tee junction to trans. cover (use w/power shift)

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. - 90 deg. male, brake valve pressure relief, Includes: Ref. 50 and 51

1шт.

50

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

51

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

52

A60770

TUBE

- brake valve pressure relief (to trans. cover) (nylon)

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - brake valve to trans. tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY. - reducing, trans. cover sump return, Includes: Ref. 55 and 56

1шт.

55

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

56

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 41/64 x 13/64 x 3/32"

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.
