Запчасти Case IH 970 (112) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

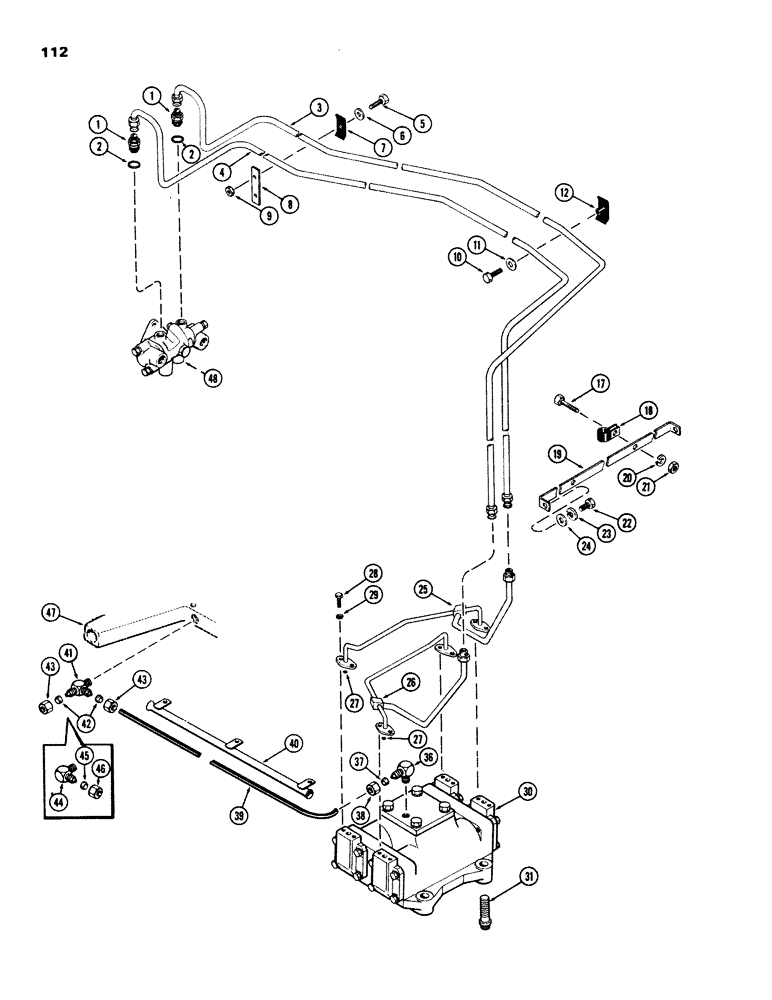

Схема запчастей Case IH 970 - (112) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
20
46
43
41
3
22
44
12
2
38
29
4
39
40
11
9
25
26
2
42
1
36
19
7
5
24
10
8
1
17
48
43
45
28
6
23
18
31
47
30
37
27
21
27

Артикул

Название

Примечание

Количество

1

A60705

CONNECTOR - tube, steering valve to actuator tube

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

3

A61732

TUBE

- steering valve to actuator, upper (Replaces A60706)

1шт.

4

A61733

TUBE - steering valve to actuator, lower (Replaces A60707)

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

6

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

7

A60224

CLAMP

CLIP - mounting, steering actuator and cooler tube

1шт.

8

A60223

PLATE - mounting, steering actuator and cooler tube

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

195-18

WASHER,1/4"

9/32 x 5/8 x 1/16"

1шт.

12

A60225

CLAMP - mounting, actuator tube (5/8" O.D.)

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

18

49885

CLAMP

- steering, Serial Range: tube-support

2шт.

19

A61087

SUPPORT

- steering tube to grille mounting (Replaces A60242)

1шт.

20

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- 1/8 x 5/16 x 3/64"

2шт.

25

A60229

TUBE

- steering, crossover (L.H.)

1шт.

26

A60228

TUBE - steering, crossover (R.H.)

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - 1/2 x 11/16 x 3/32"

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

A60208

ACTUATOR

ASSY. - hydrostatic steering (See Figure 123)

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

- 3/4 x 2-1/2" N.C. Ferry cap

4шт.

36

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. - 90 deg. male, steering actuator pressure relief (3/8" tube O.D. x 1/4" male P.T.), Includes: Ref. 37 and 38

1шт.

37

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

38

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

39

A60771

TUBE

- steering actuator to trans. cover (nylon)

1шт.

40

A59930

TUBE

- protector, steering actuator to trans. cover

1шт.

41

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY. - reducing, trans. cover sump return (3/8" tube O.D, x 1/4" male P.T.) (used only on tractor with power brakes), Includes: Ref. 42 and 43

1шт.

42

222-5186

SLEEVE,3/8" Tube

- nylon

2шт.

43

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

2шт.

44

22-5111

ELBOW ASSY. - 90 deg. male, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.) (used only on tractor with hydraulic brakes), Includes: Ref. 45 and 46

1шт.

45

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

46

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

47

REF

INSTRUCTION

COVER ASSY. - trans. front top (power shift) (See Figure 163)

1шт.

47

REF

INSTRUCTION

COVER ASSY. - trans. front top (mech. shift) (See Figure 167)

1шт.

48

A60207

VALVE

ASSY. - steering (See Figure 123)

1шт.

Выбрано товаров: 41
