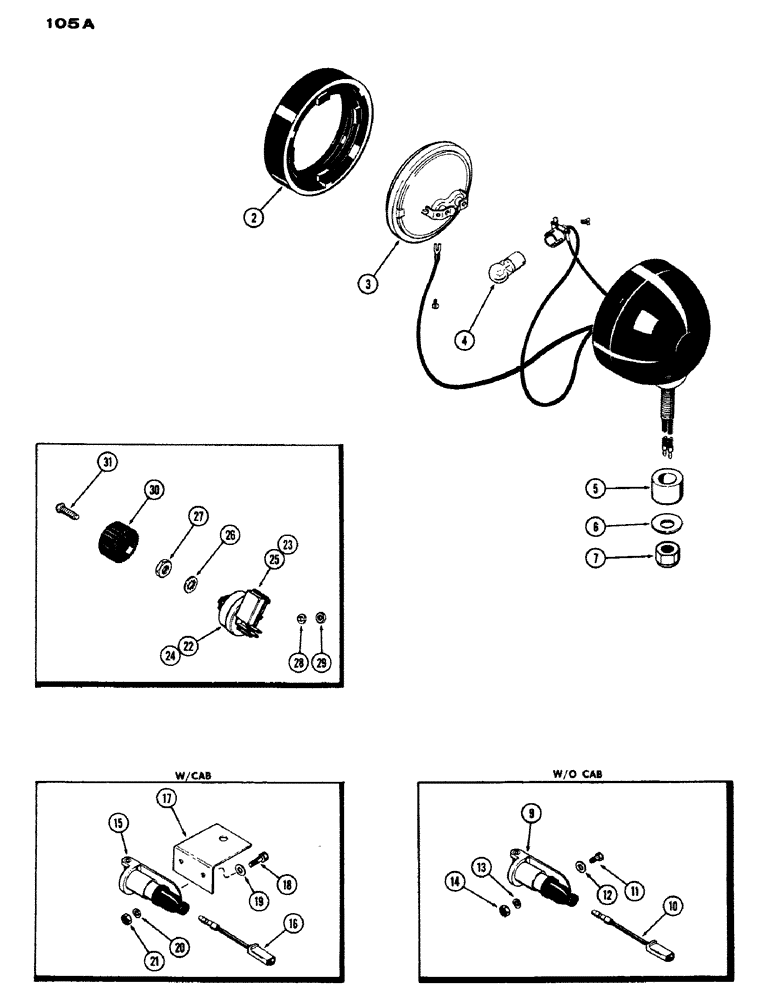

Запчасти Case IH 970 (105A) - TAIL & WARNING LAMP (04) - ELECTRICAL SYSTEMS

A59703

LAMP

- rear flood and tail, Includes: Ref. 2 - 5

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mtg.

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, rear auxiliary outlet, W/O Cab, Includes: Ref. 9 - 14

1шт.

9

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet (Replaces A8170), W/O Cab

1шт.

10

A65060

ELECTRICAL WIRE

WIRE - rear auxiliary outlet, W/O Cab

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- socket, #10 x 3/4" N.C. hex. mach., rear auxiliary outlet, W/O Cab

2шт.

12

195-513

WASHER,#10

- 7/32 x 1/2 x 18 ga., rear auxiliary outlet, W/O Cab

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/o cab #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex, rear auxiliary outlet, W/O Cab

2шт.

A61680

SCREW

ATTACHMENT - socket, W/ Cab, Includes: Ref. 15 - 18

1шт.

15

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet (Replaces A8170), W/ Cab

1шт.

16

A65060

ELECTRICAL WIRE

WIRE - auxiliary outlet, W/ Cab

1шт.

17

A61679

BRACKET - socket mounting, W/ Cab

1шт.

17

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. mach., W/ Cab

2шт.

18

195-513

WASHER,#10

- 7/32 x 1/2 x 18 ga., W/ Cab

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , w/Cab #10

2шт.

20

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex, W/ Cab

2шт.

22

A64499

SWITCH

ASSY. - light (1st used trac. ser. no. 8693001), Includes: Ref. 23

1шт.

23

A43708

BREAKER

- circuit (40 amps), light switch

1шт.

24

A59694

SWITCH

ASSY. - light to trac., Includes: Ref. 25 - 31, Serial Range: -8893001

1шт.

25

A43658

BREAKER

- circuit (30 amps.), light switch

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int., light switch

1шт.

27

A20467

NUT

- light switch lock

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

29

87825

NUT,#10-32

light switch #10-32

2шт.

30

A59695

KNOB

- light switch

1шт.

31

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob

1шт.
