Запчасти Case IH 970 (104) - LIGHTING EQUIPMENT, CULTIVATING LAMP (04) - ELECTRICAL SYSTEMS

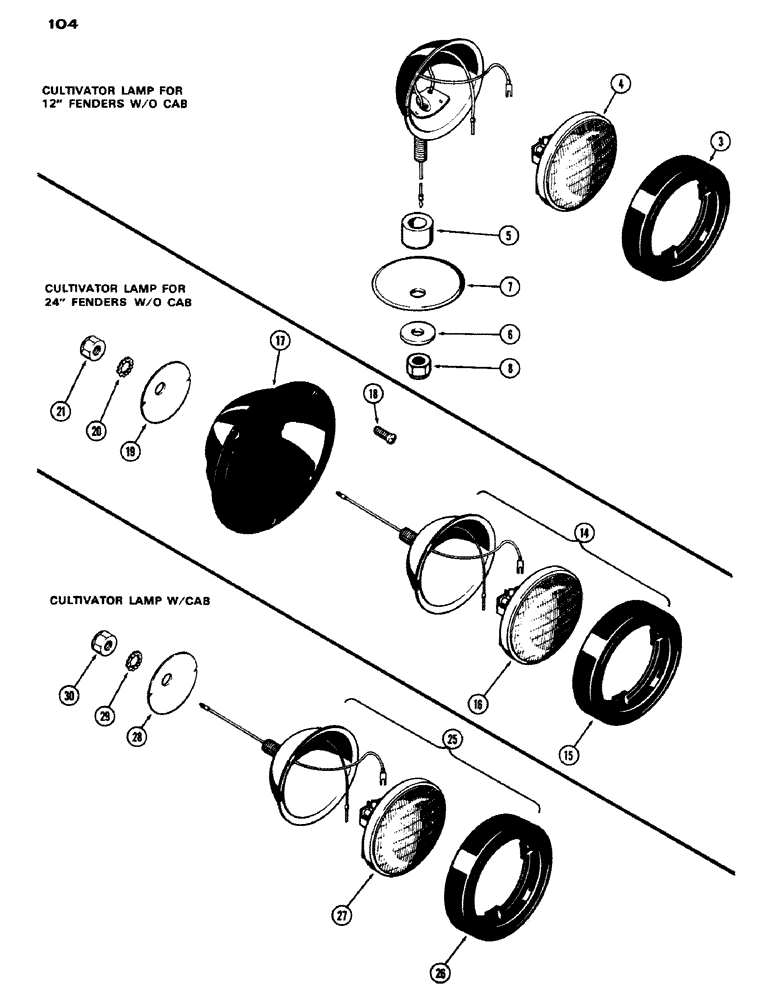

Схема запчастей Case IH 970 - (104) - LIGHTING EQUIPMENT, CULTIVATING LAMP (04) - ELECTRICAL SYSTEMS
16
4
28
25
6
29
30
21
5
7
17
8
18
14
15
19
27
26
20
3

Артикул

Название

Примечание

Количество

A60510

LAMP

ATTACHMENT - lamp, for 12" fender, W/O Cab, Includes: Ref. 3 - 5

1шт.

A59724

HEADLAMP

LAMP - front cultivator, for 12" fender, W/O Cab, Includes: Ref. 3 - 5

2шт.

3

A25213

RETAINER

- sealed beam, for 12" fender, W/O Cab

1шт.

4

A42294

SEALED BEAM UNIT

BULB - sealed beam, for 12" fender, W/O Cab

1шт.

5

D37048

BUSHING

- lamp pivot, for 12" fender, W/O Cab

1шт.

6

D37049

WASHER

- front cultivating mounting, for 12" fender, W/O Cab

2шт.

7

A59725

SPACER

BRACE - front cultivator, for 12" fender, W/O Cab

2шт.

8

129-125

NUT,1/2"-20, G5

for 12" fender, w/o Cab 1/2"-20, G5

2шт.

A60511

LAMP

ATTACHMENT - lamp, for 24" fender, W/O Cab, Includes: Ref. 14 - 21

1шт.

14

A59723

LAMP

- front cultivator, for 24" fender, W/O Cab, Includes: Ref. 15 and 16

2шт.

15

A25213

RETAINER

- sealed beam, for 24" fender, W/O Cab

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, for 24" fender, W/O Cab

1шт.

17

A59698

BEZEL

- cultivator lamp mtg., R.H., for 24" fender, W/O Cab

1шт.

17

A59699

BEZEL

- cultivating lamp mtg., L.H., for 24" fender, W/O Cab

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" oval hd., self-tapping, for 24" fender, W/O Cab

6шт.

19

A59702

RETAINER

- front cultivator lamp, for 24" fender, W/O Cab

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , for 24" fender, w/o Cab Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

For 24" fender, w/o Cab 1/2"-13, G5

2шт.

A61753

ATTACHMENT

- lamp, W/ Cab, Includes: Ref. 25 - 30

1шт.

25

A59723

LAMP

- front cultivator, W/ Cab, Includes: Ref. 26 and 27

2шт.

26

A25213

RETAINER

- sealed beam, W/ Cab

1шт.

27

A42294

SEALED BEAM UNIT

BULB - sealed beam, W/ Cab

1шт.

28

A59702

RETAINER

- front cultivator lamp, W/ Cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.

Выбрано товаров: 25
