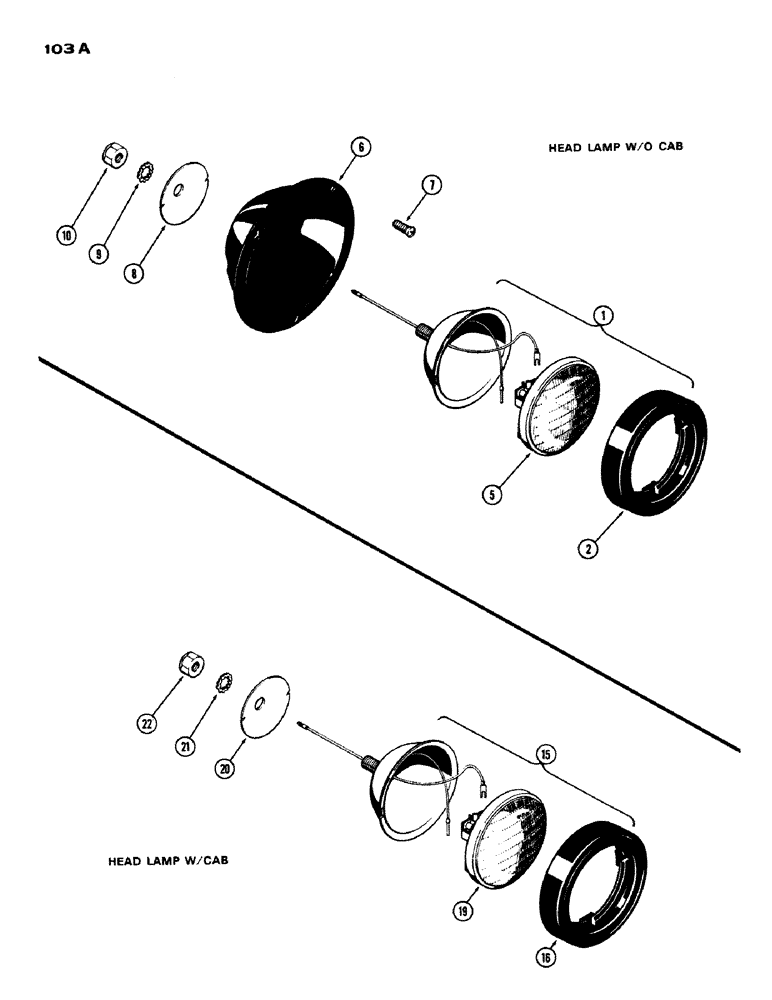

Запчасти Case IH 970 (103A) - LIGHTING EQUIPMENT, HEAD LAMPS (04) - ELECTRICAL SYSTEMS

1

A59701

LAMP

- front head driving, W/O Cab, Includes: Ref. 2 and 5

2шт.

2

A25213

RETAINER

- sealed beam, W/O Cab

1шт.

A24572

LAMP

KIT - head lamp, W/O Cab, Includes: Ref. 5

1шт.

A11276

GASKET

- head lamp (Not Applicable), W/O Cab

1шт.

5

A11280

LAMP

HEAD LAMP - sealed beam, W/O Cab

1шт.

6

A59698

BEZEL

- front head lamp mtg. R.H., W/O Cab

1шт.

6

A59699

BEZEL

- front head lamp mtg., L.H., W/O Cab

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self- tapping, W/O Cab

6шт.

8

A59702

RETAINER

- front head lamp, W/O Cab

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/o Cab Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/o Cab 1/2"-13, G5

2шт.

15

A59701

LAMP

- front head driving, W/ Cab, Includes: Ref. 16 - 19

2шт.

16

A25213

RETAINER

- sealed beam, W/ Cab

1шт.

A24572

LAMP

KIT - head lamp, W/ Cab, Includes: Ref. 19

1шт.

A11276

GASKET

- head lamp (Not Applicable), W/ Cab

1шт.

19

A24572

LAMP

HEAD LAMP - sealed beam, W/ Cab

1шт.

20

A59702

RETAINER

- front head lamp, W/ Cab

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

1шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
