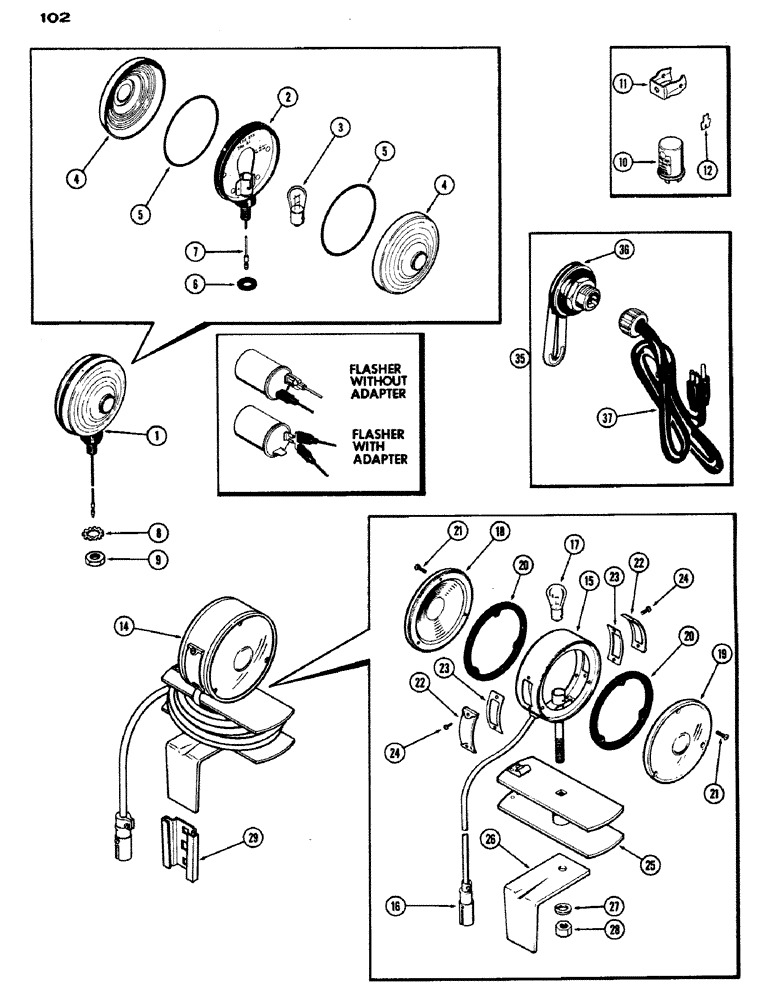

Запчасти Case IH 970 (102) - ELECTRICAL ATTACHING PARTS, FLASHER ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

- flasher, Includes: Ref. 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A41261

LENS

- lamp

2шт.

5

NLS

NO LONGER SERVICED

"O"RING - lamp

2шт.

6

A41263

GASKET - lamp

1шт.

7

A41260

WIRE - lamp

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

9

129-125

NUT,1/2"-20, G5

1шт.

10

A65550

FLASHER UNIT

FLASHER - element

1шт.

11

A34869

BRACKET

- flasher element mounting

1шт.

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. rd. hd. mach

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light) (See Inset)

1шт.

A11066M

LAMP ATTACHMENT - warning, flasher, Includes: Ref. 14 -29

1шт.

14

NS

NOT SERVICED

LAMP ASSY. - (Order A11066M), flasher warning, Includes: Ref. 15 - 28

1шт.

15

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M), flasher warning lamp

1шт.

16

B50259

PLUG

- (to auxiliary socket), flasher warning lamp

1шт.

17

33686

BULB

- lamp (21 C.P.), flasher warning

1шт.

18

B50337

LENS

- lamp (amber), flasher warning

1шт.

19

B53962

LENS

- lamp (red), flasher warning

1шт.

20

B50317

GASKET - lens, flasher warning lamp

2шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6 x 1/2" N.C., rd. hd., flasher warning lamp

6шт.

22

B50328

LENS - lamp, side (clear), flasher warning

2шт.

23

B50329

GASKET - side lens, flasher warning lamp

2шт.

24

182-43

SCREW - side lens, #6 x 5/16" N.C., rd. hd., flasher warning lamp

4шт.

25

B50330

SPOOL - lamp cord reel, flasher warning

1шт.

26

B50331

BRACKET - lamp mounting, flasher warning

1шт.

27

92-7

LOCK WASHER,7/16"

flasher warning lamp 7/16"

1шт.

28

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, flasher warning lamp

1шт.

37

A42297

LAMP

CORD - electric, w/plugs, flasher warning lamp

1шт.

29

A8179

SOCKET

- lamp positioning, flasher warning

1шт.

35

A42279

HEATER

ASSY. - cylinder block water, flasher warning lamp, Includes: Ref. 36

1шт.

36

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O"RING - heater retaining, flasher warning lamp

1шт.
