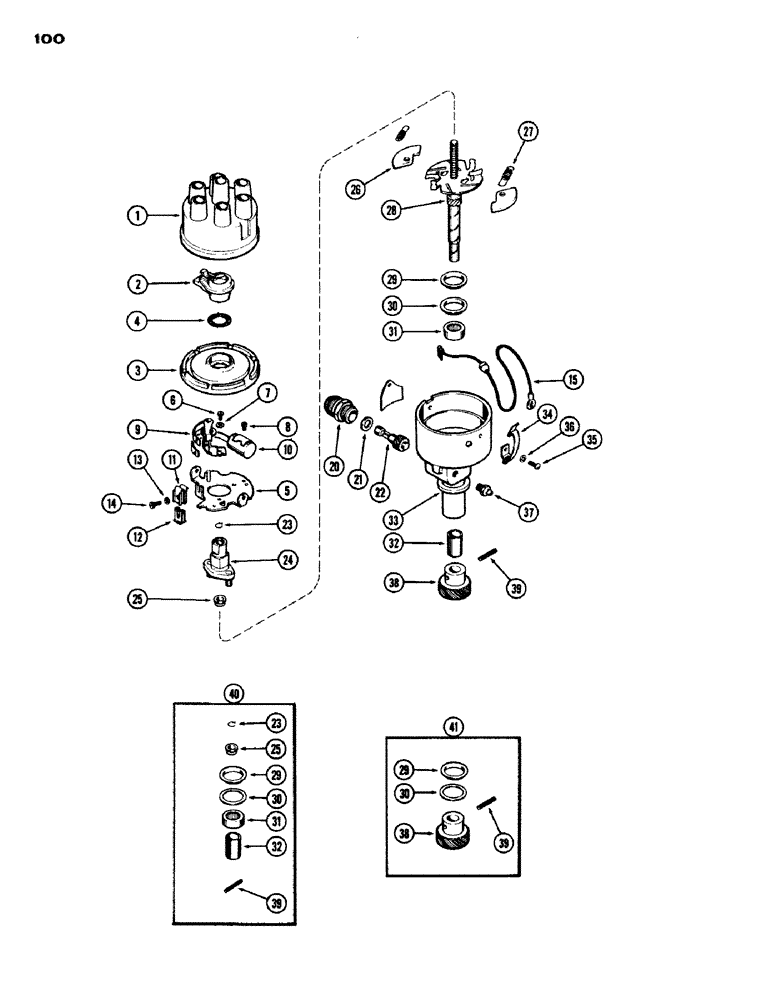

Запчасти Case IH 970 (100) - DISTRIBUTOR, (377B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A58836
DISTRIBUTOR - (Prestolite #IBT-6404A), Includes: Ref. 1 - 39
1шт.
1
A24565
CAP
ASSY.
1шт.
3
A24763
PLATE
- seal, Includes: Ref. 4
1шт.
4
A24764
WASHER
- felt
1шт.
5
A40330
PLATE
ASSY. - breaker, Includes: Ref. 6 - 14
1шт.
6
A24776
SCREW,Locking, #8 - 32 x 3/16"
- contact set, #8-32 x 3/16"
1шт.
7
195-509
WASHER,3/16"
- 3/16 x 3/8 x 1/16"
1шт.
A40930
KIT
POINT AND CONDENSER KIT - (Not Illust.), Includes: Ref. 9 and 10
1шт.
9
NSS
NOT SOLD SEPARAT
CONTACT SET
1шт.
10
NSS
NOT SOLD SEPARAT
CONDENSER
1шт.
11
A24774
CLIP
- retaining
1шт.
12
A44287
KIT
INSULATION - clip screw
1шт.
13
195-506
WASHER,#6
- 5/32 x 5/16 x 1/32"
1шт.
14
A24775
SCREW,0.138"-32 x 1/32"
- spring clip
1шт.
15
A42179
LEAD - wire
1шт.
20
A24781
HOUSING - tach. drive (incl. bushings)
1шт.
21
A24755
WASHER - thrust, tach. drive
1шт.
22
A24761
SHAFT
AND GEAR - tach. drive
1шт.
23
A24756
SNAP RING - cam retaining
1шт.
24
A42430
CAM AND STOP PLATE
1шт.
25
A24757
SPACER - cam
1шт.
26
A41388
WEIGHT KIT - governor (Set of 2)
1шт.
27
A24835
SET
SPRING KIT - governor weights (Set of 2)
1шт.
28
A41387
SHAFT
- drive
1шт.
29
A24759
WASHER - upper, drive shaft
1шт.
30
A24758
WASHER - lower, drive shaft
1шт.
31
NSS
NOT SOLD SEPARAT
BEARING - needle (Order Ref. 40)
1шт.
32
NSS
NOT SOLD SEPARAT
BEARING - bronze (Order Ref. 40)
2шт.
33
NSS
NOT SOLD SEPARAT
BASE
1шт.
34
A40329
SPRING
CLAMP - cap
2шт.
35
A24779
SCREW - clamp, #8-32 x 5/16"
2шт.
30
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
2шт.
37
219-6
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4" taper
1шт.
38
NSS
NOT SOLD SEPARAT
GEAR - drive (Order Ref. 41)
1шт.
39
138-60
LOCK PIN,1/8" x 15/16", Slotted
PIN, , Gear 1/8" x 15/16", Slotted
1шт.
40
A40331
BEARING
KIT
1шт.
41
A40332
GEAR
KIT
1шт.
Выбрано товаров: 39
