Запчасти Case IH 970 (092) - A59217 STARTER, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

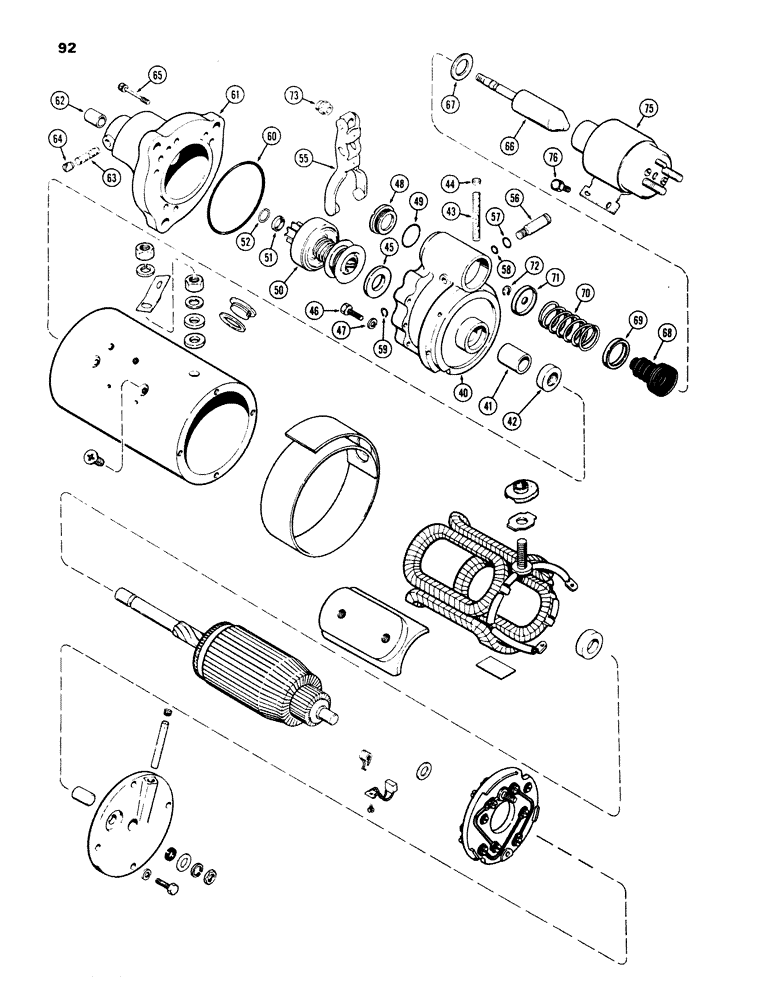

Схема запчастей Case IH 970 - (092) - A59217 STARTER, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
68
48
75
57
73
72
66
58
40
64
47
70
67
56
71
51
46
42
41
43
44
59
61
76
49
62
52
60
55
69
65
45
63
50

Артикул

Название

Примечание

Количество

A59217

STARTER MOTOR

STARTER ASSY. -, Includes: Ref. 49 - 83 and Ref. 1 - 47 on Fig. 90

1шт.

49

A42325

HOUSING ASSY. - shift lever, Includes: Ref. 50 - 53

1шт.

50

A45470

DRIVE

BUSHING - lever housing, 47/64 x 57/64 x 3/4"

1шт.

51

A25407

OIL SEAL

OIL SEAL - lever housing, 21/32 x 1-3/8 x 25/64"

1шт.

52

A41417

WICK

- oil

1шт.

53

221-1849

PLUG

- oil wick hole

1шт.

54

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

55

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

56

A42013

PLUG

- 1-3/16" expansion

2шт.

57

A42064

PLUG

- 5/8" expansion

2шт.

58

A25402

STUD

SHAFT - shift lever

1шт.

59

R15043

WASHER

- brake, lever housing, 25/32 x 2 x 3/32"

1шт.

61

A42331

DRIVE

ASSY. - starter

1шт.

62

R15049

COLLAR

- pinion stop

1шт.

63

R15048

RING

- pinion stop retainer

1шт.

64

A25398

LEVER

- shift

1шт.

65

A25400

PIN

- shift lever to solenoid plunger

1шт.

66

A25406

OIL SEAL

RETAINER - shift lever pin

1шт.

67

A41508

GASKET

- lever housing to drive housing

1шт.

69

A25347

HOUSING ASSY. - drive end, Includes: Ref. 70 - 72

1шт.

70

A40868

BUSHING

- drive housing, 9/16 x 3/4 x 3/4"

1шт.

71

R15023

WICK

- oil

1шт.

72

221-1041

PLUG

- oil wick hole

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW ASSY. - lever housing to drive housing

4шт.

75

A42326

SOLENOID

1шт.

76

R21571

RETAINER

- spring, w/13/32" hole

1шт.

77

A41242

SPRING

- plunger return

1шт.

78

R21572

RETAINER

- spring, w/1-13/64" hole

1шт.

79

A42308

BOOT

- solenoid

1шт.

80

A42008

WASHER

- retainer, 31/32 x 1-7/16 x 1/32"

1шт.

81

A25394

PLUNGER

- solenoid

1шт.

82

A42326

SOLENOID

ASSY. - (See Figure 97)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid attatching

4шт.

Выбрано товаров: 33
