Запчасти Case IH 970 (088) - ELECTRICAL EQUIPMENT AND WIRING, (377B) SPARK IGNITION ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

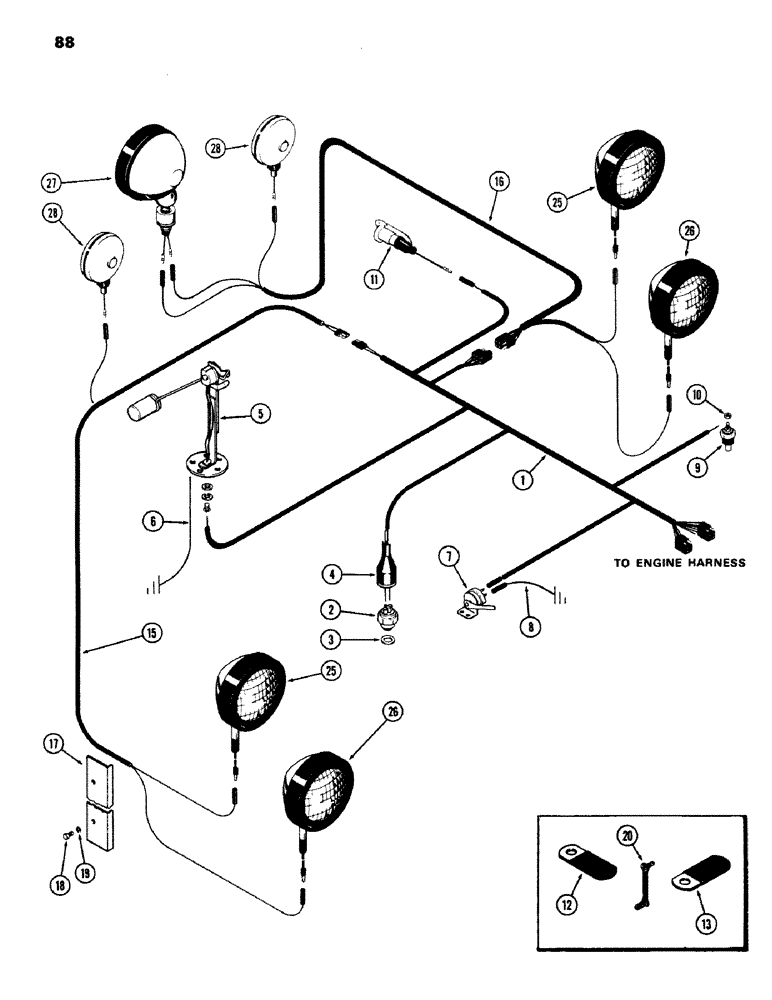

Схема запчастей Case IH 970 - (088) - ELECTRICAL EQUIPMENT AND WIRING, (377B) SPARK IGNITION ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS
28
17
13
28
18
27
15
1
20
10
26
7
25
9
19
5
4
2
6
3
16
8
11
26
12
25

Артикул

Название

Примечание

Количество

1

A62413

HARNESS

- transmission wire (used w/2 flashers)

1шт.

1

A61132

HARNESS - transmission wire (used w/1 flasher)

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

4

A61028

BOOT

- neutral start switch

1шт.

5

A62092

UNIT

- fuel sending (Replaces A59491)

1шт.

6

A59710

ELECTRICAL WIRE

WIRE - fuel gauge sender ground

1шт.

7

A33977

SWITCH

- hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - hand brake switch ground

1шт.

9

A21462

SENDER UNIT

UNIT - trans. temp. sending (Replaces A58984)

1шт.

10

129-661

NUT

- #10 N.F. hex, brass

1шт.

11

REF

INSTRUCTION

SOCKET - auxiliary outlet (See Figure 105B)

1шт.

12

A37179

CLIP

- trans. sending wire

1шт.

13

A22880

CLIP

- trans. wire harness and fuel sending unit

1шт.

15

A62412

HARNESS

- fender wire, R.H. (used w/2 flashers)

1шт.

15

A59708

HARNESS

- fender wire, R.H. (used w/1 flasher)

1шт.

16

A59709

HARNESS

- fender wire, L.H.

1шт.

17

A59720

SHIELD - fender wire harness, L.H. (w/12" fender)

1шт.

17

A59721

SHIELD - fender wire harness, L.H. (w/12" fender)

1шт.

17

A60893

GUARD

SHIELD - fender wire harness, R.H. and L.H. (w/24" fender)

2шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Shield Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

A62547

CLAMP

- fender, Serial Range: wires-fender

7шт.

25

A59701

LAMP

- front head driving (See Figure 103B)

2шт.

26

A59724

HEADLAMP

LAMP - front cultivator (See Figure 105) (for 12" fender)

2шт.

26

A59723

LAMP

- front cultivator (See Figure 105) (for 15" vender)

2шт.

27

A59703

LAMP

- rear flood and tail (See Figure 105B)

1шт.

28

A34853

LAMP

- flasher (See Figure 103)

2шт.

Выбрано товаров: 28
