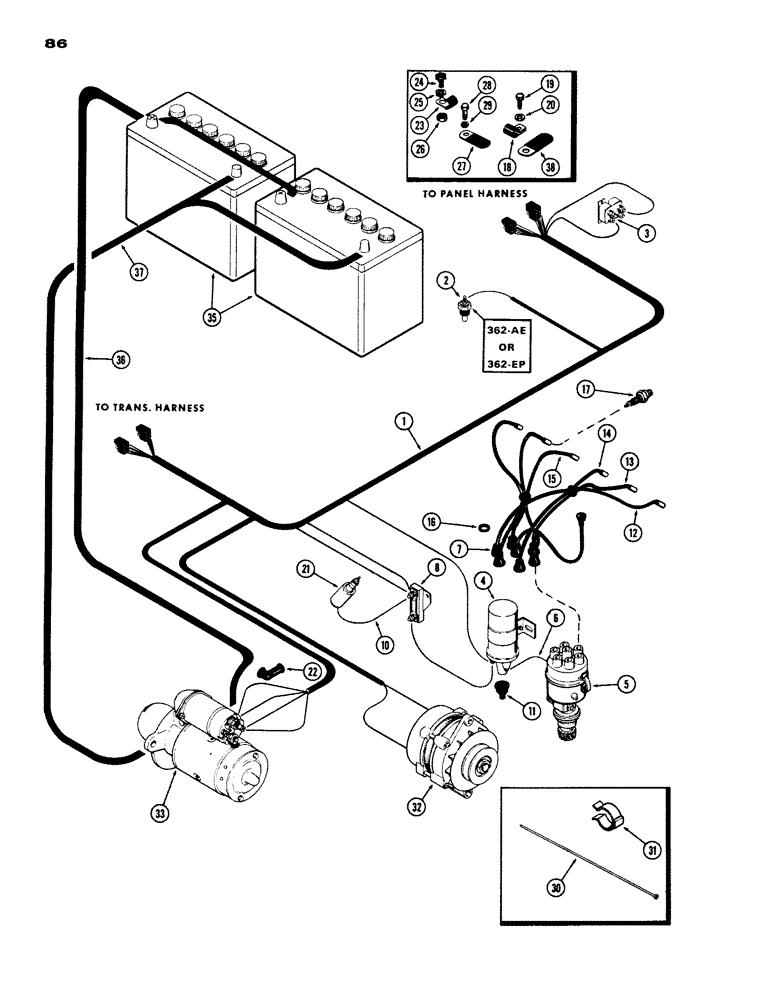

Запчасти Case IH 970 (086) - ELECTRICAL EQUIPMENT AND WIRING, (337B) SPARK IGNITION ENGINE ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A62411

HARNESS

- engine wire (used w/2 flashers)

1шт.

1

A59715

HARNESS

- engine wire (used w/1 flasher)

1шт.

2

F13156

SENDER UNIT

UNIT - engine temperature sending (stamped 362-AE) (used w/A59681 gauge) (See Figure 75) (used w/air conditioner), these gauge-sender combinations are not interchangeable

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending (stamped 362-EP) (used w/A61786 gauge) (See Figure 75) (used w/air conditioner), these gauge-sender combinations are not interchangeable

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending (stamped 362-EP) (used w/A61785 gauge) (See Figure 75) (used w/out air conditioner), these gauge-sender combinations are not interchangeable

1шт.

3

A59704

BREAKER

- circuit

1шт.

4

A58811

COIL

- 12 volt

1шт.

5

A58836

DISTRIBUTOR - (See Figure 101)

1шт.

6

A29180

CABLE

WIRE - distributor to coil (high tension)

1шт.

7

A29338

COVER

NIPPLE - distributor and coil wires

7шт.

8

A24504

RESISTOR

- 12 volt

1шт.

10

A59716

WIRE - carb. solenoid to ignition resistor

1шт.

11

G46803

BOOT

NIPPLE - ignition coil wire

1шт.

12

A26768

CABLE

WIRE - spark plug, #1 cylinder (26" long)

1шт.

13

A26800

CABLE

WIRE - spark plug, #2 cylinder (21" long)

1шт.

14

A31212

ELECTRICAL WIRE

WIRE - spark plug, #3 and 6 cylinders (15" long)

2шт.

15

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 and 5 cylinder (11" long)

2шт.

16

A23258

RING - ignition wires

1шт.

17

G44840

SPARK PLUG

PLUG - spark

4шт.

18

A7922

CLIP

- wire, carb. solenoid

1шт.

19

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

A58808

SOLENOID

- carburetor

1шт.

22

A21753

CAP

- starter positive terminal

1шт.

23

A59718

CLAMP

CLIP - engine wire harness

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

25

195-21

WASHER,5/16"

- lock, 3/8"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

27

A37179

CLIP

- fender and alternator wires

1шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

31

A60894

CLIP

- alternator wire harness to breather tube

1шт.

32

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 83)

1шт.

33

A59671

MOTOR

STARTING MOTOR - (See Figures 83 and 95)

1шт.

35

A58559

BATTERY

- 12 volt

2шт.

36

A62142

CABLE

- battery positive (Replaces A59729)

1шт.

37

A59730

CABLE - battery negative (ground)

1шт.

38

A22883

CLIP

- battery cable

1шт.
