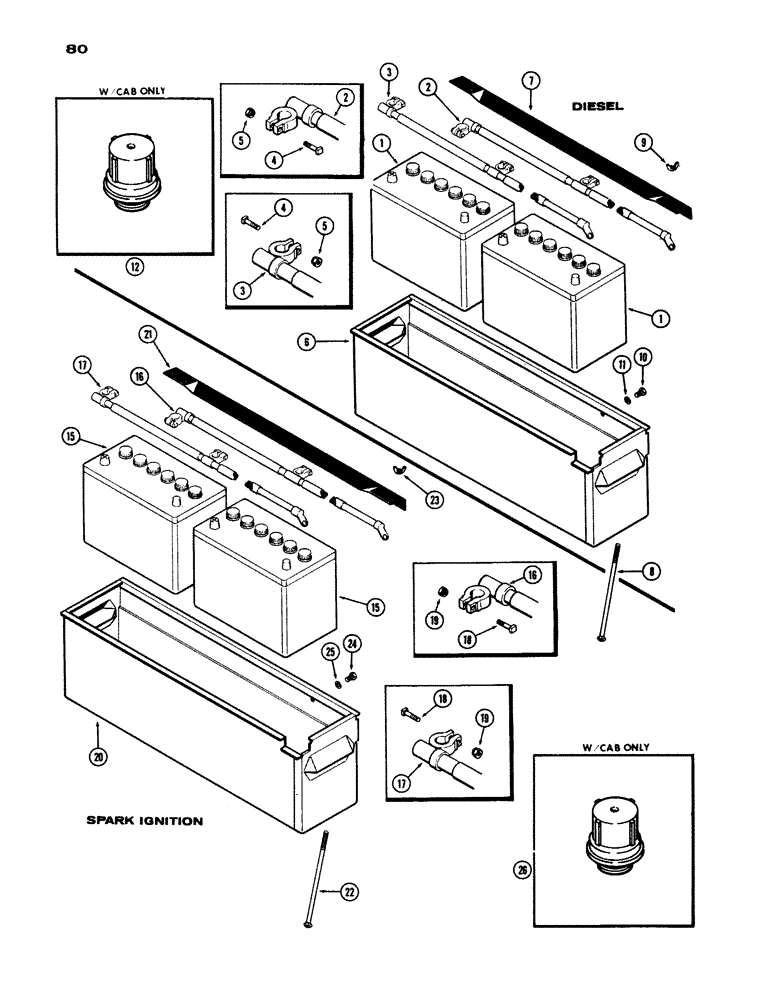

Запчасти Case IH 970 (080) - BATTERY, CABLES, BATTERY BOX (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt (w/o non-spill caps), (401B) diesel engine

2шт.

MODELS WITH CAB ARE EQUIPPED IN PRODUCTION WITH BATTERIES HAVING NON-SPILL CAPS. WHEN REPLACES THESE BATTERIES WITH THE A38411 OR A58559 BATTERIES, THE CAPS ON THESE SERVICE BATTERIES MUST BE PLACED WITH THE NON-SPILL CAPS FROM THE ORIGINAL EQUIPMENT BATTERY OR BY INSTALLING SIX NEW A60553 NON-SPILL CAPS.

1шт.

2

A59728

CABLE

ASSY. - battery, negative (ground) (Incl. Ref. 4 and 5), (401B) diesel engine

1шт.

3

A62141

ELECTRIC CABLE

CABLE ASSY. - battery, positive (Replaces A59727), (401B) diesel engine, Includes: Ref. 4 and 5

1шт.

4

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- cable, 5/16 x 1-3/8" N.C. sq. hd., (401B) diesel engine

2шт.

5

129-516

NUT

- cable bolt, 5/16" N.C. hex., w/shoulder, (401B) diesel engine

2шт.

6

A62137

BOX

ASSY. - battery (Replaces A59556), (401B) diesel engine

1шт.

7

A59173

CLAMP

- battery hold down, (401B) diesel engine

1шт.

8

11-5160

BOLT

- battery hold down, (401B) diesel engine

2шт.

9

G49020

NUT

- 5/16" N.C. wing, (401B) diesel engine

2шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(401B) Diesel engine Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

11

92-5

LOCK WASHER,5/16"

(401B) diesel engine 5/16"

1шт.

12

A60553

CAP

- battery, non spill vent, (401B) diesel engine

12шт.

15

A58559

BATTERY

- 12 volt (w/o non-spill caps), (377B) spark ignition engine

2шт.

MODELS WITH CAB ARE EQUIPPED IN PRODUCTION WITH BATTERIES HAVING NON-SPILL CAPS. WHEN REPLACES THESE BATTERIES WITH THE A38411 OR A58559 BATTERIES, THE CAPS ON THESE SERVICE BATTERIES MUST BE PLACED WITH THE NON-SPILL CAPS FROM THE ORIGINAL EQUIPMENT BATTERY OR BY INSTALLING SIX NEW A60553 NON-SPILL CAPS.

1шт.

16

A59730

CABLE ASSY. - battery negative (ground) (Incl. Ref. 18 and 19), (377B) spark ignition engine

1шт.

17

A62142

CABLE

ASSY. - battery positive (Replaces A59729), (377B) spark ignition engine, Includes: Ref. 18 and 19

1шт.

18

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- cable, 5/16 x 1-3/8" N.C. sq. hd., (377B) spark ignition engine

2шт.

19

129-516

NUT

- able bolt, 5/16" N.C. hex, w/shoulder, (377B) spark ignition engine

2шт.

20

A62137

BOX

ASSY. - battery (Replaces A59556), (377B) spark ignition engine

1шт.

21

A59173

CLAMP

- battery hold down, (377B) spark ignition engine

1шт.

22

11-5160

BOLT

- battery hold down, (377B) spark ignition engine

2шт.

23

G49020

NUT

- 5/16" N.C. wing, (377B) spark ignition engine

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(377B) Spark ignition engine Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

25

92-5

LOCK WASHER,5/16"

(377B) spark ignition engine 5/16"

1шт.

26

A60553

CAP

- battery, non-spill vent, (377B) spark ignition engine

12шт.
