Запчасти Case IH 970 (075A) - INSTRUMENTS AND WIRING, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

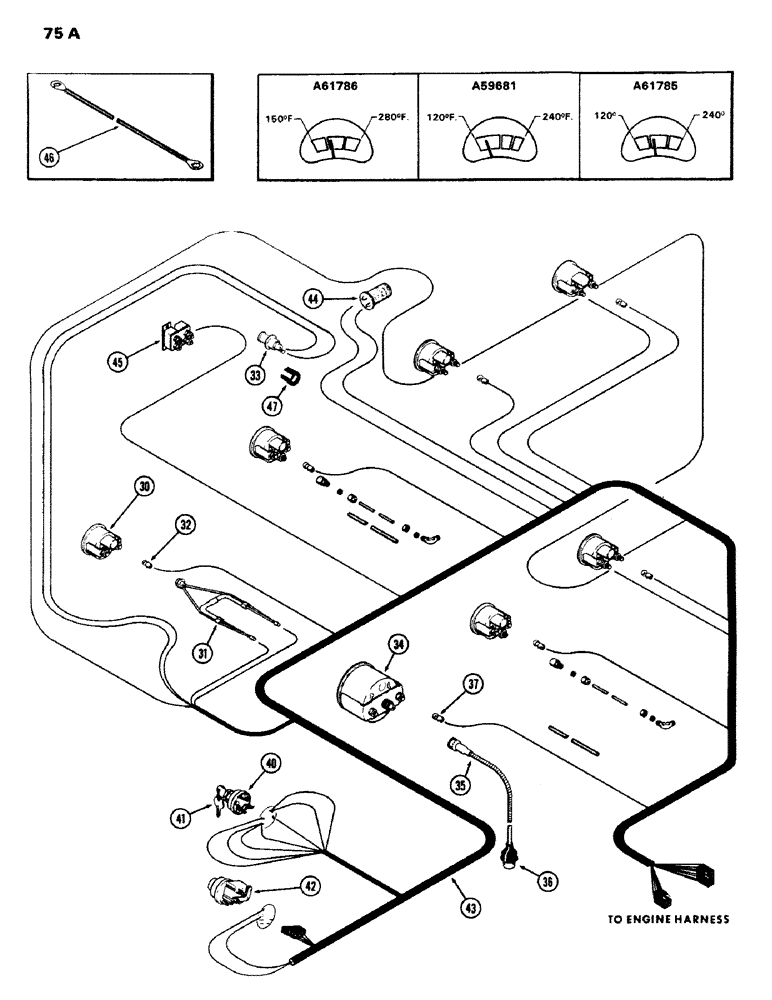

Схема запчастей Case IH 970 - (075A) - INSTRUMENTS AND WIRING, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
32
44
45
30
43
35
42
34
37
33
41
31
40
47
46
36

Артикул

Название

Примечание

Количество

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE AND WIRE - alt. warning lamp

1шт.

32

A14553

BULB

- alternator warning lamp (Replaces T29381)

1шт.

33

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12V flasher (red)

1шт.

34

A59690

TACHOMETER

ASSY.

1шт.

35

A59691

CABLE

ASSY. - tachometer drive, w/boot, Includes: Ref. 36

1шт.

36

A24523

KIT

- tachometer cable repair

1шт.

37

A14553

BULB

- tachometer light (Replaces T29381)

1шт.

40

A59693

SWITCH

ASSY. - ignition and starting

1шт.

41

A60319

KEY

ASSY. - starting (set of 2) (Replaces A42212)

1шт.

42

REF

INSTRUCTION

SWITCH ASSY. - lights (See Figure 105B)

1шт.

43

A59705

HARNESS

- inst. panel wire

1шт.

44

A65550

FLASHER UNIT

- 12 volt, w/sealing gasket

1шт.

45

A59704

BREAKER

- circuit, 80 amp. (See Figure 83)

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.

47

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

Выбрано товаров: 17
