Запчасти Case IH 970 (072) - CARBURETOR, (377B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

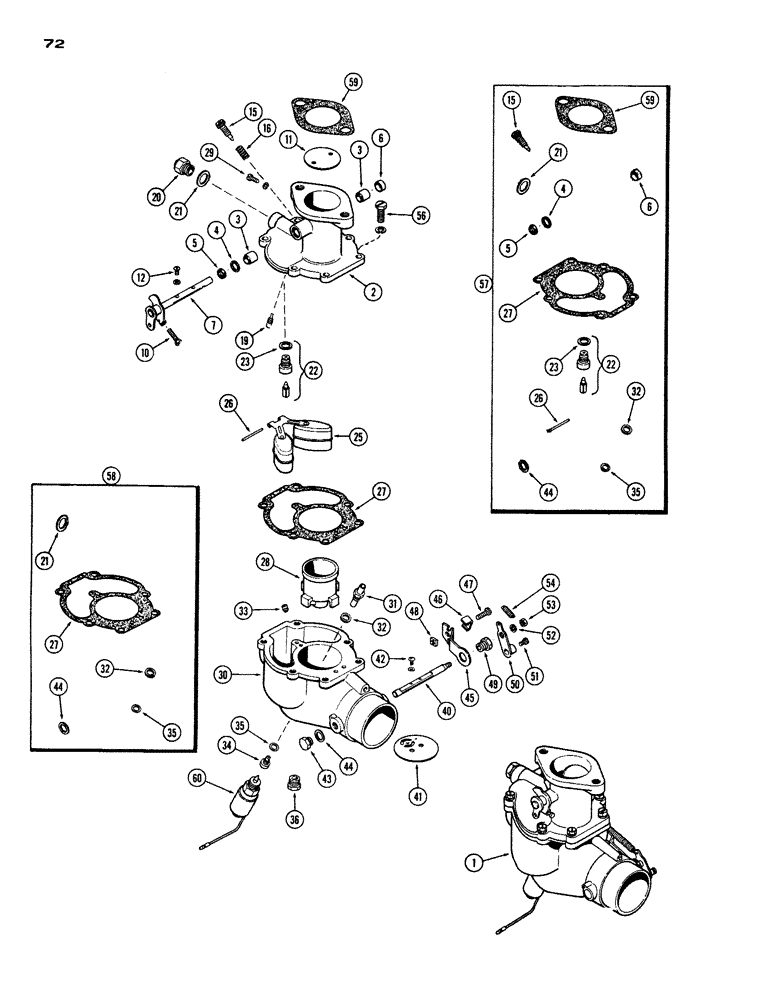

Схема запчастей Case IH 970 - (072) - CARBURETOR, (377B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
48
21
60
45
10
42
44
15
30
22
7
40
32
5
28
27
33
19
34
51
31
4
47
6
56
22
53
21
35
54
25
6
26
12
32
15
11
44
16
59
43
27
21
59
35
32
50
26
23
5
29
46
27
20
3
3
35
52
57
58
23
1
2
44
36
41
49
4

Артикул

Название

Примечание

Количество

1

A62521

CARBURETOR

ASSY. - (Zenith #013478A) (Replaces A62044 and A60694), Includes: Ref. 2 - 60

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order Ref. 1), Includes: Ref. 3 - 6

1шт.

3

A42820

BEARING - needle, throttle shaft

2шт.

4

A40007

SEAL

- throttle shaft

1шт.

Part of repair kit P/N A24905

1шт.

5

A40008

RETAINER - throttle shaft seal

1шт.

Part of repair kit P/N A24905

1шт.

6

B51438

PLUG

- throttle shaft hole

1шт.

Part of repair kit P/N A24905

1шт.

7

A43372

SHAFT

LEVER AND SHAFT ASSY. - throttle, Includes: Ref. 10

1шт.

10

B51582

SCREW - lever

1шт.

11

A41359

PLATE - throttle

1шт.

12

A24888

SCREW - throttle plate

2шт.

15

B51263

SCREW

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N A24905

1шт.

16

B51407

SPRING

- idle needle tension

1шт.

19

B51301

JET

- idle

1шт.

20

A40319

CONNECTOR - fuel inlet

1шт.

21

B51614

WASHER

- filter

1шт.

Part of repair kit P/N A24905

1шт.

Part of Gasket Kit, P/N A24904

1шт.

22

A25577

VALVE

and SEAT - fuel (matched), Includes: Ref. 23

1шт.

Part of repair kit P/N A24905

1шт.

23

B51618

WASHER

GASKET - fuel valve

1шт.

25

A24891

FLOAT

- fuel

1шт.

26

B51429

AXLE

- float pivot

1шт.

Part of repair kit P/N A24905

1шт.

27

A24889

GASKET

-, Serial Range: body-bowl

1шт.

Part of repair kit P/N A24905

1шт.

Part of Gasket Kit, P/N A24904

1шт.

28

A42421

VENTURI

1шт.

29

B51631

SCREW - venturi

1шт.

30

A24892

BOWL - fuel

1шт.

31

A42423

JET - main discharge

1шт.

32

A24901

WASHER - discharge jet

1шт.

Part of repair kit P/N A24905

1шт.

Part of Gasket Kit, P/N A24904

1шт.

33

A24902

VENT - well

1шт.

34

A42422

JET

- main

1шт.

35

B51624

WASHER

- main jet

1шт.

Part of repair kit P/N A24905

1шт.

Part of Gasket Kit, P/N A24904

1шт.

36

B51541

PLUG

- bowl drain

1шт.

40

A24894

SHAFT - choke

1шт.

41

A24893

PLATE ASSY. - choke

1шт.

42

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

43

B51449

PLUG

- choke shaft hole

1шт.

44

B51618

WASHER

- plug

1шт.

Part of repair kit P/N A24905

1шт.

Part of Gasket Kit, P/N A24904

1шт.

45

B51398

BRACKET ASSY. - choke, Includes: Ref. 46 - 48

1шт.

46

B51402

CLAMP - choke cable

1шт.

47

B51581

SCREW - clamp

1шт.

48

129-76

SQUARE NUT,#8 - 36

- clamp screw

1шт.

49

B51455

SCREW - choke bracket

1шт.

50

B51379

LEVER ASSY. - choke, Includes: Ref. 51

1шт.

51

A25179

SCREW - choke wire retaining

1шт.

52

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Choke lever #10

1шт.

53

129-36

NUT,#8-36

- choke lever retaining

1шт.

54

B51414

SPRING - choke lever return

1шт.

56

A24890

SCREW -, Serial Range: bowl-body

6шт.

57

A24905

KIT

REPAIR KIT - Includes: Ref. 4, 5, 6, 15, 21, 22, 26, 27, 32, 35, 44, 59, 58 and 60

1шт.

58

A24904

KIT

GASKET KIT - Includes Refs. 21, 27, 32, 35 and 44

1шт.

59

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of repair kit P/N A24905

1шт.

60

A33219

SOLENOID

ASSY. - carburetor cut-off

1шт.

Выбрано товаров: 66
