Запчасти Case IH 970 (069A) - FUEL TANK SUPPORTS AND COVERS, (377B) SPARK IGNITION (03) - FUEL SYSTEM

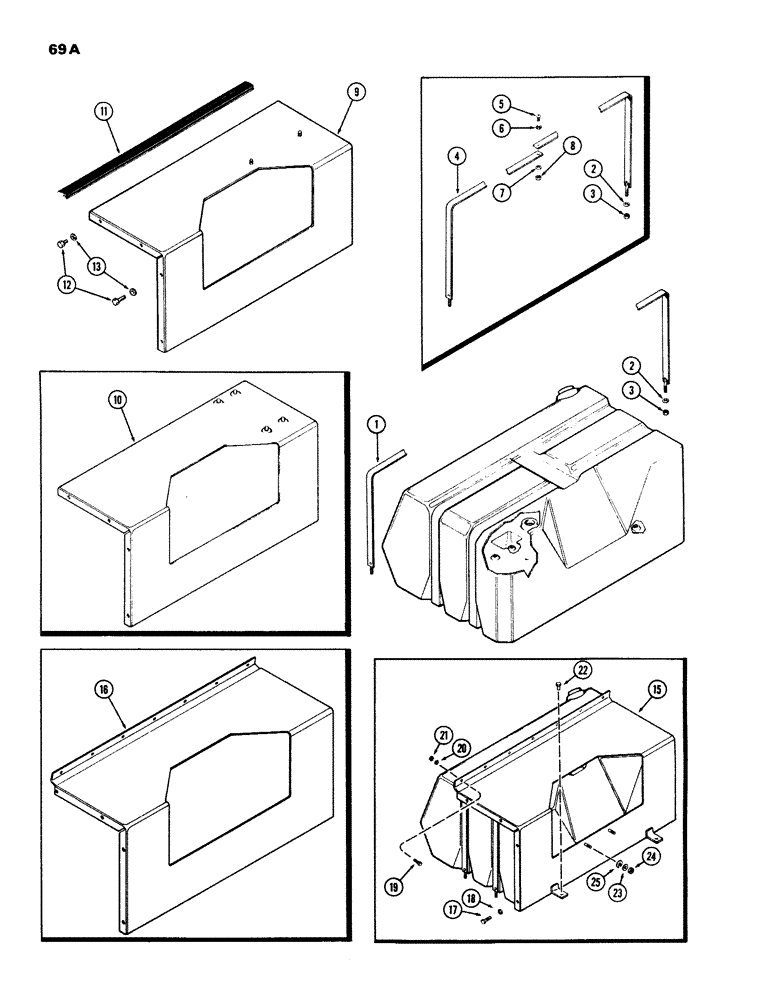

Схема запчастей Case IH 970 - (069A) - FUEL TANK SUPPORTS AND COVERS, (377B) SPARK IGNITION (03) - FUEL SYSTEM
12
17
23
16
24
13
2
21
2
3
19
4
9
25
20
5
11
7
3
8
6
15
10
22
1
18

Артикул

Название

Примечание

Количество

1

A66425

STRAP

ASSY. - fuel tank mounting (Replaces A62055)

2шт.

2

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

4

A62055

STRAP

ASSY. - fuel tank mounting (Order A66425)

4шт.

5

75-49

SCREW - 1/4 x 9/16" rd. hd.

2шт.

6

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

A66153

COVER

- fuel tank (w/o cab) (Replaces A59270)

1шт.

10

A59270

COVER - fuel tank (w/o cab) (Order A66153)

1шт.

11

A64866

GUARD

MOULDING - fuel tank cover, to be attached with adhesive 345-21 (Replaces A59498)

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

13

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

8шт.

15

A66157

COVER

- fuel tank (w/cab) (Replaces A60865)

1шт.

16

A60865

COVER - fuel tank (w/cab) (Order A66157)

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

18

92-6

LOCK WASHER,3/8"

8шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

20

92-5

LOCK WASHER,5/16"

3шт.

21

9635082

NUT,5/16" - 18, Gr 5

3шт.

22

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

23

195-81

WASHER

- 7/16 x 7/8 x 3/32"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

A62687

SHIM,.11" Thk

Cover .11" Thk

1шт.

Выбрано товаров: 24
