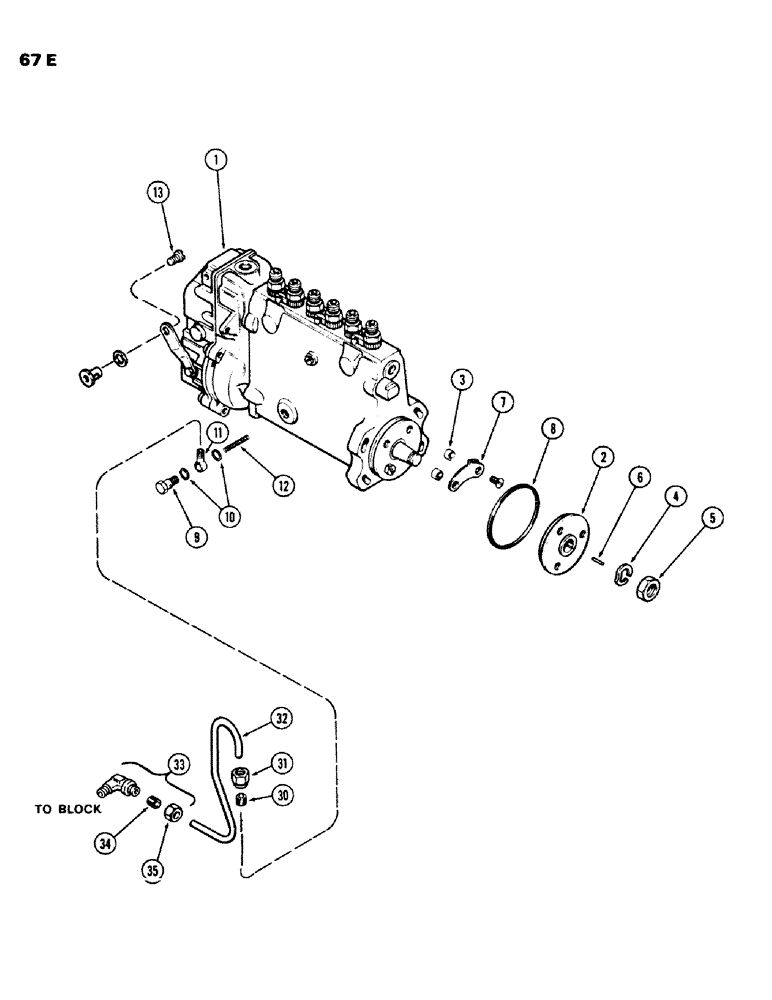

Запчасти Case IH 970 (067E) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, (03) - FUEL SYSTEM

1

A61238

PUMP ASSY. - fuel injection (1900 RPM) (Replaces A58535) (Bosch #PES6A85C420LS2264) (Governor #EP/RSV300-950A2B), Includes: Ref. 2 - 13

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - pointer

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O"RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump, banjo

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A59101

PIVOT

- stop control cable

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

32

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/4" P.T., 90 deg., Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
