Запчасти Case IH 970 (067C) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, W/ FILTER & HAND PUMP, W/ LUBE LINE ON ENG. SIDE OF PUMP (03) - FUEL SYSTEM

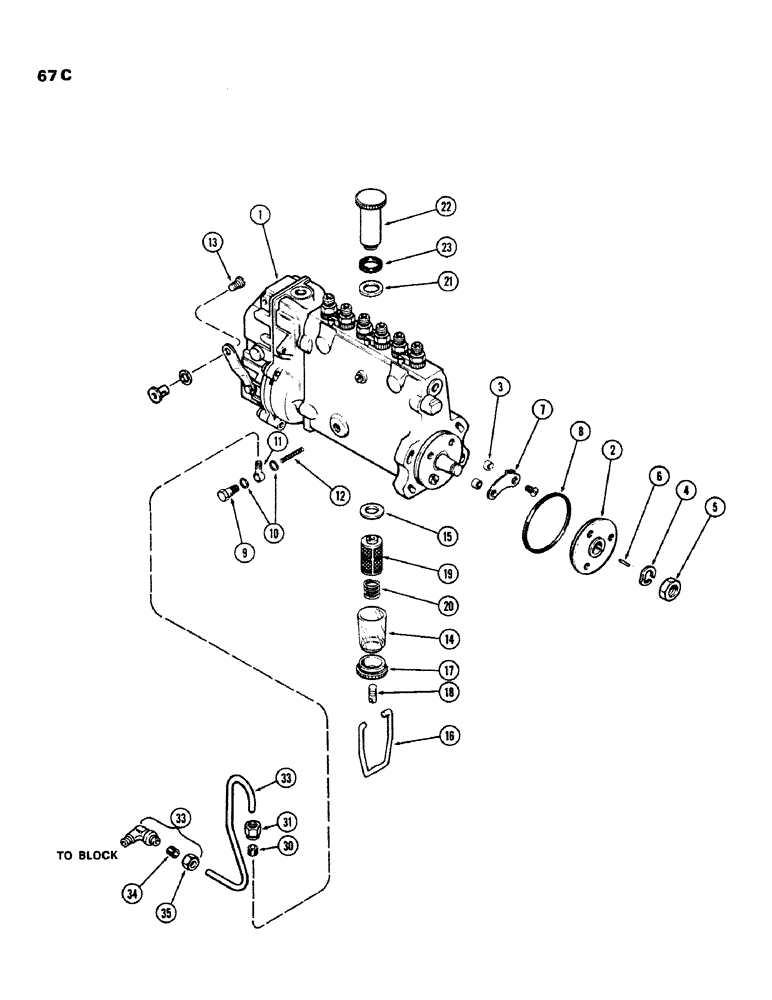

Схема запчастей Case IH 970 - (067C) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, W/ FILTER & HAND PUMP, W/ LUBE LINE ON ENG. SIDE OF PUMP (03) - FUEL SYSTEM
5
14
17
11
22
18
23
20
1
8
35
10
19
2
30
31
15
34
21
4
13
16
33
33
9
6
3
12
7

Артикул

Название

Примечание

Количество

1

A62570

PUMP

ASSY. - fuel injection (2000 RPM) (Bosch #PES6A85C420LS2264) (Governor #EP/RSV375-1000A2B), INcludes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - pointer

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- lock

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O"RING - pump mounting, 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand pump, Includes: Ref. 23

1шт.

23

A44761

GASKET

- primer pump (rubber)

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

32

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/4" P.T., 90 deg., Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

Выбрано товаров: 29
