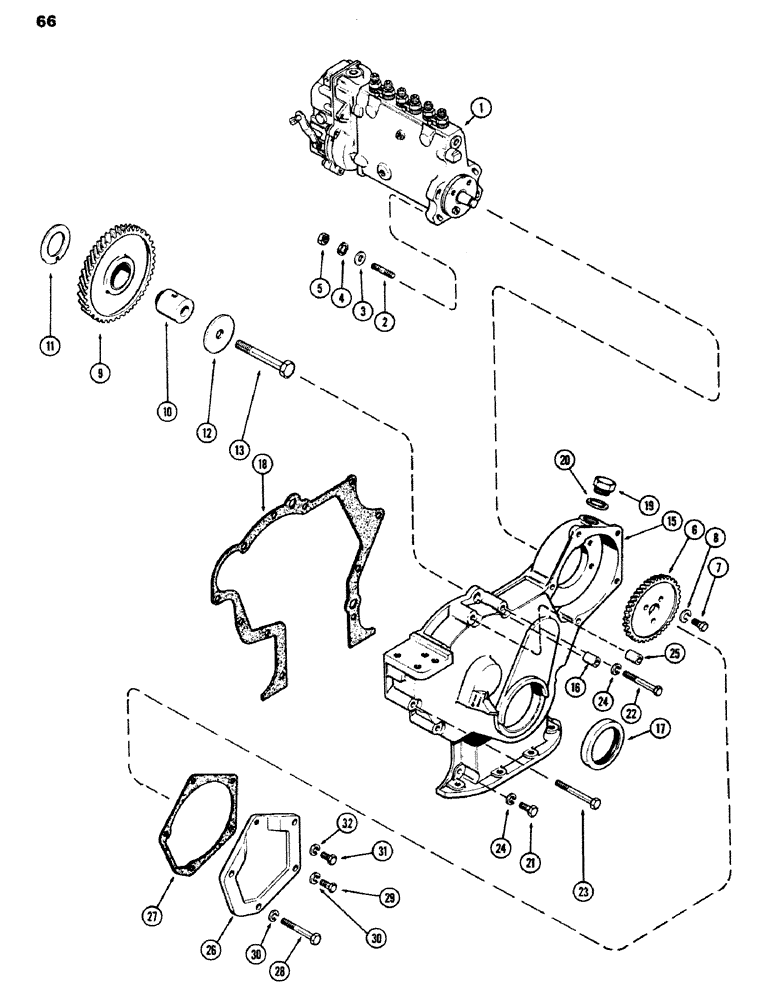

Запчасти Case IH 970 (066) - FUEL INJECTION PUMP AND DRIVE, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figure 67B)

1шт.

2

A58689

STUD

Injection pump mounting, 3/8" N.C. x 1-7/8"

4шт.

3

A57470

WASHER

13/32 x 11/16" x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

A58693

GEAR

Injection pump (48 teeth)

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSY, Idler (53 teeth) (Replaces A58686)

1шт.

10

A58690

SHAFT

Idler gear

1шт.

11

A58691

WASHER

Thrust, idler shaft

1шт.

12

A58692

PLATE

Thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

15

A58609

COVER

ASSY, Timing gear, Includes Ref. 16

1шт.

16

A58611

PIN

Dowel, cover, timing gear

2шт.

17

A62049

OIL SEAL

Crankshaft front, timing gear cover

1шт.

18

A58612

GASKET

Cover to block, timing gear

1шт.

19

A21140

PLUG

Timing window, gear, cover

1шт.

20

A58613

SEALING WASHER

Timing window plug, gear, cover

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover

4шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Timing gear cover

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

3шт.

24

92-6

LOCK WASHER,3/8"

Timing gear cover

9шт.

25

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

26

A61053

COVER

Fuel pump gear, timing

1шт.

27

A58615

GASKET

Fuel pump gear cover, timing

1шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Timing gear cover

2шт.

29

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Timing gear cover

2шт.

30

92-6

LOCK WASHER,3/8"

Timing gear cover

4шт.

31

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover

1шт.

32

92-5

LOCK WASHER,5/16"

Timing gear cover

1шт.
