Запчасти Case IH 970 (064) - FUEL INJECTION FILTER SYSTEM, (401B) DIESEL ENGINE, 1ST USED ENGLISH SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

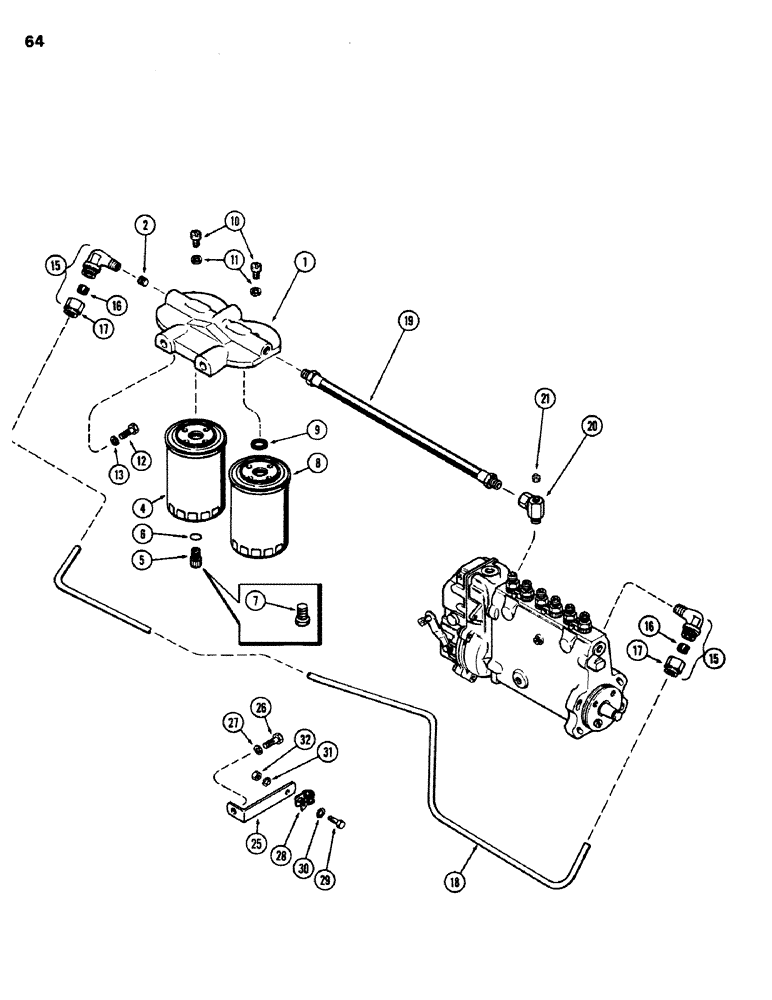

Схема запчастей Case IH 970 - (064) - FUEL INJECTION FILTER SYSTEM, (401B) DIESEL ENGINE, 1ST USED ENGLISH SERIAL NUMBER 2323001 (03) - FUEL SYSTEM
9
10
16
11
21
19
17
15
1
5
8
6
32
27
17
30
20
16
4
29
26
25
31
2
15
28
13
18
12
7

Артикул

Название

Примечание

Количество

1

A62339

HEAD

ASSY. - fuel filter, Includes: Ref. 2

1шт.

2

221-41

PLUG

- 1/8" P.T. sltd. hdless

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacment, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 5 - 7

1шт.

5

G49080

PLUG

- plastic, 3/8" N.F. 12 pt. hd.

1шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O"RING - plastic plug, 3/8 x 9/16 x 9/32"

1шт.

7

221-1661

PLUG

- 1/8" P.T. hex. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 9

1шт.

9

A42315

GASKET

-, Serial Range: filter-head

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter head bleed

2шт.

11

A66619

WASHER

- bleed screw (Replaces A20662)

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 5/16" tube, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62342

TUBE

- pump to 1st stage filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter head to pump (Replaces A58716)

1шт.

20

A20539

FITTING

UNION - switch (in injection pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

25

A64856

BRACKET

- tubes to block (Replaces A58718)

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - for 5/16" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 28
