Запчасти Case IH 970 (063A) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

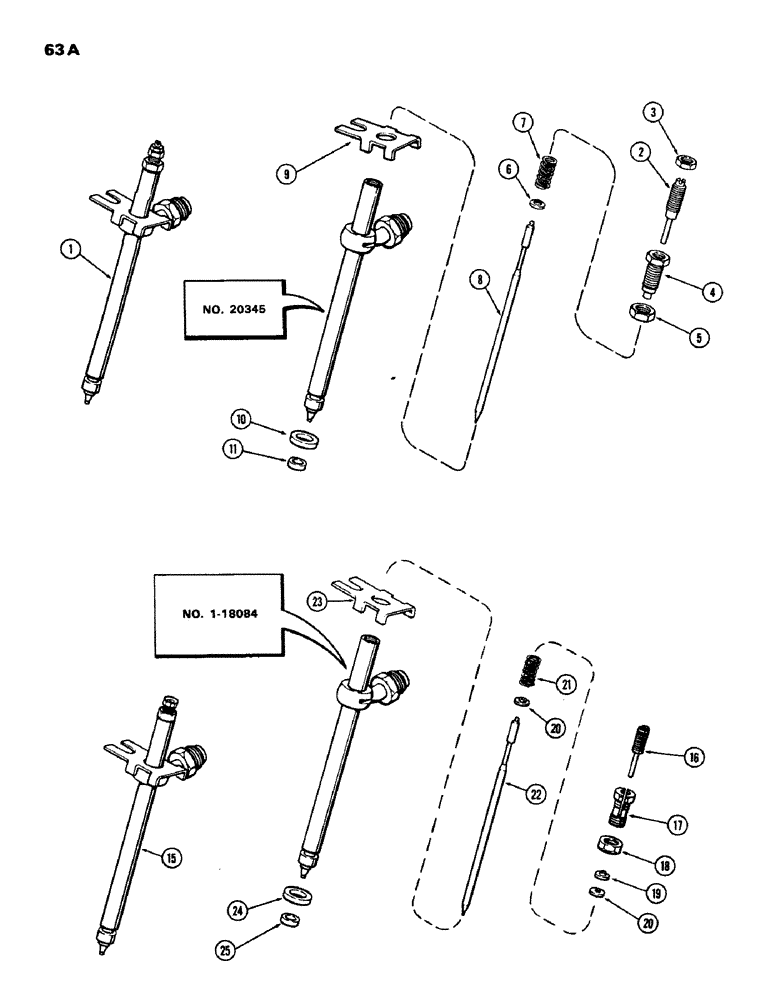

Схема запчастей Case IH 970 - (063A) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (03) - FUEL SYSTEM
1
15
3
7
24
21
11
19
9
25
20
18
10
8
16
4
2
6
23
17
20
22
5

Артикул

Название

Примечание

Количество

1

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's No. 20345 stamped on body) (color coded red) (Replaces A58694), Inc.: Ref. 2 - 11, whenever nozzle is removed from head, the seal ref. 11 or 25 & washer ref.10or24 must bereplacedbeforenozzleisinstalledbackinhead

6шт.

A138322R

REMAN-INJECT NOZZLE

970 (PRIOR TO S/N 8675001) (1/69-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lift adjusting, #10-56 hex., lock

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- pressure adjusting, 5/16"-48 hex., lock

1шт.

6

A44369

SEAT

- spring

1шт.

7

A43601

SPRING

- pressure adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A58694

NOZZLE

ASSY. - fuel injection, , Inc.: Ref. 2 - 11, whenever nozzle is removed from head, the seal ref. 11 or 25 & washer ref.10or24 must bereplacedbeforenozzleisinstalledbackinhead (Supplier's No. I-18084 stamped on body)(Order A62809), Inc. Ref. 16 - 25

6шт.

A138322R

REMAN-INJECT NOZZLE

970 (PRIOR TO S/N 8675001) (1/69-12/78) REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

18

A42424

LOCK NUT

- hex

1шт.

19

A41407

WASHER

- ball

1шт.

20

A44369

SEAT

- spring

2шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Выбрано товаров: 26
