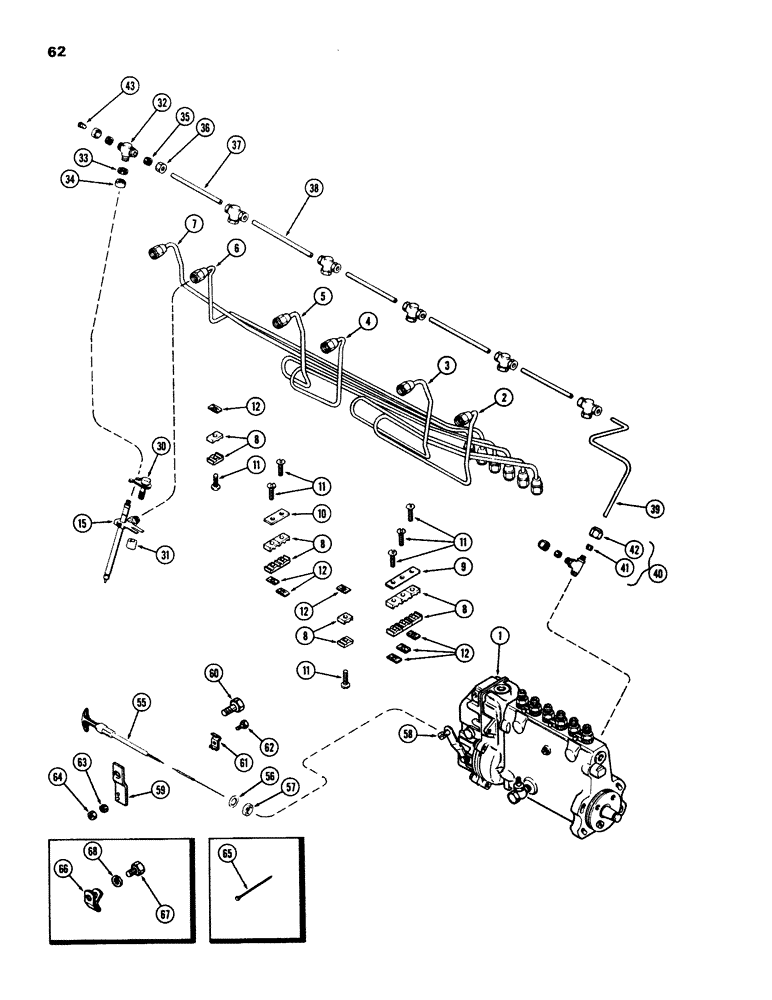

Запчасти Case IH 970 (062) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figure 67B)

1шт.

2

A58702

TUBE

ASSY, fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY, fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY, fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY, fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY, fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY, fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

Injection tube

14шт.

9

A58708

PLATE

Injection tube bracket (6 line)

1шт.

10

A58710

PLATE

Injection tube bracket (4 line)

1шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

Mach

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY, fuel injection (See Figure 63B)

6шт.

30

A58695

CLAMP

ASSY, nozzle

6шт.

31

A58696

SPACER

SPACER - nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY, nozzle lead-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Cap

6шт.

34

A58961

NUT

Cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

For 1/4" tube

12шт.

37

A58965

TUBE

Leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

Leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

Leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

Leak-off check (in injection pump), Includes Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

Leak-off tee, flat hd. (Replaces A38159)

1шт.

45

A58717

TUBE

Oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4" tube, Includes Ref. 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

Oil gallery to pump

1шт.

50

87017024

TUBE NUT,1/2"-24

Oil gallery to pump

1шт.

55

A62113

CONTROL

STOP - fuel control

1шт.

56

193-68

LOCK WASHER,Int Tooth, 3/8"

1шт.

57

129-63

NUT - 3/8" N.C. hex., jam

1шт.

58

A59101

PIVOT

Stop control (on pump)

1шт.

59

A62098

BRACKET

Stop cable clip mtg.

1шт.

60

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket

1шт.

61

B51765

CLIP

Cable retaining

1шт.

62

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

Clip to brkt

1шт.

63

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

1шт.

64

129-16

NUT,#8-32

1шт.

65

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP (Nylon)

2шт.

66

A59768

SPARE PART Stop cable, for repairs order 1-B51765, 1-13-616, 1-173-274, 1-192-16, 1-129-16, and 1-L11541, Serial Range: -2310064

1шт.

67

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

68

92-6

LOCK WASHER,3/8"

1шт.
