Запчасти Case IH 970 (052) - ENGINE GASKET KITS, (377B) SPARK IGNITION ENGINE, 1ST USED ENGLISH SERIAL NUMBER 2322106 (02) - ENGINE

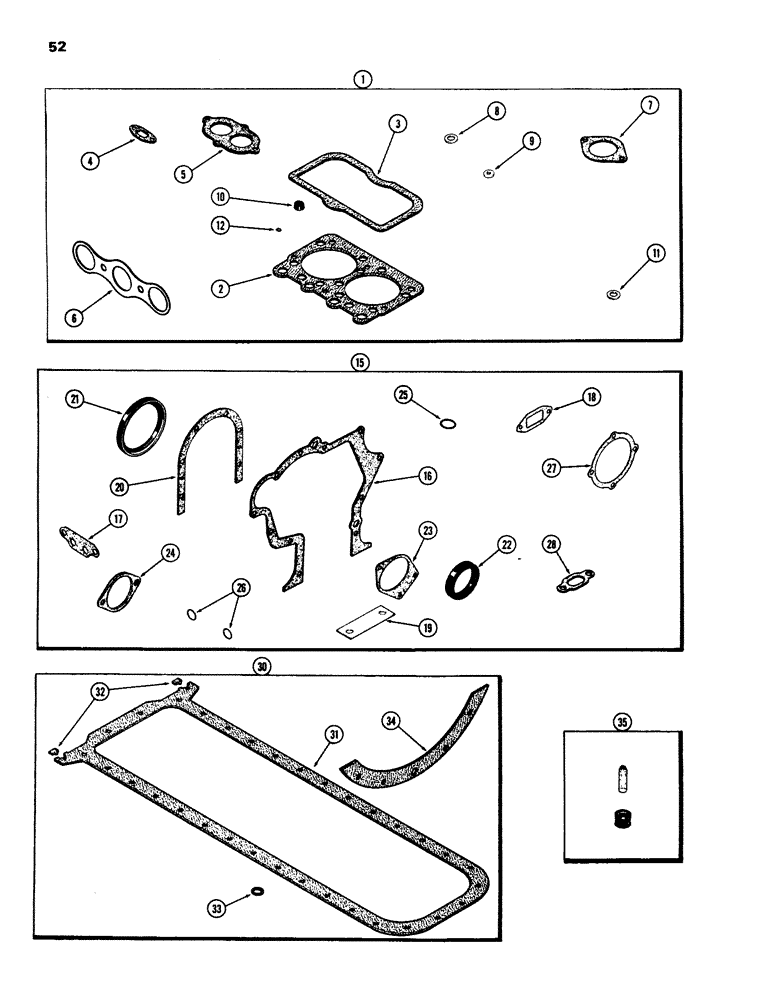

Схема запчастей Case IH 970 - (052) - ENGINE GASKET KITS, (377B) SPARK IGNITION ENGINE, 1ST USED ENGLISH SERIAL NUMBER 2322106 (02) - ENGINE
31
25
26
21
33
27
22
5
2
19
15
23
24
34
12
17
32
35
7
3
30
16
4
9
18
6
11
1
28
10
20
8

Артикул

Название

Примечание

Количество

1

A41832

GASKET

KIT - valve grind, for complete engine overhaul order 1-A41832, 1-A41834 and 1-A43006

1шт.

2

A58795

CYLINDER HEAD GASKET

- cylinder head

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

3шт.

4

A27905

GASKET

- water manifold

6шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A58804

GASKET

- intake and exhaust manifolds

3шт.

7

A27776

GASKET

- carburetor

1шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

9

A23684

GASKET

GASKET - cover studs

6шт.

10

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

SHIELD - oil, intake valve stem

12шт.

11

A34133

GASKET

- breather screw

3шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O"RING - rocker shaft oil tube

3шт.

15

A41834

CYLINDER

GASKET KIT - cylinder block, for complete engine overhaul order 1-A41832, 1-A41834 and 1-A43006

1шт.

16

A58612

GASKET

- timing gear cover

1шт.

17

A58756

OIL PAN GASKET SET

- oil filter base (Not Applicable)

1шт.

18

A58646

GASKET

- water pump

1шт.

19

A58859

SHIM,.005" Thk

Oil pump .005" Thk

2шт.

20

A32830

GASKET

- rear seal retainer

1шт.

21

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

22

A62049

OIL SEAL

- oil, crankshaft front

1шт.

23

A58820

GASKET

- governor mounting

1шт.

24

A58617

GASKET

- pump mounting bracket

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O"RING - distributor

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O"RING - hub oil filter base and oil pump

3шт.

27

A58649

GASKET

- water, Serial Range: pump-block

1шт.

28

A58670

GASKET

- oil cooler opening (not used)

1шт.

30

A43006

GASKET KIT

- oil pan, for complete engine overhaul order 1-A41832, 1-A41834 and 1-A43006

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 30)

1шт.

32

A62402

GASKET

- oil pan rear corners

2шт.

33

A27968

RING

- drain plug

1шт.

34

A58966

GASKET - torque converter (not applicable)

1шт.

35

M20614

SEAL KIT

- valve seal

1шт.

Выбрано товаров: 32
