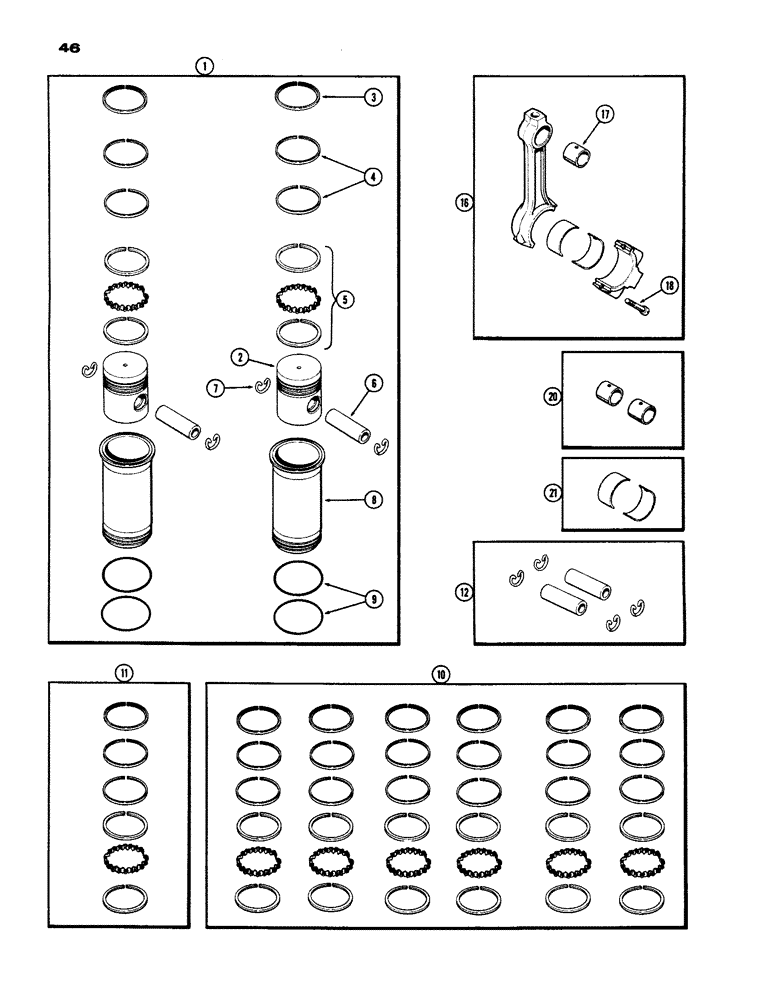

Запчасти Case IH 970 (046) - PISTON ASSEMBLY AND CONNECTING RODS, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A41831

PISTON

AND SLEEVE KIT - (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A33536

PISTON

- cylinder, 4" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd and 4th Groove) (Order Ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

A27844

RING

- snap, piston pin retaining

4шт.

8

A23657

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O"RING - sleeve packing

4шт.

10

A41847

SET OF RINGS

RING KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A41838

KIT

RING KIT - re-ring (Set of 1)

6шт.

12

A21723

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A58788

EXCHANGE CONROD

ROD ASSY. - connecting, Includes: Ref. 17 and 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - 1/2 x 2-3/16" N.F. spec. (Replaces A27848)

2шт.

20

A21721

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A20393

LINING

INSERT ASSY. - connecting rod bearing (Std.)

6шт.

21

A20569

JOURNAL

INSERT ASSY. - connecting rod bearing (-.002")

6шт.

21

A20571

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

6шт.

21

A20573

KIT

INSERT ASSY. - connecting rod bearing (-.020")

6шт.

21

A20576

LINING

INSERT ASSY. - connecting rod bearing (-.030")

6шт.
