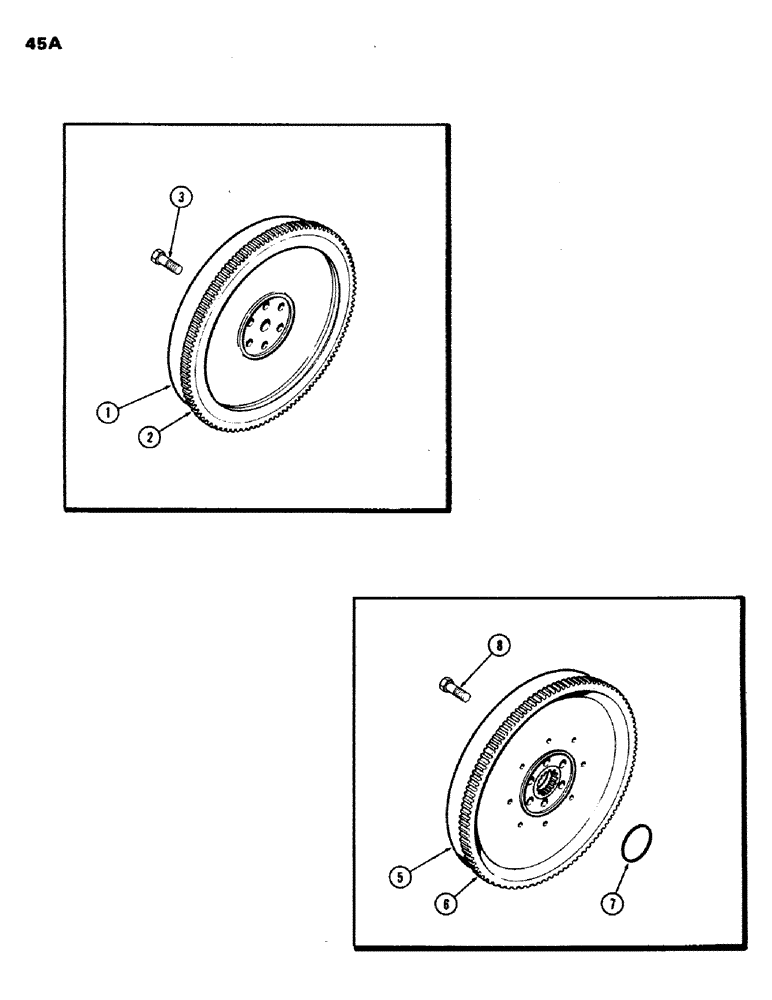

Запчасти Case IH 970 (045A) - FLYWHEELS, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A59040

FLYWHEEL ASSY. - w/o spline (power shift), Includes: Ref. 2

1шт.

2

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

3

114-621

BOLT

- 5/8 x 1-3/8" N.C. hex.

6шт.

5

A59038

FLYWHEEL ASSY. - w/spline (mechanical shift), Includes: Ref. 6

1шт.

6

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

7

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O"RING - flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

8

114-622

X

BOLT - 5/8 x 2" N.F. hex.

6шт.
