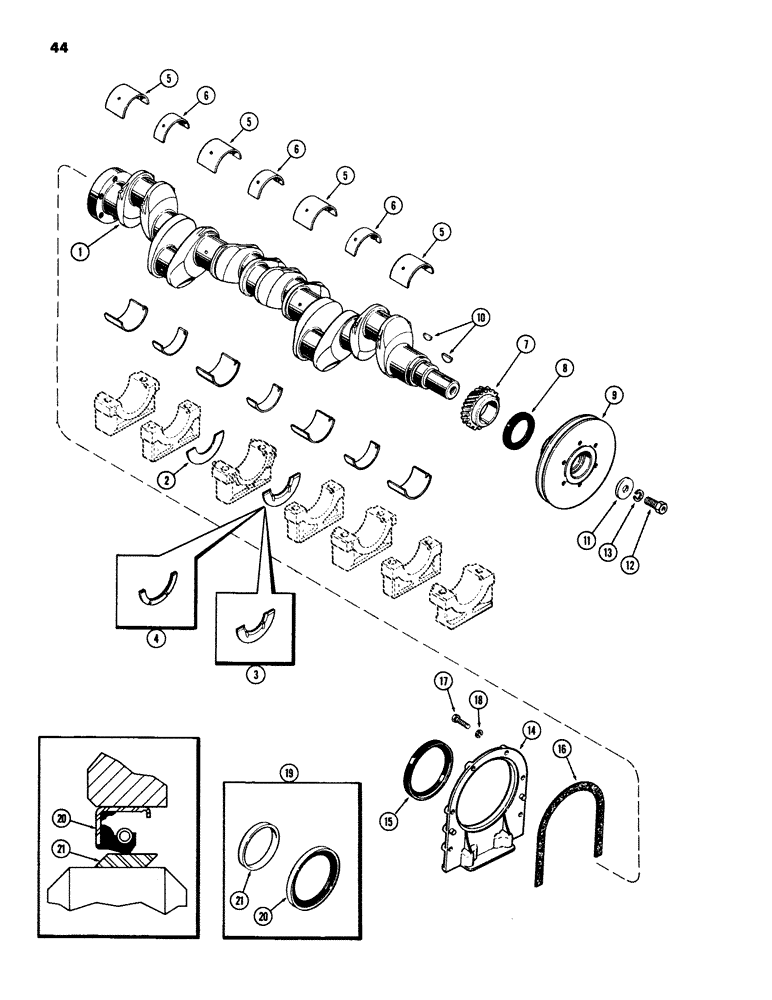

Запчасти Case IH 970 (044) - CRANKSHAFT, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A58860

CRANKSHAFT

1шт.

2

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (.185" thick) (Replaces A58786)

2шт.

3

A42446

WASHER

- thrust, crankshaft (.191" thick) (bronze)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.191" thick) (aluminum)

2шт.

5

A41987

LINING

LINERS - main bearing, wide (Std.)

4шт.

5

A42191

LINING

LINERS - main bearing, wide (-.002")

4шт.

5

A42192

BEARING LINER

LINERS - main bearing, wide (-.010")

4шт.

5

A42193

LINER

S - main bearing, wide (-.020")

4шт.

5

A42194

LINING

LINERS - main bearing, wide (-.030")

4шт.

6

A20394

LINING

LINERS - main bearing, narrow (Std.)

3шт.

6

A20579

LINING

LINERS - main bearing, narrow (-.002")

3шт.

6

A20582

LINING

LINERS - main bearing, narrow (-.010")

3шт.

6

A20585

KIT

LINERS - main bearing, narrow (-.020")

3шт.

6

A20588

KIT

LINERS - main bearing, narrow (-.030")

3шт.

7

A27837

GEAR

- crankshaft

1шт.

8

A62049

OIL SEAL

- crankshaft, front, 2-5/8 x 3-5/8 x 29/64"

4шт.

9

A58746

PULLEY - fan drive

1шт.

10

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

11

A27903

WASHER

- drive pulley

1шт.

12

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

A57457

RETAINER

- crankshaft rear oil seal

1шт.

15

A62050

OIL SEAL

- crankshaft, rear, 4-11/16 x 5-3/4 x 1/2"

1шт.

16

A32830

GASKET

- retainer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A43194

KIT

- crankshaft wear seal, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, wear, kit

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, kit

1шт.
