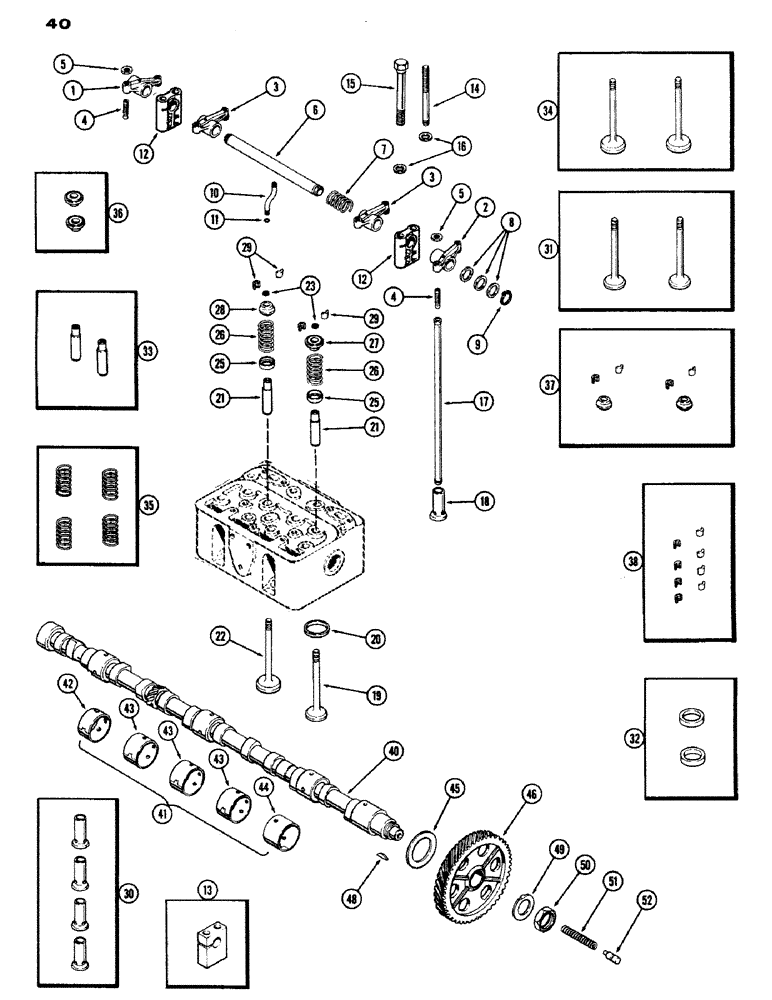

Запчасти Case IH 970 (040) - VALVE MECHANISM AND CAMSHAFT, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve (1st, 3rd and 5th cylinders), Includes: Ref. 4 and 5

3шт.

2

A22326

ROCKER

ARM ASSY. - rocker, exhaust valve (2nd, 4th and 6th cylinders), Includes: Ref. 4 and 5

3шт.

3

A22322

ROCKER

ARM ASSY. - rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

1шт.

6

A57532

SHAFT

ASSY. - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A27879

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O"RING - rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

- rocker arm shaft (1st used engine serial no. 2307267)

6шт.

13

A27881

BRACKET

- rocker arm shaft to engine, Serial Range: -2370267

4шт.

14

A60885

STUD

- rocker arm support, valve cover and lifting eye (7/16" N.C. x 6") (Replaces A57990)

6шт.

15

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

8шт.

17

A21060

ROD

- push

12шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 30)

12шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 31)

6шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 32)

6шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - intake and exhaust valves (Order Ref. 33)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 34)

6шт.

23

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

25

A66328

SEAT

- intake and exhaust valve springs

12шт.

26

NSS

NOT SOLD SEPARAT

SPRING - intake and exhaust valve (Order Ref. 35)

12шт.

27

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order Ref. 36)

6шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 37)

6шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order Ref. 38)

24шт.

30

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

3шт.

30

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

3шт.

31

A41841

VALVE

KIT - exhaust (Set of 2)

3шт.

32

A33453

KIT

INSERT KIT - exhaust valve (Set of 2)

3шт.

33

A21673

GUIDE

KIT - valve (Set of 2)

6шт.

34

A41839

LOCK VALVE

VALVE KIT - intake (Set of 2)

3шт.

35

A42895

SPRING

KIT - valve (Set of 4)

3шт.

36

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2)

3шт.

37

A21657

LOCK

RETAINER KIT - intake valve (2 ret. and 4 locks)

3шт.

38

A40352

LOCK

KIT - valve spring (Keepers) (Set of 8)

3шт.

40

A58849

CAMSHAFT - engine

1шт.

41

A23544

BUSHING

KIT - camshaft, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

43

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

45

A21017

WASHER

- camshaft thrust

1шт.

46

A22604

GEAR

- camshaft

1шт.

48

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

1шт.

49

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

50

A26445

NUT

- camshaft

1шт.

51

A27853

SPRING

- plunger, camshaft thrust

1шт.

52

A27852

PLUNGER

- thrust, camshaft

1шт.
