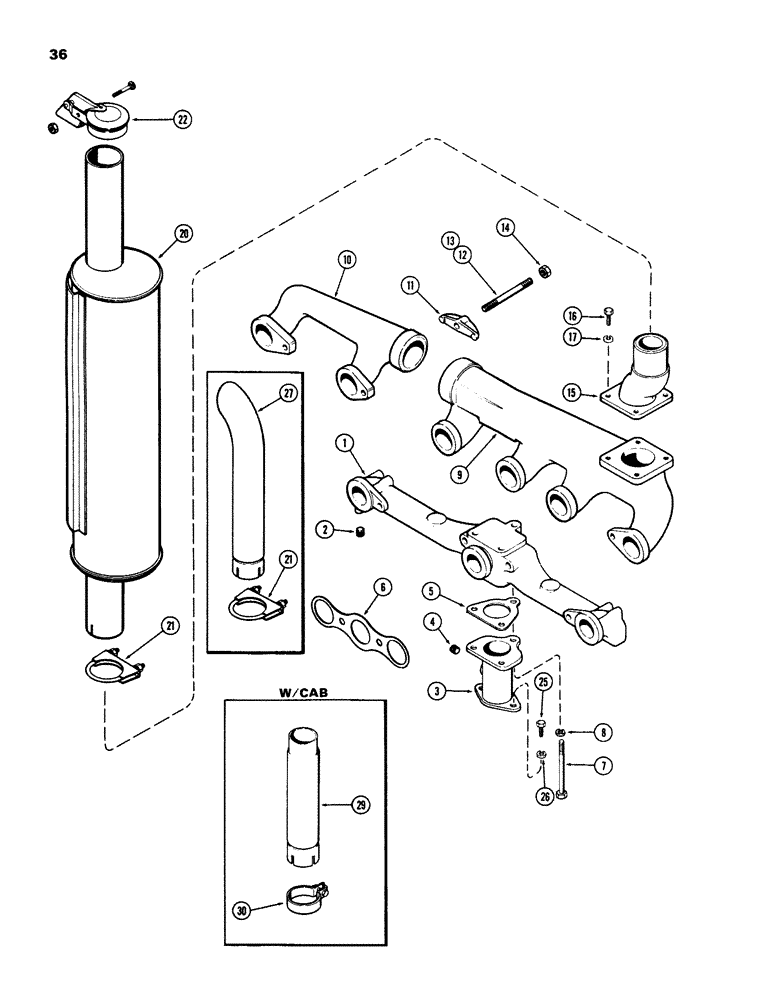

Запчасти Case IH 970 (036) - MANIFOLD AND MUFFLER, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A61009

MANIFOLD - intake

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex. sckt. hd. pipe

1шт.

3

A61160

RISER

RIZER - intake manifold

1шт.

4

221-841

PLUG

- 1/4 hex. sckt. hd. pipe

1шт.

5

A58833

GASKET

- rizer to intake manifold

1шт.

6

A58804

GASKET

- intake and exhaust manifold

3шт.

7

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 4 3/4", G5

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A58840

MANIFOLD - exhaust, front

1шт.

10

A24715

MANIFOLD

- exhaust, rear

1шт.

11

A24368

CLAMP

- intake and exhaust manifolds

6шт.

12

A27911

STUD

- intake and exhaust manifolds, 7/16" N.F. x 6"

4шт.

13

A61052

STUD - intake and exhaust manifolds, 7/16" N.F. x 6-3/4"

2шт.

14

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

6шт.

15

A58835

STACK - exhaust

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

20

A59765

MUFFLER

1шт.

21

A27115

CLAMP

- muffler

1шт.

22

A59766

CAP

- muffler rain

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

A62471

EXTENSION

- exhaust curved (used w/cab)

1шт.

29

A61110

EXTENSION

- exhaust pipe, straight

1шт.

30

A62168

CLAMP

- extension (Order A27115)

1шт.
