Запчасти Case IH 970 (035A) - AIR CLEANER, (377B) SPARK IGNITION ENGINE (02) - ENGINE

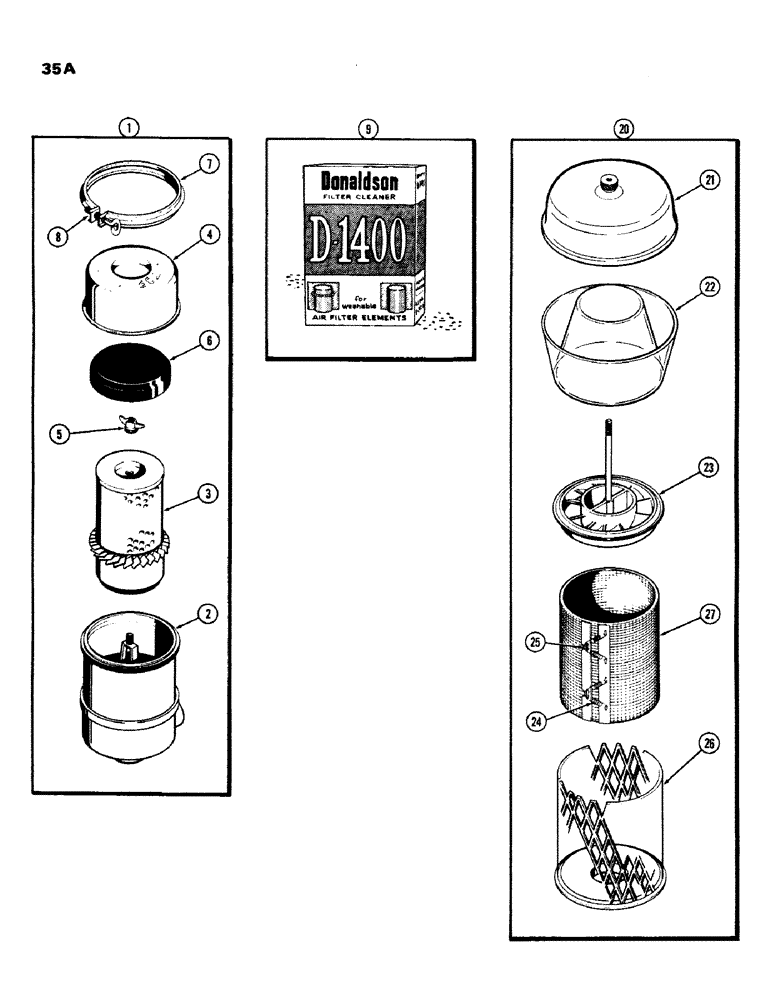

Схема запчастей Case IH 970 - (035A) - AIR CLEANER, (377B) SPARK IGNITION ENGINE (02) - ENGINE
21
4
23
5
20
27
2
1
22
26
9
6
7
24
25
3
8

Артикул

Название

Примечание

Количество

1

A59999

CLEANER

ASSY. - air, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A40866

AIR FILTER

ELEMENT ASSY. - cleaner

1шт.

4

A40951

CUP

ASSY. - cleaner

1шт.

5

F91761

WING NUT

AND WASHER ASSY.

1шт.

6

D37979

BAFFLE

- rubber

1шт.

7

R15731

CLAMP

ASSY. - cleaner

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

20

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - pre-screener (Replaces A59585), Includes: Ref. 21 - 27

1шт.

A42466

CLEANER

COLLECTOR - pre-cleaner (Replaces A42280), Includes: Ref. 21 - 23

1шт.

21

A42465

COVER

- pre-cleaner (Replaces A42281)

1шт.

22

A42467

HOUSING

BODY - pre-cleaner (Replaces A42283)

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - collector, pre-cleaner

1шт.

A42284

SCREEN

PRE-SCREENER, pre-cleaner, Includes: Ref. 24 - 27

1шт.

24

A22780

SPRING

- screen retaining, pre-cleaner

4шт.

25

A22781

CLIP

- retaining spring, pre-cleaner

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - pre-screener, pre-cleaner

1шт.

27

A42286

SCREEN

- pre-screener, pre-cleaner

1шт.

A40866

AIR FILTER

12.68" o/a length, 6.09" dia., pre-cleaner

1шт.

A42224

ELEMENT

13.74" o/a length, 5.25" dia., pre-cleaner

1шт.

A42274

AIR FILTER

11.74" o/a length, 5.25" dia., pre-cleaner

1шт.

Выбрано товаров: 22
