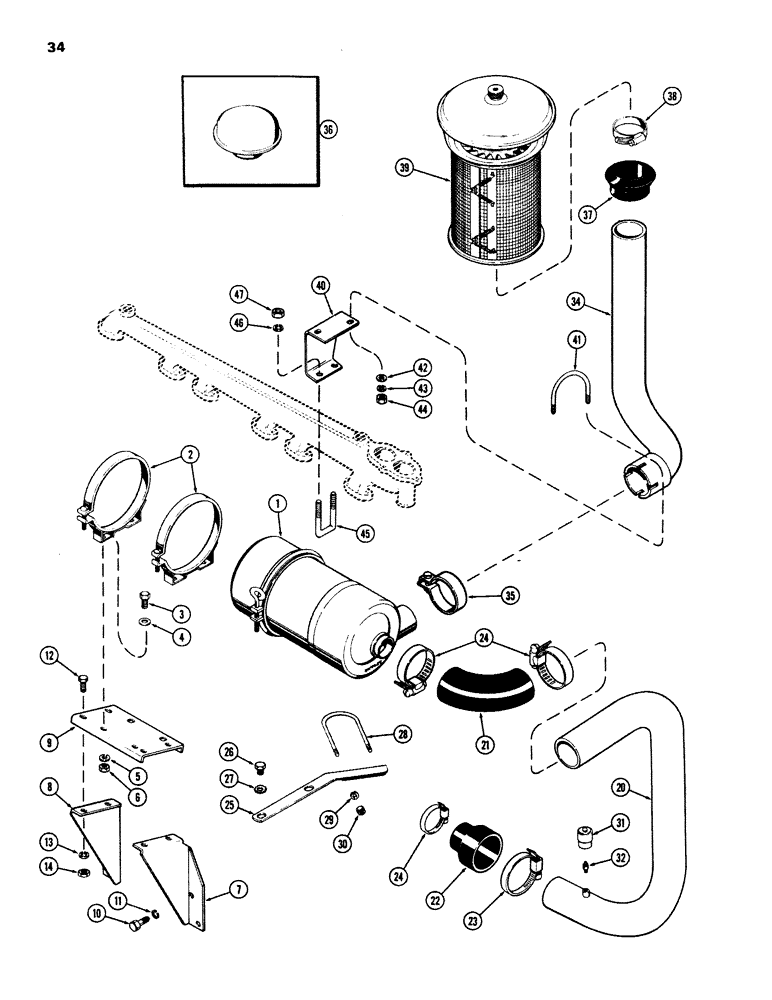

Запчасти Case IH 970 (034) - AIR CLEANER MOUNTING, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A59999

CLEANER

ASSY. - air (See Figure 35B)

1шт.

2

70973

BRACKET

BANDS - air cleaner mounting (Replaces A16485)

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

4

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

7

A59572

BRACKET - air cleaner mounting, front

1шт.

8

A59573

BRACKET - air cleaner mounting, rear

1шт.

9

A59574

PLATE - air cleaner mounting

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

20

A59575

TUBE - air, Serial Range: cleaner-carburetor

1шт.

21

A59576

HOSE - air intake tube to air cleaner

1шт.

22

A59577

HOSE - air cleaner, Serial Range: tube-carburetor

1шт.

23

214-46

X

CLAMP - hose

1шт.

24

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

3шт.

25

A59578

SUPPORT - air cleaner outlet tube

1шт.

26

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 x 3/4" N.C. hex.

2шт.

27

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

28

A59579

U-BOLT

"U"BOLT - air cleaner support, 1/4" N.C.

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

25-104

NUT,1/4"-20, G5

2шт.

31

A59569

INDICATOR

- air restriction

1шт.

32

D36264

FITTING

FILTER - safety

1шт.

34

A59582

TUBE

- air cleaner intake

1шт.

35

A62125

CLAMP

- air cleaner intake tube

1шт.

36

A61277

CAP

- air stack (Replaces A10872)

1шт.

37

A59584

GROMMET

- air cleaner intake tube

1шт.

38

214-42

CLAMP

- air cleaner tube grommet

1шт.

39

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - pre-screener (See Figure 35B)

1шт.
