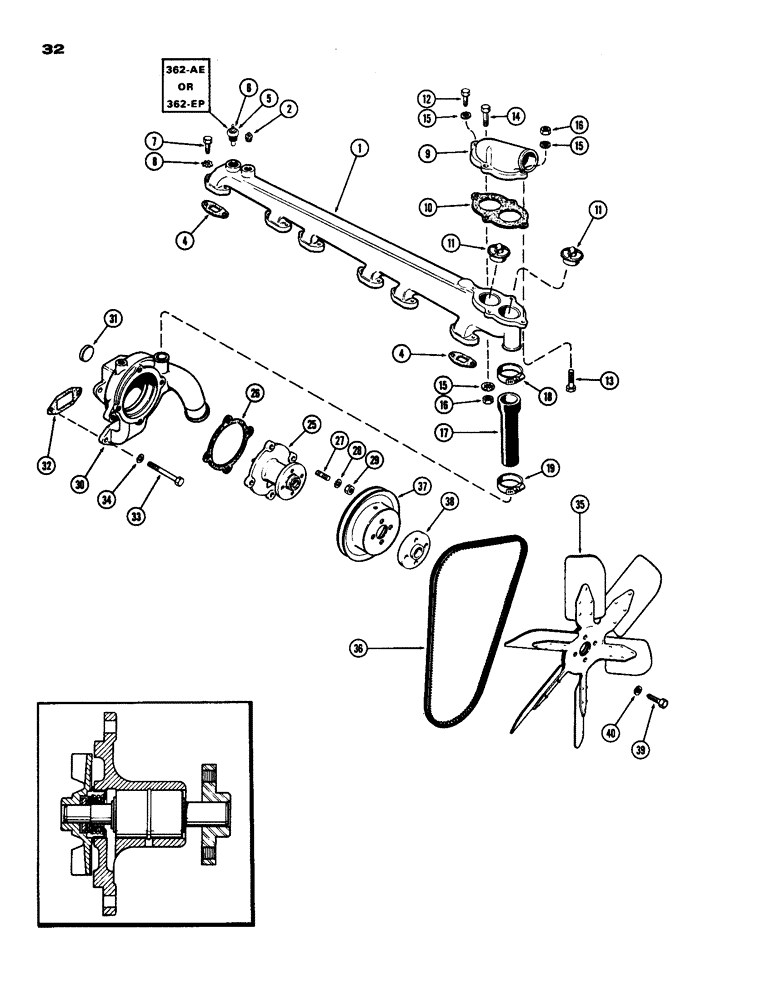

Запчасти Case IH 970 (032) - WATER MANIFOLD AND THERMOSTAT, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A60072

SPARE PART MANIFOLD - water, Includes: Ref. 2

1шт.

2

221-13

PLUG,Sq Hd, 3/8"-18

PLUG - 3/8" P.T. sq. hd.

1шт.

4

A27905

GASKET

GASKET - water manifold

6шт.

5

F13156

SENDER UNIT

- temperature sending (stamped 362-AE) (Used w/A59681 gauge) (See Figure 85) (Used w/air conditioner), these sender-gauge combinations are not interchangable

1шт.

5

A61787

TRANSMITTER

UNIT - temperature sending (stamped 362-EP) (Used w/A61786 gauge) (See Figure 85) (Used w/air conditioner), these sender-gauge combinations are not interchangable

1шт.

5

A61787

TRANSMITTER

UNIT - temperature sending (stamped 362-EP) (Used w/A61785 gauge) (See Figure 85) (Used w/out air conditioner), these sender-gauge combinations are not interchangable

1шт.

6

193-1006

NUT,Keps, w/LW, 1/4"-20

NUT - #10 N.F. hex. (Brass)

1шт.

7

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

12шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

12шт.

9

A32611

SPARE PART HOUSING - thermostat

1шт.

10

A32612

GASKET

GASKET - thermostat housing

1шт.

11

A57641

THERMOSTAT

THERMOSTAT

2шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex.

2шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

3шт.

17

A58829

HOSE

HOSE - water pump by-pass

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose, 1-3/16" to 1-3/4"

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, - by-pass hose #28, 1.31/2.25 Type F Worm

1шт.

25

A62972

PUMP

PUMP ASSY. - water (Replaces A58738)

1шт.

25

1998700C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

25

A48331

CORE-WATER PUMP

Return Number, Water Pump

1шт.

26

A58646

GASKET

GASKET - pump to body, water

1шт.

27

A62234

STUD

STUD - pump to body, 3/8" N.C. x 1-5/16", water

4шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

29

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" N.C. hex. jam, water pump

4шт.

30

A58779

HOUSING

BODY ASSY. - water pump, Includes: Ref. 31

1шт.

31

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type, water pump

1шт.

32

A58649

GASKET

GASKET - body to block, water pump

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, , Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

35

A15606

FAN

FAN, water pump

1шт.

36

A65143

V-BELT,0.69" W x 58.25" L

Fan, Replaces A59763, Water Pump

1шт.

37

A58837

PULLEY

PULLEY - fan driven, water pump

1шт.

38

A58745

SPACER

SPACER - fan blade, 9/16" wide, water pump

1шт.

38

A61283

BUSHING

SPACER - fan blade, 3/4" wide, water pump

1шт.

38

A61268

BUSHING

SPACER - fan blade, 1" wide, water pump

1шт.

39

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used w/A61283 spacer), water pump Hex, 3/8"-16 x 1 3/4", G5

4шт.

39

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

BOLT, (Used w/A58745 spacer), water pump Hex, 3/8"-16 x 1 5/8", G5

4шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, (Used w/A61268 spacer), Water pump Hex, 3/8"-16 x 2", G5

4шт.

40

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.
