Запчасти Case IH 970 (029A) - ENGINE GASKET KITS, (401B) DIESEL ENGINE, USED PRIOR TO ENGLISH SERIAL NUMBER 2322106 (02) - ENGINE

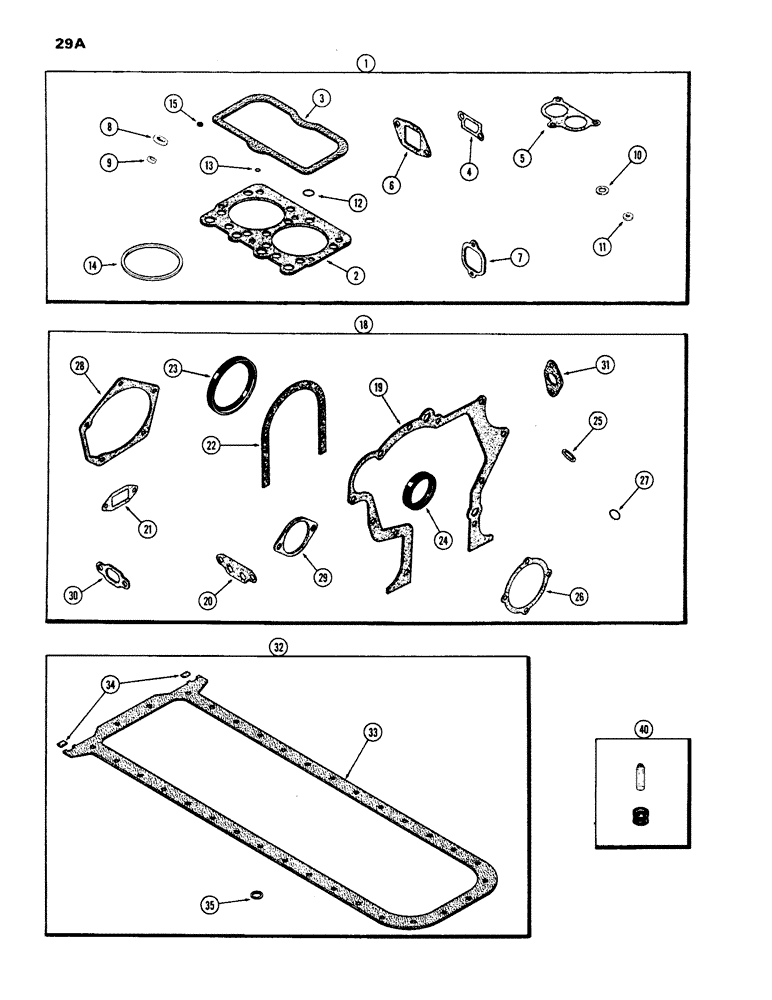

Схема запчастей Case IH 970 - (029A) - ENGINE GASKET KITS, (401B) DIESEL ENGINE, USED PRIOR TO ENGLISH SERIAL NUMBER 2322106 (02) - ENGINE
34
23
29
33
25
1
4
9
21
18
26
12
5
22
30
40
3
32
24
31
8
13
28
6
19
14
2
27
7
35
15
10
20
11

Артикул

Название

Примечание

Количество

1

A42890

VALVE

GASKET KIT - valve grind, for complete engine overhaul order 1-A42890, 1-A42096 and 1-A41846, Includes: Ref. 2 - 15

1шт.

2

A62215

GASKET

- cylinder head

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

GASKET - injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O"RING - rocker shaft oil tube

3шт.

14

A34686

RING

- cylinder head fire, std.

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valve stem

12шт.

18

A42096

GASKET

KIT - cylinder block, for complete engine overhaul order 1-A42890, 1-A42096 and 1-A41846, Includes: Ref. 19 - 31

1шт.

19

A58612

GASKET

- timing gear cover

1шт.

20

A58756

OIL PAN GASKET SET

- oil filter base (Not Applicable)

1шт.

21

A58646

GASKET

- water pump body

1шт.

22

A32830

GASKET

- rear seal retainer

1шт.

23

A62050

OIL SEAL

- crankshaft rear

1шт.

24

A62049

OIL SEAL

- crankshaft front oil

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

26

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O"RING - oil filter base

3шт.

28

A58615

GASKET

- fuel pump cover

1шт.

29

A58617

GASKET

- auxiliary drive cover

1шт.

30

A58670

GASKET

- oil cooler water opening

1шт.

31

A58680

OIL PAN GASKET SET

- oil cooler tube (w/turbo only)

1шт.

32

A41846

KIT

GASKET KIT - oil pan, for complete engine overhaul order 1-A42890, 1-A42096 and 1-A41846, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 36)

1шт.

34

A33017

OIL PAN GASKET SET

- oil pan rear corners

2шт.

35

A58608

GASKET

- oil pan drain plug

1шт.

40

M20614

SEAL KIT

VALVE SEAL SET

3шт.

Выбрано товаров: 34
