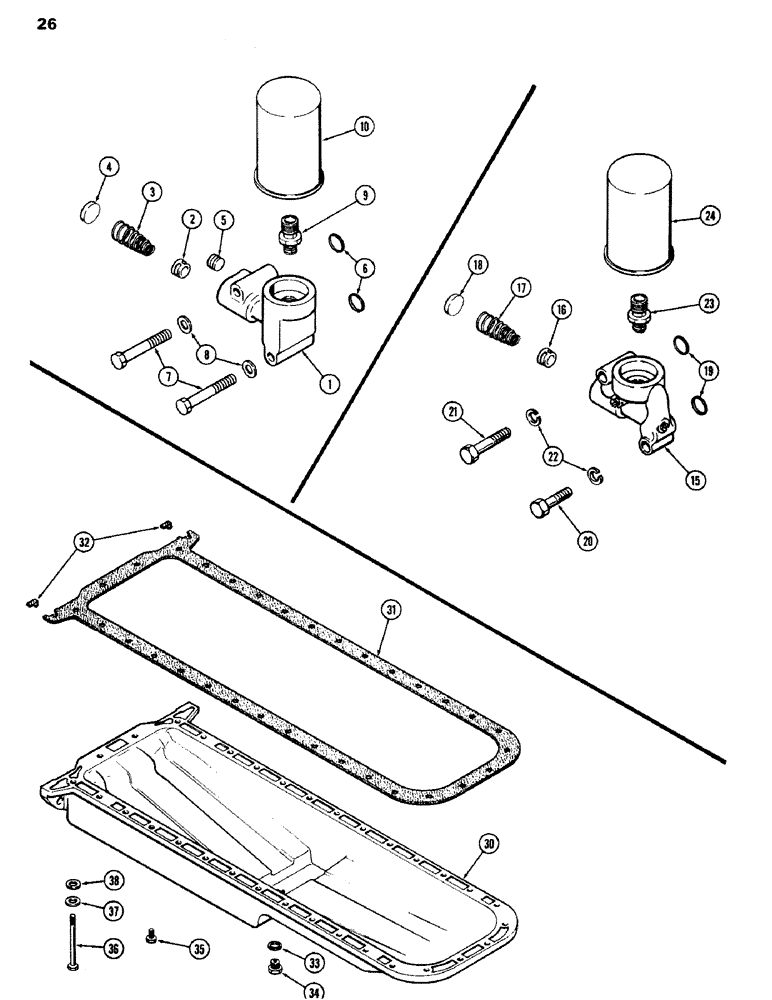

Запчасти Case IH 970 (026) - OIL FILTER, (401B) DIESEL ENGINE (02) - ENGINE

1

A65849

BASE

ASSY - oil filter (Replaces A58830), Includes Ref. 2 - 5

1шт.

2

A21090

VALVE

Relief, filter

1шт.

3

A58669

SPRING

Relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

Relief valve, 1-17/64" cup

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16" x 1-5/16" x 17/64"

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-33

WASHER,1/2"

(17/32 x 1-1/16 x 3/32")

2шт.

9

A58831

ADAPTER

, Serial Range: Element-base

1шт.

10

A58758

FILTER, ELEMENT

ELEMENT, FILTER Oil

1шт.

15

A58830

BASE

ASSY - oil filter (Order A65849), Includes Ref. 16 - 18

1шт.

16

A21090

VALVE

Relief, filter

1шт.

17

A58669

SPRING

Relief valve

1шт.

18

41-1020

PLUG,Cup, 1 1/4"

Relief valve, 1-17/64" cup

1шт.

19

A64434

O-RING,0.93" ID x 1.142" x 0.106"

Filter base to block

2шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

21

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

BOLT - 1/2 x 3-1/4" N.C. hex.

1шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

A58831

ADAPTER

, Serial Range: Element-base

1шт.

24

A58758

FILTER, ELEMENT

ELEMENT, FILTER Oil

1шт.

30

A63907

PAN

Oil (Replaces A58850)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figures 29 and 29B)

1шт.

32

REF

INSTRUCTION

GASKET - oil pan corners (See Figures 29 and 29B)

2шт.

33

A58608

GASKET

Oil pan drain plug

1шт.

34

A14280

PLUG

Oil pan drain

1шт.

35

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. hex., oil pan

28шт.

36

A57436

BOLT

3/8 x 5-3/4" N.C. hex., spec., oil pan

2шт.

37

A22317

WASHER

Copper, 25/64 x 11/16 x 18 ga., oil pan

2шт.

38

A7085

WASHER

Copper, 25/64 x 9/16 x 18 ga., oil pan

2шт.
