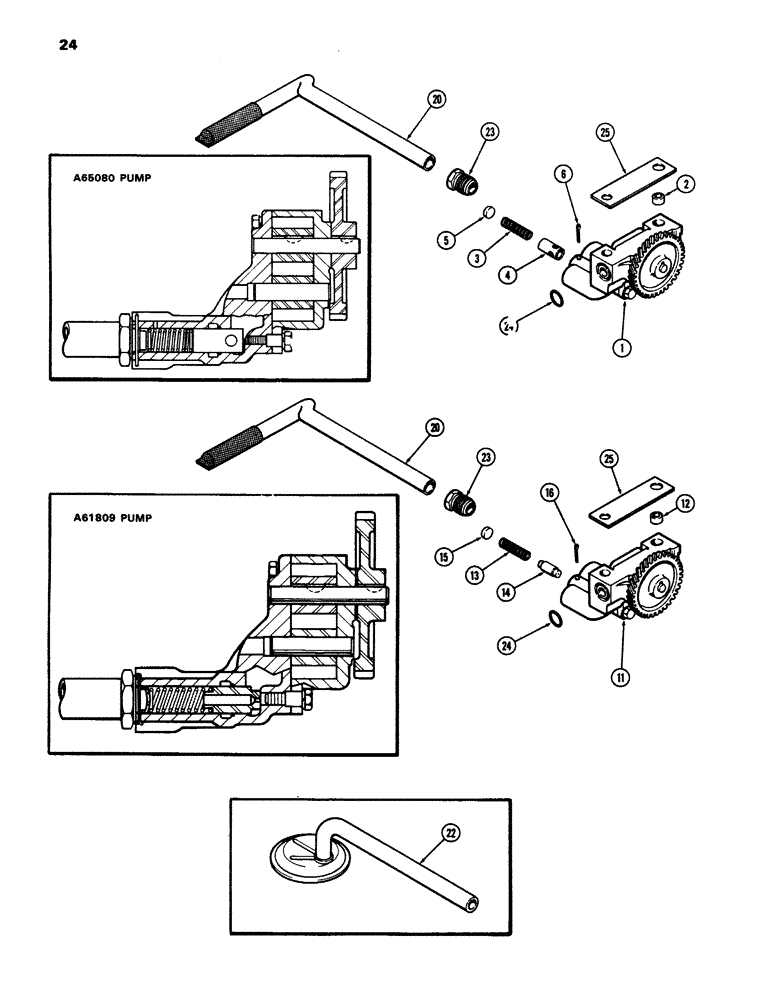

Запчасти Case IH 970 (024) - OIL PUMP, (401B) DIESEL ENGINE (02) - ENGINE

1

A65080

PUMP

ASSY. - oil (Replaces A61809), Includes: Ref. 2 - 6

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 45/64" cup

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

11

A61809

PUMP

ASSY. - oil (Order A65080), Includes: Ref. 12 - 16

1шт.

12

A58915

SLEEVE

- pump body

1шт.

13

A59111

SPRING

- relief valve

1шт.

14

A34992

PISTON

VALVE - relief

1шт.

15

A34951

X

PLUG - 45/64" cup

1шт.

16

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

20

A66174

TUBE

ASSY. - oil suction, w/screen (Replaces A58847)

1шт.

22

A58847

SCREEN

TUBE ASSY. - oil suction, w/screen (Order A66174)

1шт.

23

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare

1шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O"RING - pump to block (Replaces A58602)

1шт.

25

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
